CNC Lathe Machine High Quality Economical Torno CNC Lathe From China
1, The Torno CNC lathe usage MITSUBISHI M70A system ,high precision,high stability and easy operate .
2, The Torno CNC lathe can be flexible add milling power head in side , The facing head can be manufacturing complicated parts .
3, The Torno CNC lathe could change three jaw chuck,improve single parts processing .
4, The Torno CNC lathe can be choice the oil film feeder ,achieved nobody unattended
| SPECIFICATIONS FOR CNC machine lathe model BX42C | ||||
| Description | unit | BX32C/42C | ||
| Machining Capacity | Clamping diameter | mm | 3~42(Collet) | |
| mmm | 100(Chuck) | |||
| Max. machining length | mm | 100 | ||
| Max swing diameter | mm | 270 | ||
| Positioning accuracy | mm | 0.003 | ||
| Repeated positioning accuracy | mm | 0.003 | ||
| Spindle end face runout | mm | 0.002 | ||
| Spindle radial runout" | mm | 0.002 | ||
| Spindle Indexing angle | mm | Stepless indexing | ||
| Machining parameter | Spindle speed | mm/min | 6000 | |
| power-driven tool speed | mm | 4000 | ||
| X-axis travel | mm | 400 | ||
| Z-axis travel | mm | 180 | ||
| Length of compound rest | mm | 435 | ||
| Tools size | mm | 16*16/12*12 | ||
| Rapid traverse speed | m/min | 32 | ||
| Number of controllable axis | axis | 4 | ||
| Electric motor | Spindle | kw | 5.5/7.5 | |
| Power-driven tool | kw | 0.75 | ||
| X,Z axis | kw | 1.5 | ||
| Cooling oil pump power | kw | 0.25 | ||
| Lubricating oil pump | kw | 0.1 | ||
| Power and others | Net weight | kg | 1850 | |
| Rated capacity | KVA | 13KVA/14 | ||
| Air pressure | Mpa | 0.6-0.7 | ||
| Air flow | NL/min | 14 | ||
| Cutting oil Tank volume | L | 200 | ||
| Machine dimension(L*W*H) | mm | 2000*1500*1700 | ||
| NC Unit | MITSUBISHI M70B | |||
| Controlled axes | axis | 4 | ||
| Axis | X/Z/Y/C | |||

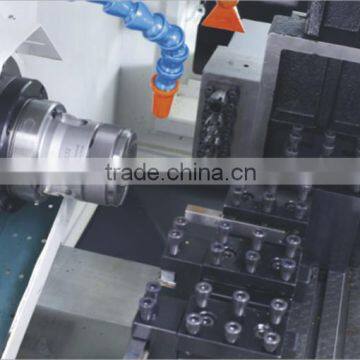

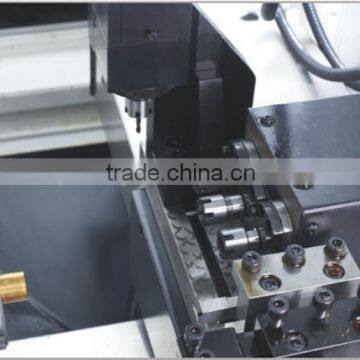

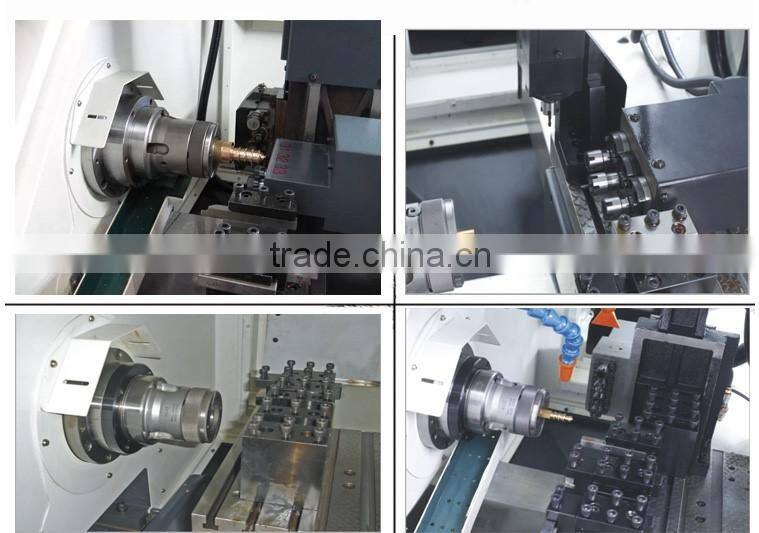

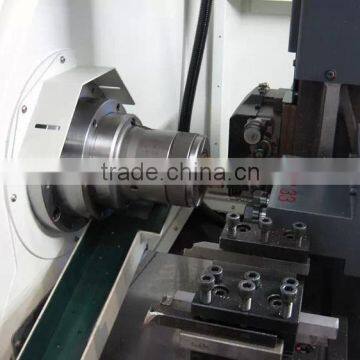

Our Torno CNC lathe pictures
1. The Torno CNC lathe contains mechatronics design, beautiful exterior, and mature product mix. It is easy to operate, so that one worker can operate multiple lathes at the same time.
2. The Torno CNC lathe bed is made of heavy casting. The heavy casting have went through at least twice aging quality tests and ultrasonic frequency quenching. The integral type casting make the machine tool harder, so that the lathe is more stable.
3. The Torno CNC lathe X, Z axes contains with high-precision rolling screws mandrel, make a better dynamics and higher precisions.
4. The Torno CNC lathe double row cylindrical roller bearings and Double direction thrust angular contact bearing are used in principal axis. These precise bearings with special design for the main axial of the machinery equipment. These gives a optimized combination of high-precision, high loads and good running speed; moreover, it is more durable.
The Torno CNC lathe package : one set in one woodencase .our packge size can be custom .
TORNO CNC LATHE GUARANTEE &AFTER-SVRVICE:
1.Guarantee for one year
2.24-hour technical support by email or on line
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
5. Provide Engineers oversea training for our customers
6.We could provide OEM .
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries, Our main products CNC lahte ,machine center ,bar feeder ,atuo lathe ,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
