China manufacturer Yixing BX42C High Precision 4 axis cnc lathe machine
1, Yixing BX42C high precision 4 axis cnc lathe machine has Mitsubishi M70B control system, higher precision, good stability.
2, Yixing BX42C high precision 4 axis cnc lathe machine has flexible side milling power head, facehead, processing complex parts.
3, Yixing BX42C high precision 4 axis cnc lathe machine has replacable three jaw chuck, increase single parts processing range.
4, Yixing BX42C high precision 4 axis cnc lathe machine has unattended oil film feeder machine is for option.
Our Precision CNC Lathe Machine parameter
| Description | BX42C | ||||
| Machining Capabiltiy | Clamping Diameter | 3~32mm/3~42mm(Collet) | |||
| 100(Chuck) | |||||
| Max. machining length | 100mm | ||||
| Max. swing diameter | 270mm | ||||
| Positioning accuracy | 0.003mm | ||||
| Repeated positioning accuracy | 0.003mm | ||||
| Spindle end face runout | 0.002mm | ||||
| Spindle radial runout | 0.002mm | ||||
| Spindle indexing angle | Stepless indexing | ||||
| Machining parameter | Spindle speed | 6000rpm | |||
| power-driven tool speed | 4000rpm | ||||
| X-axis travel | 400mm | ||||
| Z-axis travel | 180mm | ||||
| Length of compound rest | 435mm | ||||
| Tools size | 16mm*16mm/12mm*12mm | ||||
| Rapid traverse rate" | 32m/min | ||||
| Number of controllable axes | 4 axes | ||||
| Electric motor | Spindle | 5.5/7.5kw | |||
| Power-driven tool | 400W/0.75KW/700W | ||||
| X,Z axis | 1.5kw | ||||
| Cooling oil pump | 0.25kw | ||||
| Lubricating oil pump | 0.1kw | ||||
| Power and others | Machine weight | 1850kg | |||
| Total power capacity | 14KVA/14KVA | ||||
| Air pressure | 0.6-0.7Mpa | ||||
| Air flow | 14NL/min | ||||
| Cutting oil Tank volume | 200L | ||||
| Machine dimension(L*W*H) | 2000*1500*1700mm | ||||
| NC System | NC UNIT | MITSUBISHI M70B | |||
| Controlled axes | 4 axes | ||||
| AXIS | X/Z/Y/C | ||||
| Minimun setting unit | 0.001mm | ||||
| Minimum movement unit | 0.001mm | ||||
| Maximum command value | ± 8 digits | ||||
| interpolation | linear and circular ,conical,spiral | ||||
| Rapid traverse rate | 32m/min | ||||
| Cutting feed rate | 1-10,000mm/min | ||||
| Spindle override | 0-120%,10% /Part | ||||
| Dwell time | G04 0-99999.99 | ||||
| Rapid traverse override | F20,F25,F50,F100% | ||||
| ABS/INC command | X,Y,Z:Absolute;U,V,W:Incremental | ||||
| Tool offset | ± 6 Digits | ||||
| Tool offset sets | 64 sets | ||||
| LCD/MDI | 8.4" color TFT | ||||
| Language | English/Japanese/Chinese | ||||
| Storage capacity | 500 KB | ||||
| I/O interface | RS 232C | ||||
| Miscellaneous function | M5 Digits | ||||
| Spindle function | S5 Digits | ||||
| Tool function | T13 Digits | ||||

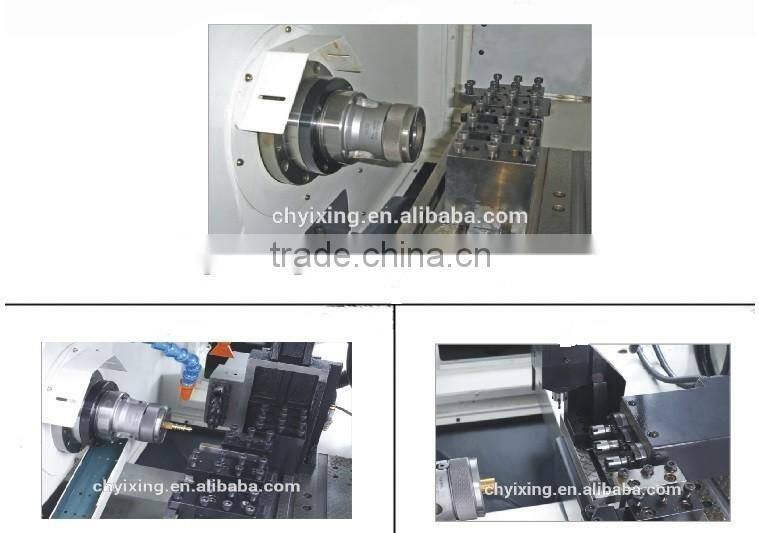

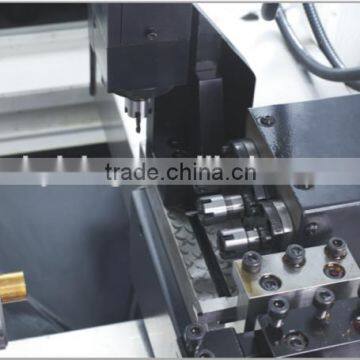

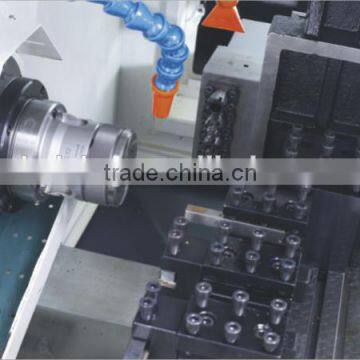

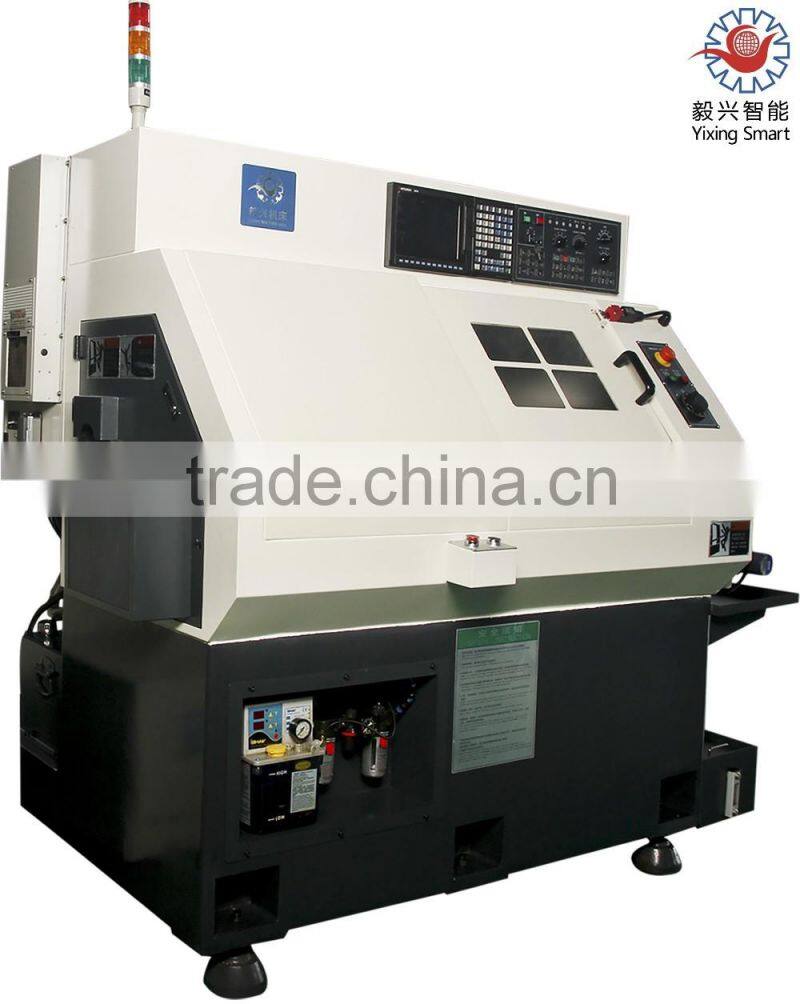

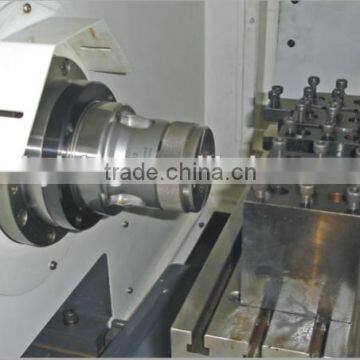

Our Precision CNC Lathe Machine Lathe pics
Yixing Machinery Co.,LTD,It was established in 2005, The factory was located in Chinese famous province – Hubei Province,And it have bulid Research and development,procurement and sales center in Shanghai.
Company specialize in automotive, marine, medical, communications, electronics, mold and other industries,Always provide a lot of efficient processing solutions , precision, stability is an industry leader, and made a number of national patents.
The company has always adhere to the "customer-centric" philosophy, adhere to the "customers interests is first" principle, as the most professional, most intimate workshop equipment.
