Help CenterComifo Duct Full Automatic Producing Line III
Related Products
Specifications
1.Duct full automatic producing line2.Stable and reliable performance
3.PLC control, touchscreen
4.Mitsubishi servo motor

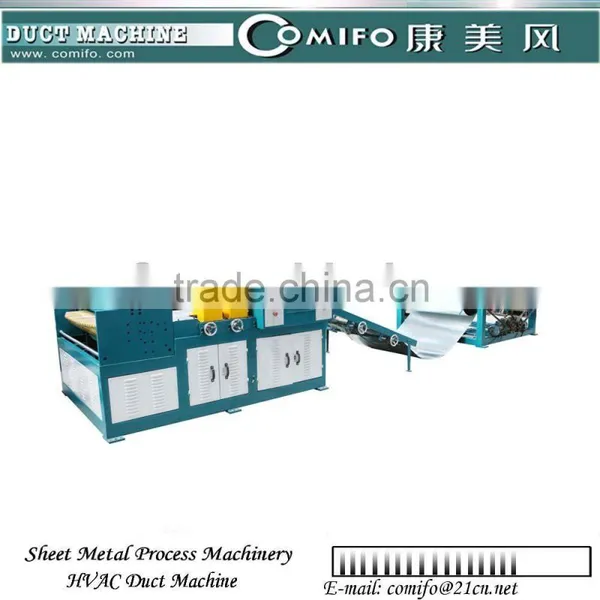

Comifo Duct Manufacture Compact Line III also called duct full automatic producing line, duct auto line, duct manufacturing line
Standard Features:
√ Twin-motor driven dual-decoiling, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
√ Straightening/flattening -Air pressure controlled six(6) rolls straightenerNo adjustment required when changing from 18 to 27 gauge (0.4-1.2mm) material
√ Air pressure controlled ring type beading rolls with five beading rings-optional by remove beading rings or uplift the beading rolls
√ Accurate PLC control unit, Preset cutting size , touchscreen-easy operate
√ 0-18m/min feeding speed,fast acting back gauge,7 seconds per cutting for a 1m length sheet metal
√ Preset available profiles and folding style, notching size,punching size,cutting dimension on touchscreeneasy operate
√ This auto line will process 4or 5galvanized steel into blank for plasma cutting machine or notch blank for L section or full ductwork
√ Bends right angle lock
Capabilities:
√ Alternative width for 4(1300mm) or 5(1550) material
√ Thickness: 18-27ga (0.4-1.2mm)
√ Shearing tolerance of ±0.5mm
√ Hydraulic folding diagonal tolerance of ±0.5mm
√ 0-54FPM (0-18m/min) feeding speed,fast acting back gauge
Stations: coil-straightening-beading- punching square -notching-folding-shearing
Model No. |
Max Coil Width |
Thickness Range |
Speed |
Shearing Tolerance |
Diagonal Tolerance |
CAL3-1.2x1300 |
1300mm
|
0.4-1.2mm 18-30ga
|
0-18m/min 0-59FPM |
±0.5mm |
±0.5mm |
CAL3-1.2x1600 |
1600mm
|
Work Flow:
More Detailed Pictures:
