Comifo Tube Former III(B)

Specifications

  Comifo Duct Manufacture Compact Line III (B) also called ducting machine,tube former, steel tube forming machine

Standard Features:

√  Twin-motor driven dual-decoiling, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)

√  Straightening/flattening -Air pressure controlled six(6) rolls straightenerNo adjustment required when changing from 18 to 27 gauge (0.4-1.2mm) material

√  Air pressure controlled ring type beading rolls with five beading rings-optional by remove beading rings or uplift the beading rolls

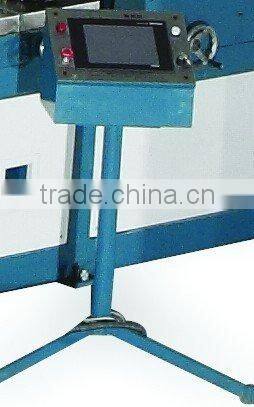

√   Accurate PLC control unit, Preset cutting size , touchscreen-easy operate

√   0-18m/min feeding speed,fast acting back gauge,7 seconds per cutting for a 1m length sheet metal

√   Preset available profiles and folding style, notching size,punching size,cutting dimension on touchscreeneasy operate

√   This auto line will process  4or 5galvanized steel into blank for plasma cutting machine or notch blank for L section or full ductwork

√   Bends right angle lock

Capabilities:

√ Alternative width for 4(1300mm) or 5(1550) material

√ Thickness: 18-27ga (0.4-1.2mm)

√  Shearing tolerance of ±0.5mm

√   Hydraulic folding diagonal tolerance of ±0.5mm

√    0-54FPM (0-18m/min) feeding speed,fast acting back gauge

Besides decoiler, straightening, beading, punching square, notching, folding and shearing, punches for cross-tie holes and duplex drive cleat/S cleat forming rollers are available in Auto Line III (B).

Stations: coil-straightening-beading-cross-tie holes punching-punching square-notching-duplex drive cleat/S cleat forming-folding-shearing

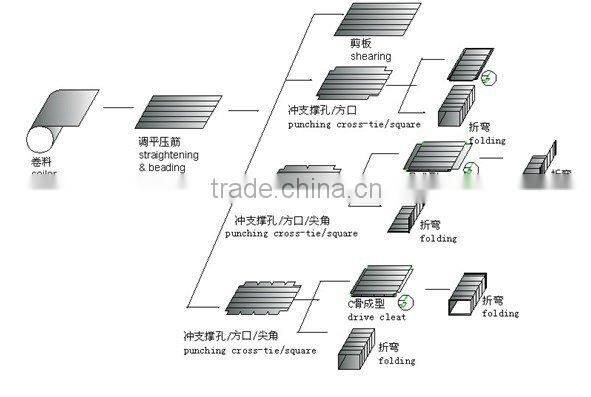

 Work Flow

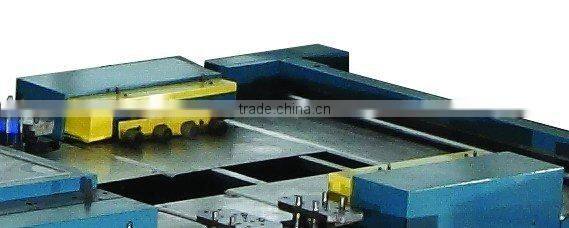

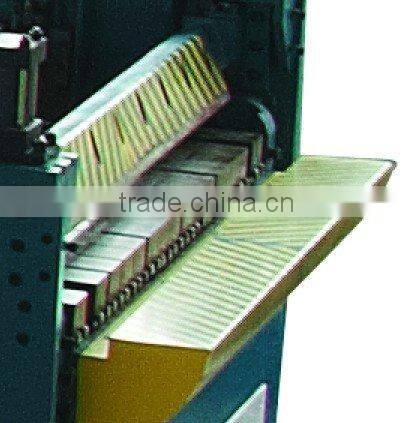

 More Detailed Pictures:
