LV3080 Cheapest and Smallest 2D Barcode
Scanner for Mobile POS, PDA and Smartphone
Introduction:
- Supports all mainstream 1D as well as PDF417, QR code, data matrix and GS1-data bar TM (RSS) (RSS-limited, RSS-14, RSS-14 stacked and RSS-expand)

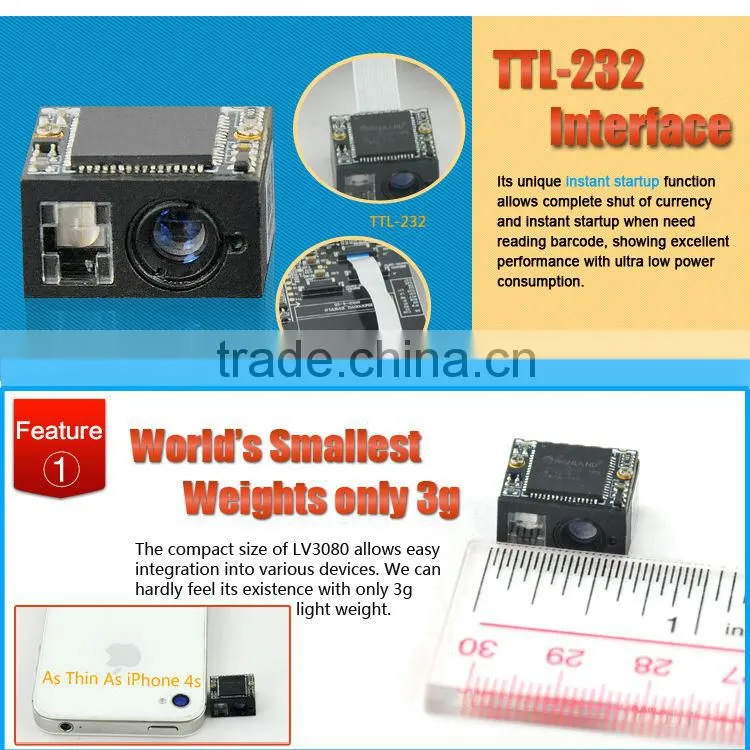

- Weighs only 3 grams, lightweight engine fits easily into even most space-constrained equipment such as data collectors, meter readers, ticket validators and PDAs

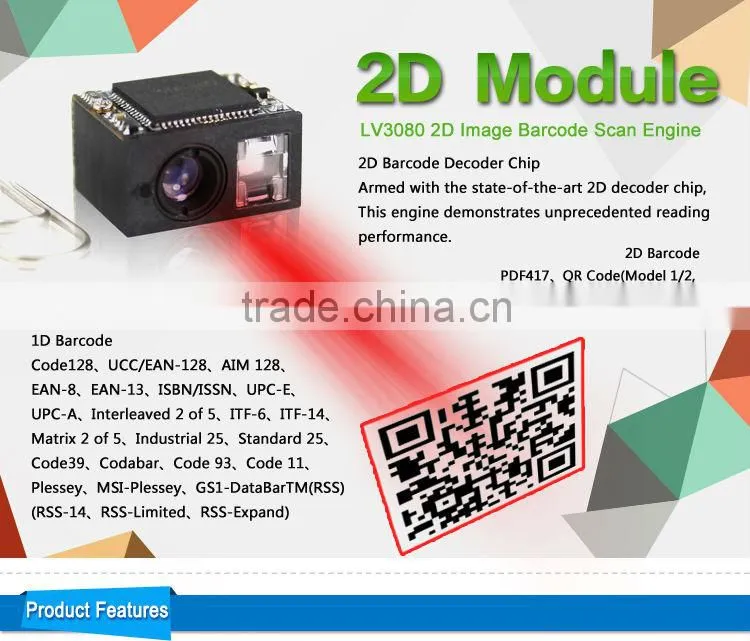

- 2D barcode decoder chip
The engine armed with the state-of-the-art 2D barcode demonstrates unprecedented reading performance.
- Two-in-one design

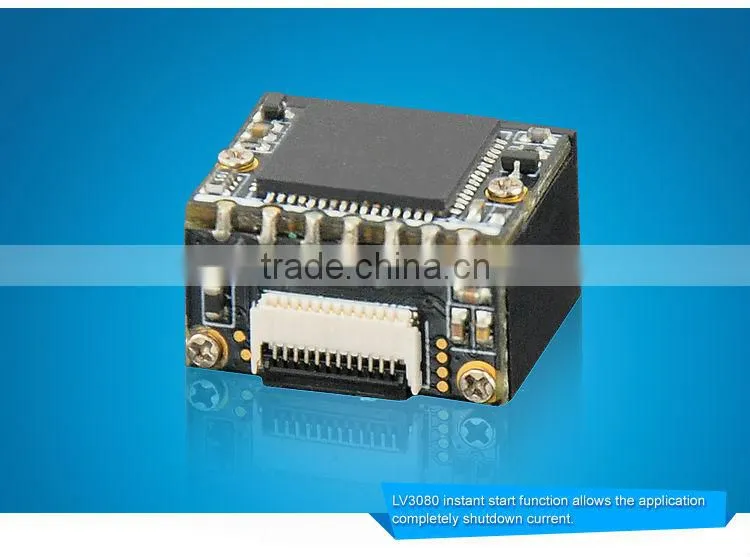

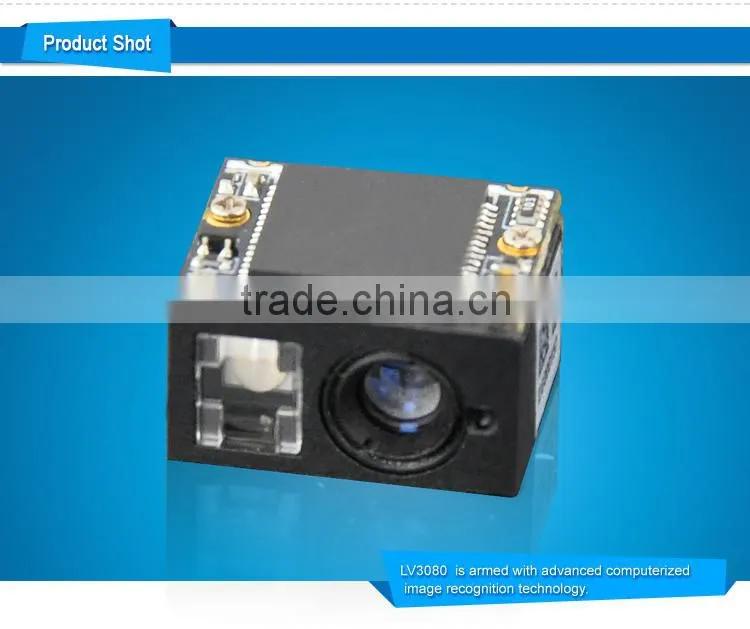

Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight and easy for integration.

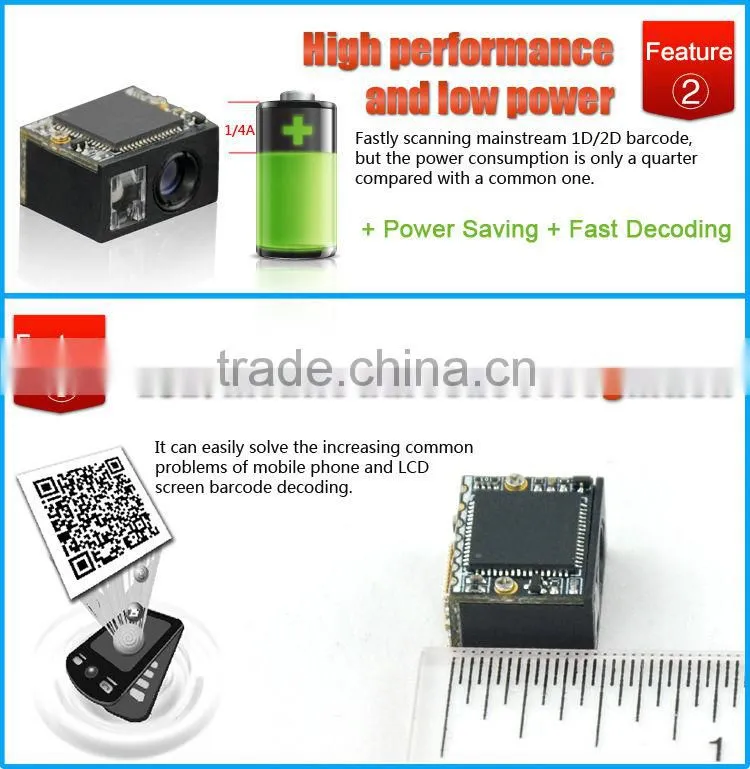

- High Performance & Ultra-Low Power Consumption
The engine can read most 1D and 2D barcodes with a power consumption only one fourth that of a traditional engine.
- All-Round Scanning Capability
It can read barcodes on virtually any medium - paper, plastic cards, mobile phones and LCD displays.

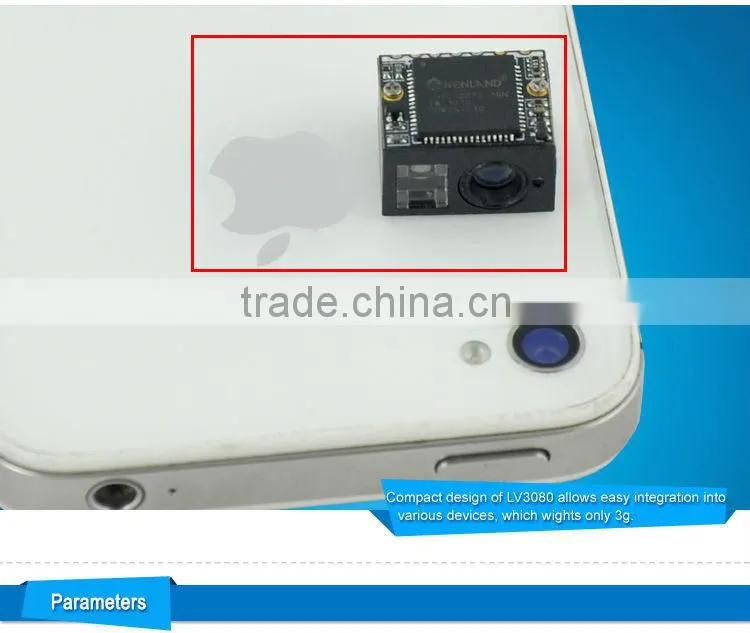

Here is the contrast between our module LV3080 and Iphone 5S
| Performance | |
| Image Sensor | 640x480 CMOS |
| Illumination | Red LED 625 ±10Nm |
| Symbologies |
2D: PDF417, QR code (QR1, QR2, micro QR), data matrix (ECC200, ECC000, 050, 080, 100 and 140)
|
| Reading Precision | ≥5mil |
| Depth of Field |
UPC-A: 55-245mm (13mil) PDF417: 50-155mm (6.67mil) Data matrix: 45-160mm (10mil) QR code: 45-235mm (20mil) |
| Symbol Contrast | ≥30% |
| Scan Angle |
Roll: 360° Pitch: ±50° Skew: ±50° |
| Field of View |
Horizontal: 36° Vertical: 23° |
| Mechanical/Electrical | |

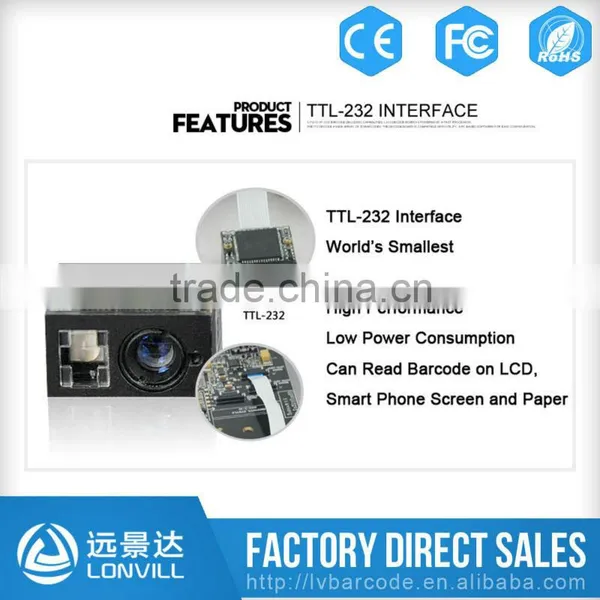

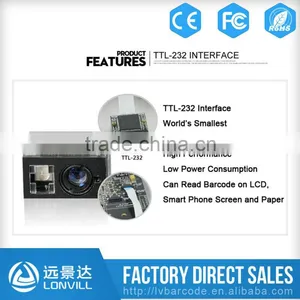

| Interface | TTL-232 |
| Operating Voltage | 3.0-3.6 VDC |
| Current at 3.3V DC |
Operating current: 120mA Idle current: 94mA Sleep current: 40mA |

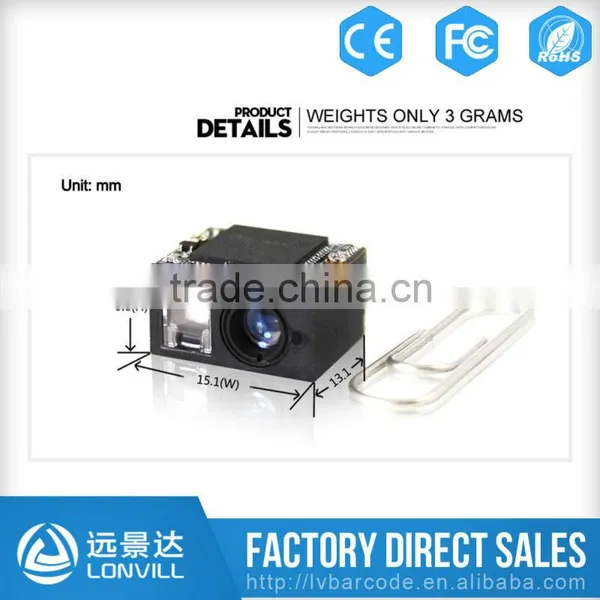

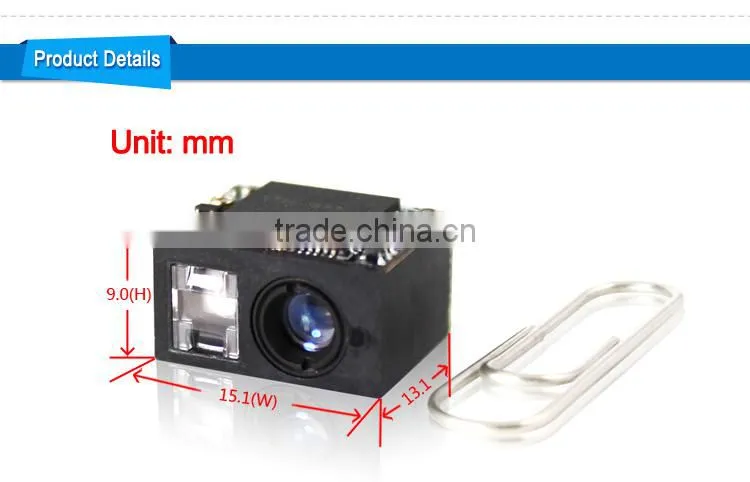

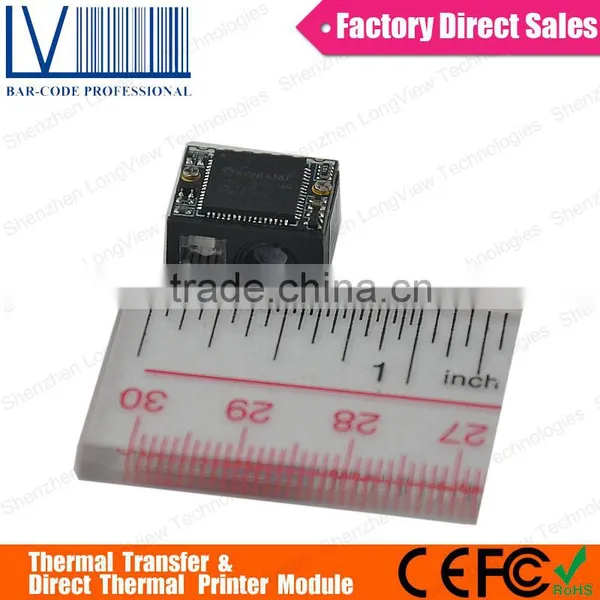

| Dimensions | (W) 15.1 x (D) 13.1 x (H) 9.0mm |
| Weight | 3g |
| Environmental | |
| Operating Temperature | -20 to +60°C |
| Storage Temperature | -40 to +85°C |
| Humidity | 5 to 95% RH (non-condensing) |
| Ambient Light | 0-100,000 lux (natural light) |
| Certificate | CE, FCC, RoHS |
