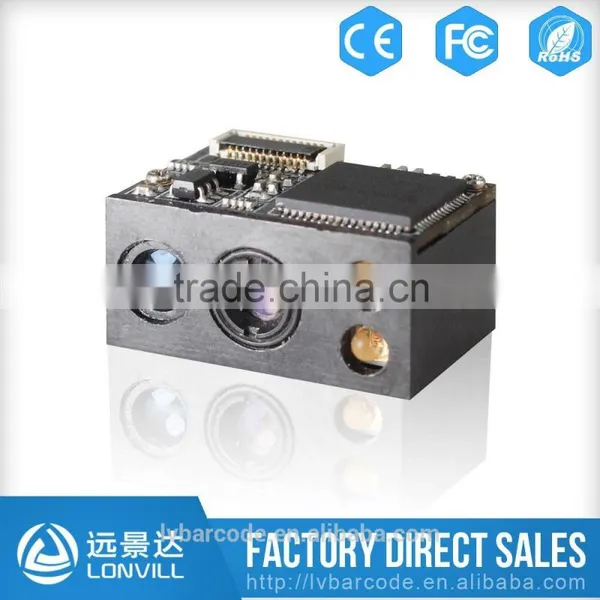

LV3096 2D android wireless barcode scanner module 955SE
Advantages:

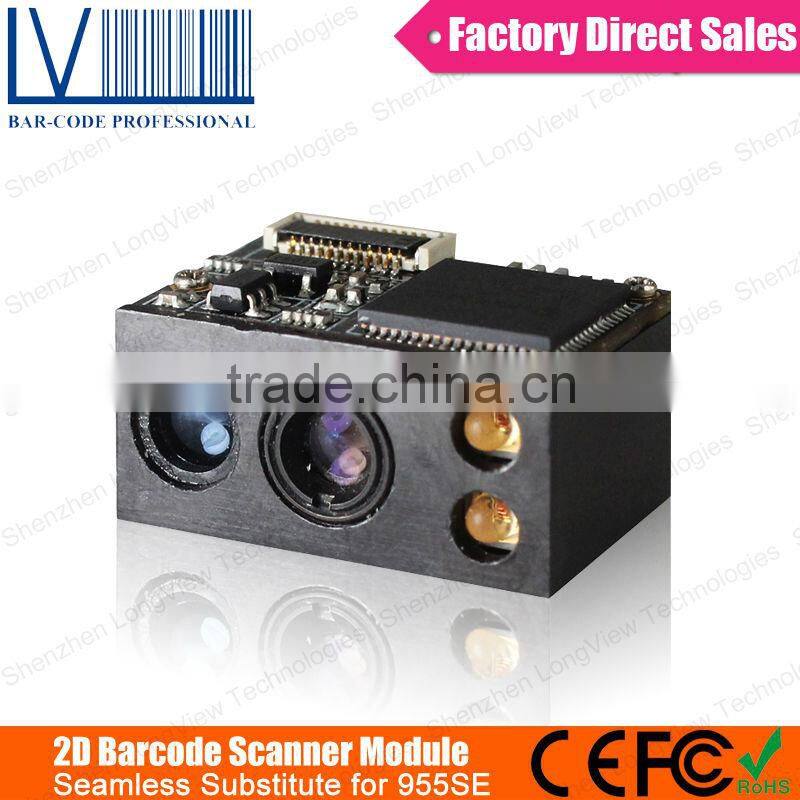

l Seamless substitute for Motorola 955SE for their same bottom screw hole and size.
l Upgrade your scanning application from 1D to 2D directly.

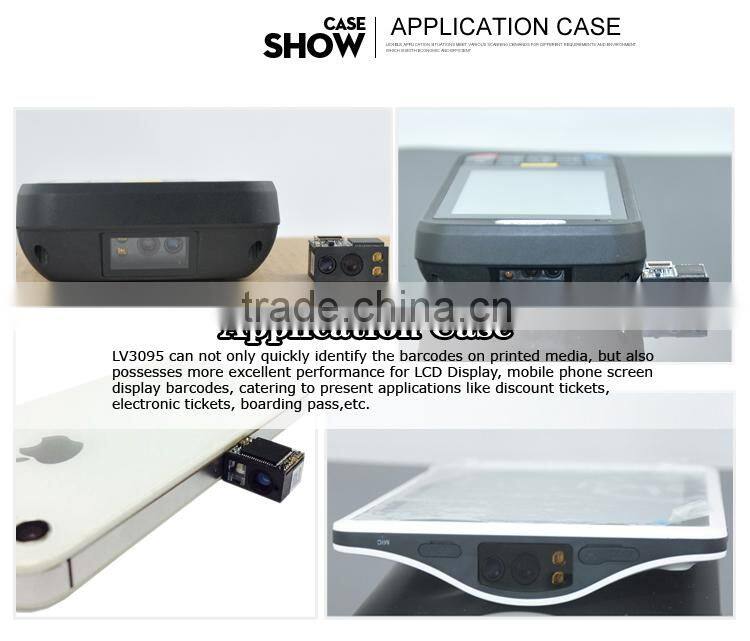

l LV3095 is able to scan mobile phone screen 2D barcode
l No need to change the mold, saving your huge costs to remake the mold
l New starter to prepare for the brand new era of 2D barcode.
Features:
l 2D Barcode Decoder Chip:
The engine armed with the state-of-the art 2D barcode demonstrates unprecedented reading performance.
l Two-In-One Design:

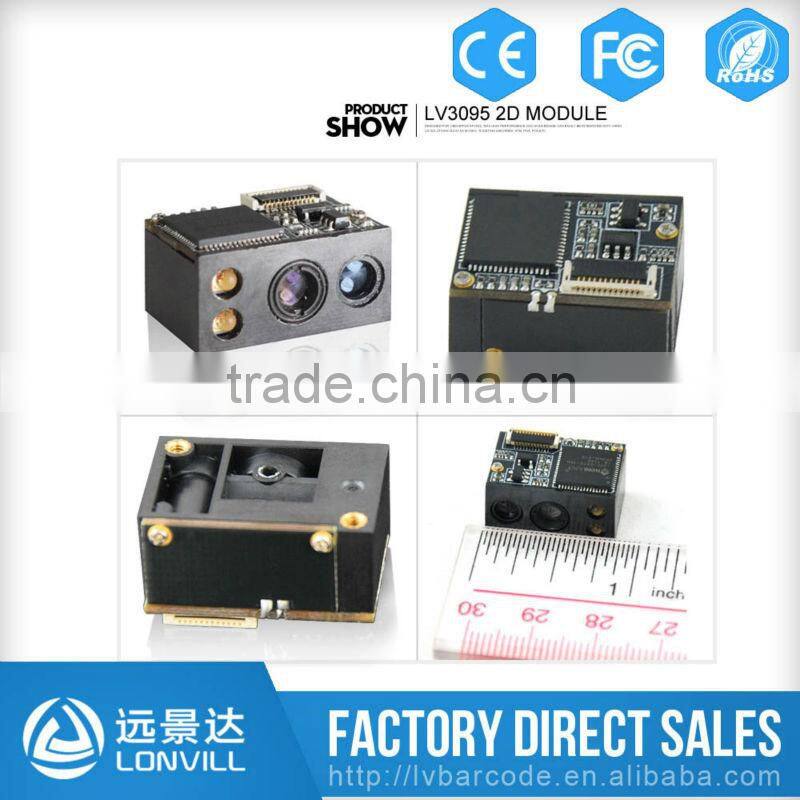

Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight and easy for integration.
l High Performance & Ultra-Low Power Consumption:
The engine can read most 1D and 2D barcodes with a power consumption only one fourth that of a traditional engine.
l All-Round Scanning Capability:
It can read barcodes on virtually any medium paper, plastic cards, mobile phones and LCD displays.
Specification:
Performance |
|
Image Sensor |
752 ×480 CMOS |
Illumination |
Red LED 625 ±10 nm |
|
2D
Symbologies 1D |
PDF417QR Code(Model 1/2, Micro),Data Matrix (ECC200,ECC000,050,080,100,140)
Code 128 ,EAN-13,EAN-8 ,Code 39,UPC-A,UPC-E ,Codabar ,Interleaved 2 of 5,ISBN/ISSN ,Code 93 ,UCC/EAN- 128 ,GS1 Databar,etc |
Precision |
≥ 5mil |
|
UPC-A (13mil) Depth of Field Code 39 (20mil) PDF 417 (6.67mil) Data Matrix (10mil) QR Code (20mil) |
55mm -270mm 50mm -340mm 70 mm-165 mm 55 mm -180 mm 35 mm -275mm |
Symbol Contrast |
≥ 30% |
Scan Angle** |
Roll: 360; Pitch: ±50; Skew: ±50° |
Field of View |
Horizontal 36°; Vertical 23° |
Mechanical/Electrical |
|
Interface |
TTL - 232 ,USB(HID-KBW,Virtual Serial Port),DATAPIPE ,HID- POS) |
Operating Voltage |
3. 0 ~ 3.6 VDC |
|
Operating Current Current @ 3.3 VDC Sleep Current |
230 mA
40mA |

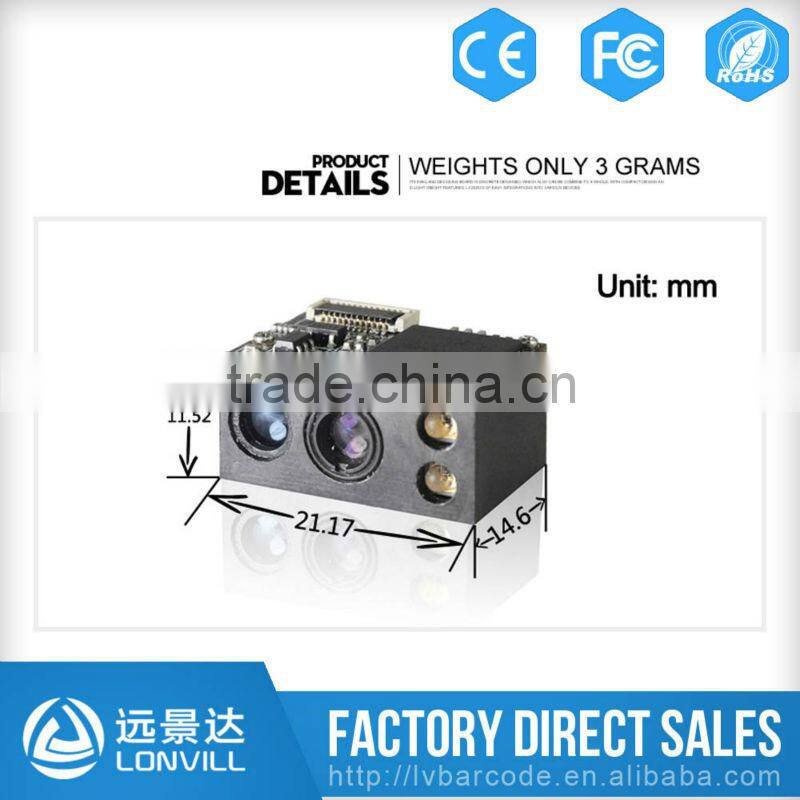

Dimensions |
21.17(W) ×14.6 (D) ×11.52(H) mm |
Weight |
4.4g |
Environmental |
|
Operating Temperature |
- 20°C - +60 °C |
Storage Temperature |
- 40°C - +8 0 °C |
Humidity |
5% - 95% (non-condensing) |
Ambient Light |
0 ~ 100000 lux (natural light) |
Accessories |
|
|

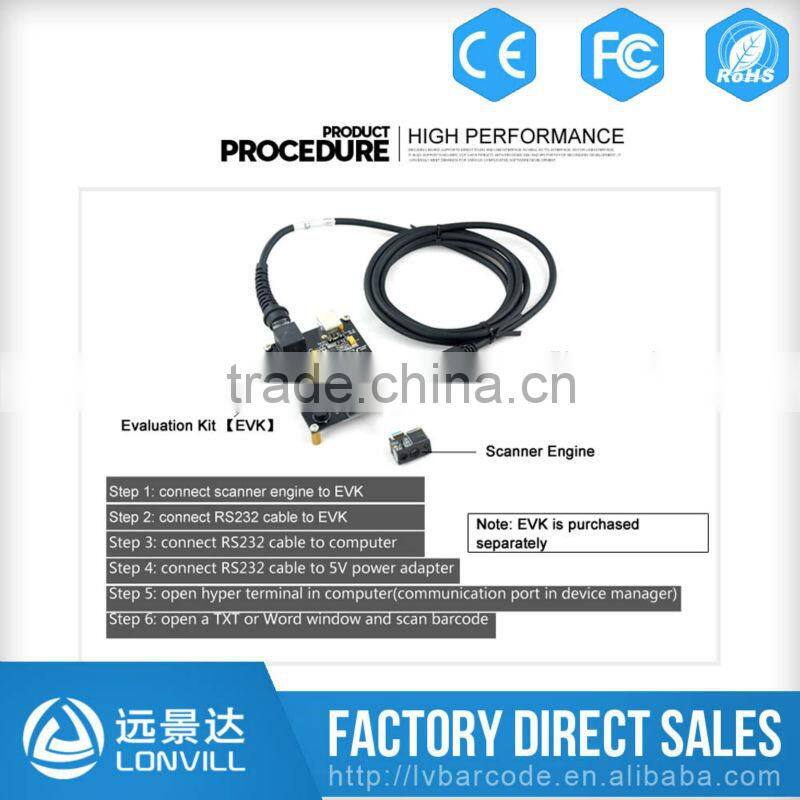

EVK3000 |
Software development board for the LV3095, equipped with a trigger button, beeper and RS-232 & USB interfaces. |
|
RS-232 Cable Cables USB Cable |
Used to connect the EVK3000 to a host device; equipped with a power connector. Used to connect the EVK3000 to a host device. |
|
Power Adaptor
|
Used to provide power for the EVK3000. Output: DC5V, 2A; Input: AC100~240V, 50~60Hz |
