Product Details
Products Status: | Stock | Type: | Barcode Scanner | Scan Element Type: | CMOS |
Colour Depth: | 32 Bit | Interface Type: | Other, TTL - 232 ,USB(HID-KBW,Virtual Serial Port),DATAPIPE ,HID- POS) | Max Paper Size: | A4 |
Optical Resolution: | 2500 | Scan Speed: | up to 300 scans/sec | Brand Name: | Longview |
Model Number: | LV3095 | Place of Origin: | China |
Product Description
LV3095 cheap 2D wireless barcode scanner module for garment batch capture
Advantages:

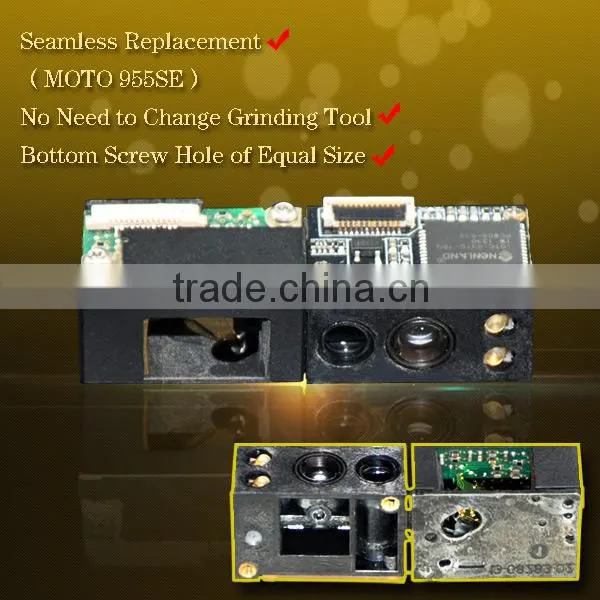

l Seamless substitute for Motorola 955SE for their same bottom screw hole and size.
l Upgrade your scanning application from 1D to 2D directly.
l LV3095 is able to scan mobile phone screen 2D barcode
l No need to change the mold, saving your huge costs to remake the mold
l New starter to prepare for the brand new era of 2D barcode.
Features:
l 2D Barcode Decoder Chip:
The engine armed with the state-of-the art 2D barcode demonstrates unprecedented reading performance.
l Two-In-One Design:
Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight and easy for integration.
l High Performance & Ultra-Low Power Consumption:
The engine can read most 1D and 2D barcodes with a power consumption only one fourth that of a traditional engine.
l All-Round Scanning Capability:
It can read barcodes on virtually any medium paper, plastic cards, mobile phones and LCD displays.
Specification:
Performance |
|
Image Sensor | 752 ×480 CMOS |
Illumination | Red LED 625 ±10 nm |
2D
Symbologies 1D | PDF417QR Code(Model 1/2, Micro),Data Matrix (ECC200,ECC000,050,080,100,140)
Code 128 ,EAN-13,EAN-8 ,Code 39,UPC-A,UPC-E ,Codabar ,Interleaved 2 of 5,ISBN/ISSN ,Code 93 ,UCC/EAN- 128 ,GS1 Databar,etc |
Precision | ≥ 5mil |
UPC-A (13mil) Depth of Field Code 39 (20mil) PDF 417 (6.67mil) Data Matrix (10mil) QR Code (20mil) | 55mm -270mm 50mm -340mm 70 mm-165 mm 55 mm -180 mm 35 mm -275mm |
Symbol Contrast | ≥ 30% |
Scan Angle** | Roll: 360; Pitch: ±50; Skew: ±50° |
Field of View | Horizontal 36°; Vertical 23° |
Mechanical/Electrical |
|
Interface | TTL - 232 ,USB(HID-KBW,Virtual Serial Port),DATAPIPE ,HID- POS) |
Operating Voltage | 3. 0 ~ 3.6 VDC |
Operating Current Current @ 3.3 VDC Sleep Current | 230 mA
40mA |
Dimensions | 21.17(W) ×14.6 (D) ×11.52(H) mm |
Weight | 4.4g |
Environmental |
|
Operating Temperature | - 20°C - +60 °C |
Storage Temperature | - 40°C - +8 0 °C |
Humidity | 5% - 95% (non-condensing) |
Ambient Light | 0 ~ 100000 lux (natural light) |
Accessories |
|
EVK3000 | Software development board for the LV3095, equipped with a trigger button, beeper and RS-232 & USB interfaces. |
RS-232 Cable Cables USB Cable | Used to connect the EVK3000 to a host device; equipped with a power connector. Used to connect the EVK3000 to a host device. |
Power Adaptor
| Used to provide power for the EVK3000. Output: DC5V, 2A; Input: AC100~240V, 50~60Hz |
