2015 NEW Portable Multifunctional Bluetooth Skimming Card Reader for Phone

Specifications

2014 NEW Multifunctional Bluetooth Mobile UHF RFID Reader
1.HF/UHF RFID
2.1D/2D Barcode
3.Power Bank
4.3000mA Battery

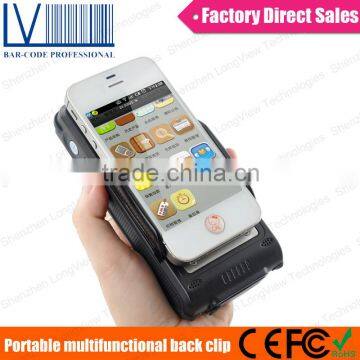

2015 NEW Multifunctional Bluetooth

Mobile UHF RFID Reader, 1D 2D Barcode Readable

World’s First Portable Combined Multifunctional Back Clip

Advantages:

• HF/UHF RFID
• 1D/2D Barcode
• Multifunctional Design
• Power Bank
• Bluetooth Communication
• Dust and Water Proof
• Long Lifetime & Low Upgrading Cost
• Scan Button in Both Sides
• Various Reading Prompt Mode
• Fit for All Phones
• With Adjustable Snaps
• IP 54, Dust Proof and Long Duration
• UHF RFID Reader
•
•

• Weight	240g
  Dimension	138 x 66 x 31mm(Thin: 31, Thick: 34)
  charging and discharging parameter	Input	5.0±0.25V DC
  	output	5.0±0.25V DC
  	nominal capacity	3000mAhlithium polymer battery (>500 charge cycles)
  	Standard Charge Circuit	<1A
  	Standard Charging method	CV(constant voltage5.0V)charging
  	charging time	≤6 hours
  	max charging current	<1A
  	max discharge current	<1A
  	end-off voltage	3.3V
  Interface	Bluetooth HID & SPP
  1D Infrared	Reading Mode	CCD
  	Resolution	2500
  	Scan Rate	300 scan/sec
  	Symbologies	Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar,ITF-14
  	Precision	≥ 5mil(under the condition of PCS: 0.9,Code 39)
  	Scan Distance	Code128(10mil):30mm-285mm; Code39(5mil):90mm-195mm; Code39(10mil):50mm-325mm; EAN-13(10mil):60mm-265mm; EAN-13(15mil):65mm-350mm;
  	sensitivity	incline	±65°@0°Roll and 0° Skew
  		rotate	±30°@0°Pitch and 0°Skew
  		declination	±60°@0°Roll and 0° Pitch
  	outdoor scanning	proprietary technology-- able to read the code bar under sun light
  	current	maximum current	100mA
  		standby current	45mA
  RFID(optional)	Frequency	13.56MHz
  	Reading Mode	reading-writing  or auto-induction just for Reading
  	Supported Standards	ISO14443A
  	Working distance	>30mm
  	working current	<100mA
  	Max Power Dissipation	0.33W
  Environment	Operating temperature	0℃~45℃
  	Storage Temperature	-10℃~ +45℃
  	Humidity	5% - 95%  ( Non-condensing )
  Clip	LED display	4LED to show charging and discharging active status and electrical quantity:2LED show the working mode of Bar codes and Bluetooth working mode
  	Auto charging	Automatically charging without pressing any key when inserting into the interface by USB cable.
  	Auto Detect	Automatically detect whether to charge when inserting into the interface by USB cable.
  	priority of charge	Priority of charging mobile phone, then charging the internal battery.
  	UPS function	When external power supply breaks off, its internal  battery with keep charging mobile phone.
  	battery overcharge protection	Dual hardware protection: >4.2±0.04V
  	Battery over discharge alarm voltage	HW: 2.8±0.1V & SW: <3.3V; Priority to enable software protection
  	Output Current Limiting Threshold	≤ 1.2A
  	short-circuit protection	HW protection
  Standard Configuration		Micro USB Cable
  		Left and right buckle
  		front buckle (two pieces with different height)
  		skid and scratch resistant cloth  2pcs
  		Warranty Card
  		Certification
  		Instruction Book
  Options		5V/2A & 5V/1A two separate output high-quality car charger (use cell phone charger for both mobile phone and back splint when indoor, and use car charger when outdoor. The car charger can also charges tablet PC.
  		Sling
  		AC charger
  		Cross Screwdriver
  		pocket



•
•
