2015 NEW Portable 1D 2D Android Bluetooth RFID Reader for Tablet and All Phones
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LongView
Model Number:
LVB01A
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 NEW Android Bluetooth Portable ID Card Scanner for Tablet up to 6 InchNegotiableMOQ: 1 Piece -
2015 Portable Multifunctional Bluetooth 1D/2D Barcode and HF/UHF RFID Credit Card ReaderNegotiableMOQ: 1 Piece
-
2015 NEW Portable Android Bluetooth 1D 2D Barcode / Handheld RFID Reader for PhoneNegotiableMOQ: 1 Piece
-
2015 NEW Portable Wireless 1D 2D Barcode + RFID Reader Writer for PhoneNegotiableMOQ: 1 Piece
-
2015 Bluetooth HF/UHF Long Range RFID Reader, 1D 2D Barcode ReadableNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
LongView
Model Number
LVB01A
Specifications
2014 NEW Multifunctional Bluetooth Mobile UHF RFID Reader
1.HF/UHF RFID
2.1D/2D Barcode
3.Power Bank
4.3000mA Battery
2015 NEW Multifunctional Bluetooth
Mobile UHF RFID Reader, 1D 2D Barcode Readable
Product Description

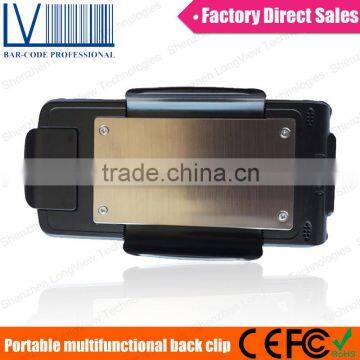

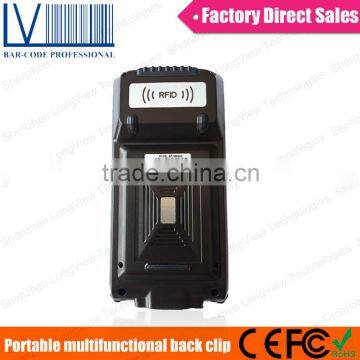

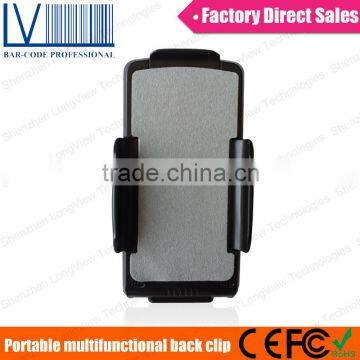

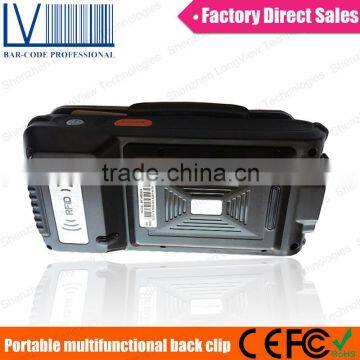

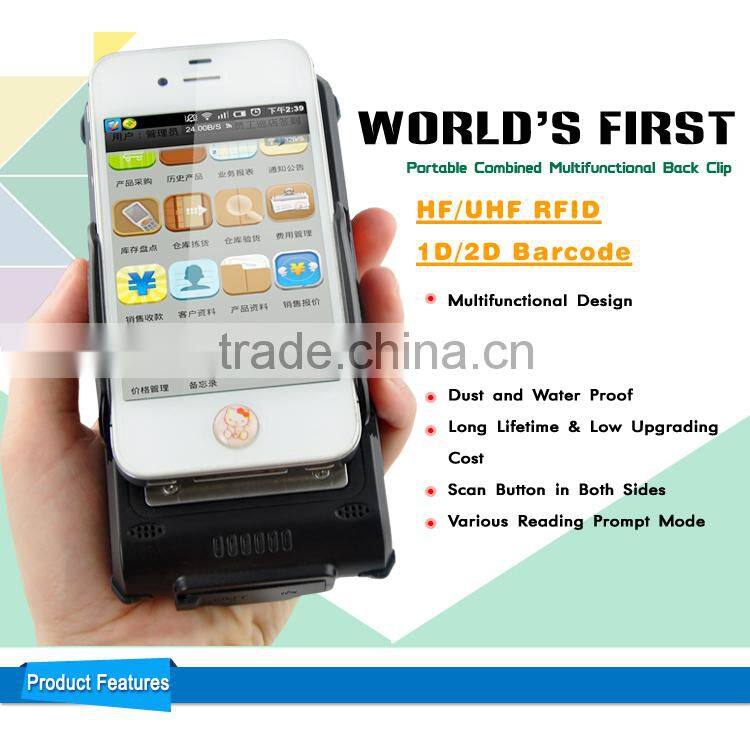

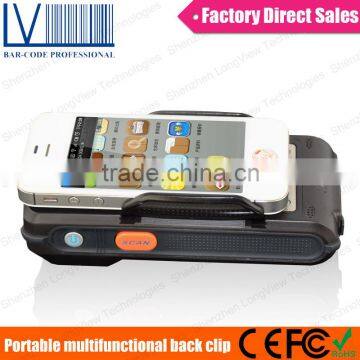

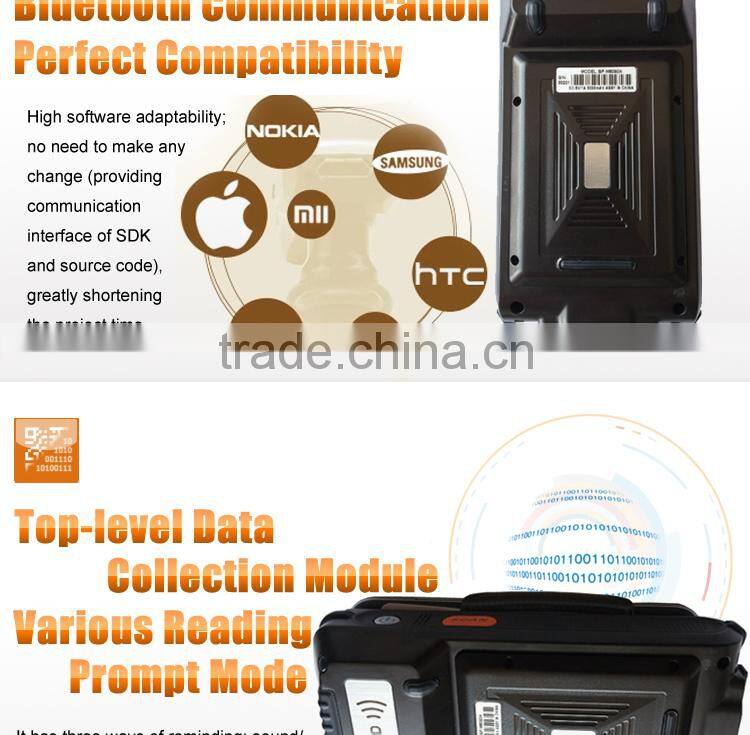

World’s First Portable Combined Multifunctional Back Clip
Advantages:
- HF/UHF RFID
- 1D/2D Barcode
- Multifunctional Design

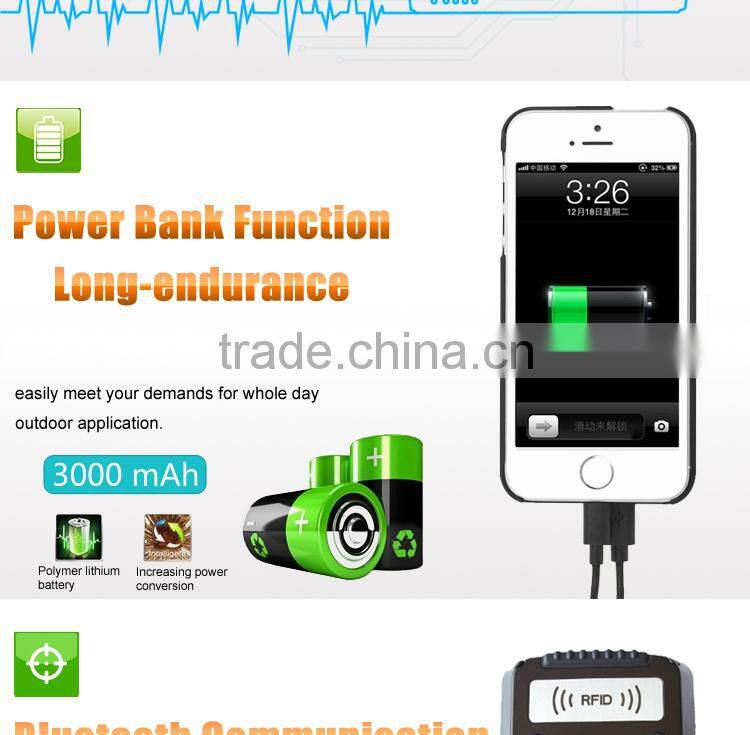

- Power Bank
- Bluetooth Communication
- Dust and Water Proof

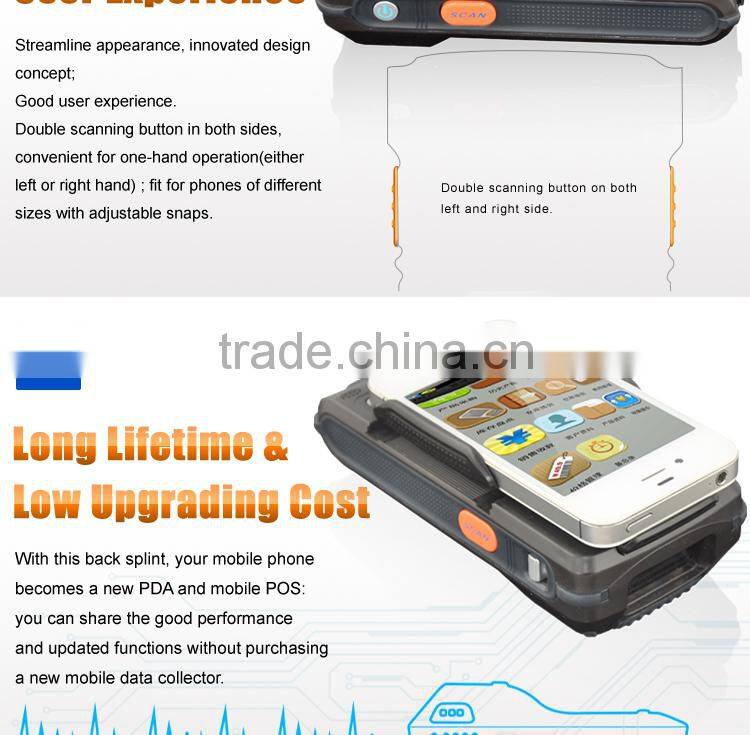

- Long Lifetime & Low Upgrading Cost
- Scan Button in Both Sides
- Various Reading Prompt Mode
- Fit for All Phones

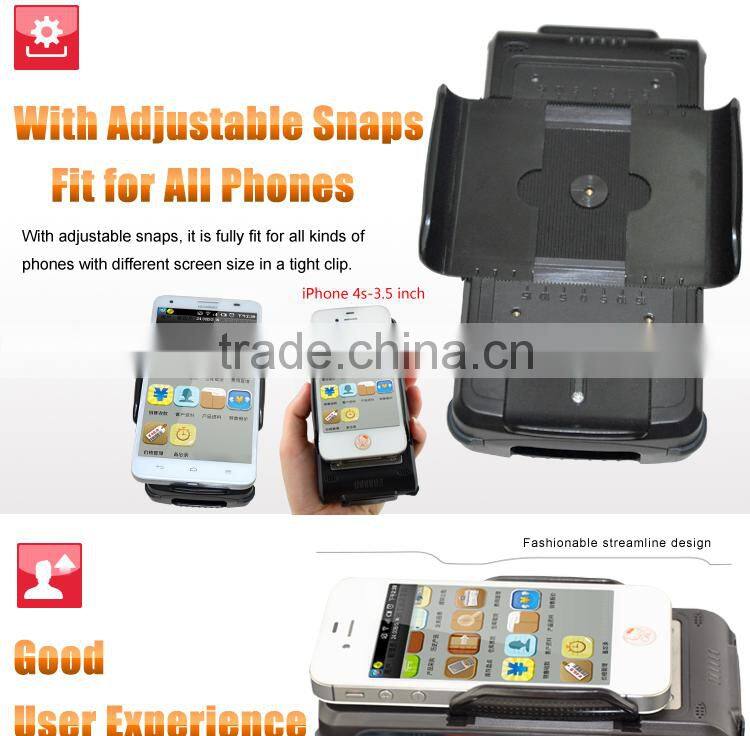

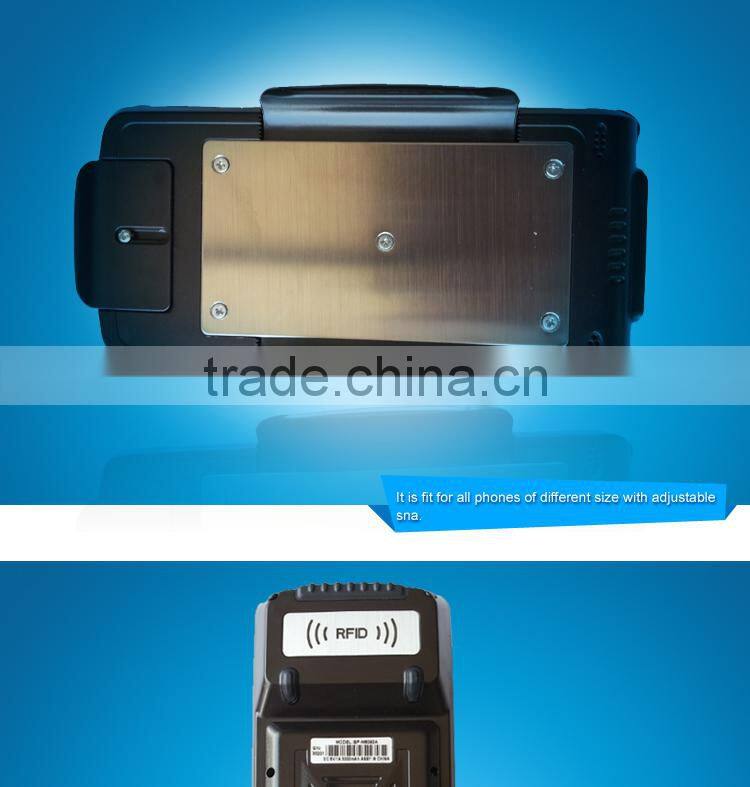

- With Adjustable Snaps
- IP 54, Dust Proof and Long Duration

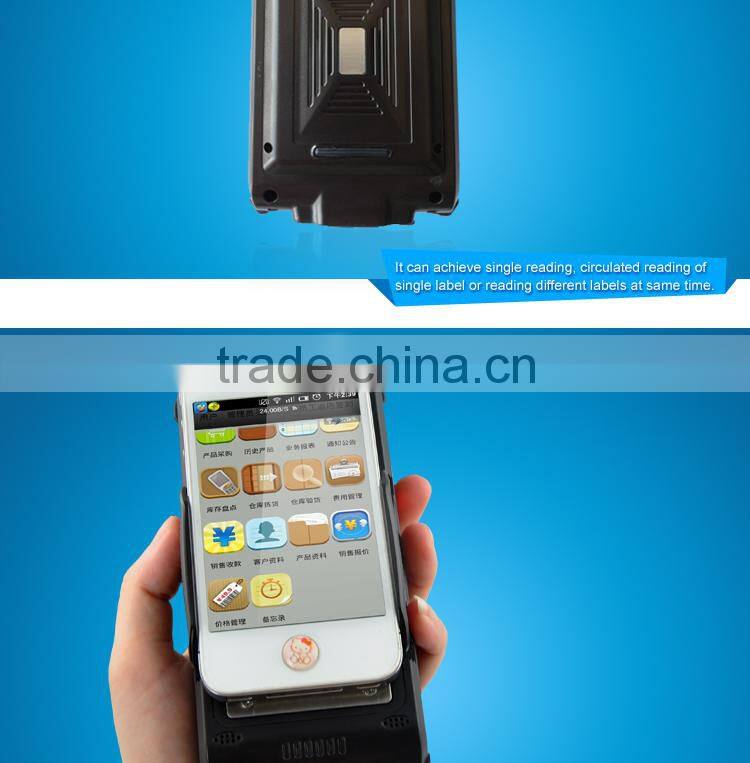

- UHF RFID Reader
-
-
-
Weight 240g Dimension 138 x 66 x 31mm(Thin: 31, Thick: 34) charging and discharging parameter Input 5.0±0.25V DC output 5.0±0.25V DC nominal capacity 3000mAhlithium polymer battery (>500 charge cycles) Standard Charge Circuit <1A Standard Charging method CV(constant voltage5.0V)charging charging time ≤6 hours max charging current <1A max discharge current <1A end-off voltage 3.3V Interface Bluetooth HID & SPP 1D Infrared Reading Mode CCD Resolution 2500 Scan Rate 300 scan/sec Symbologies Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar,ITF-14 Precision ≥ 5mil(under the condition of PCS: 0.9,Code 39) Scan Distance Code128(10mil):30mm-285mm; Code39(5mil):90mm-195mm; Code39(10mil):50mm-325mm; EAN-13(10mil):60mm-265mm; EAN-13(15mil):65mm-350mm; sensitivity incline ±65°@0°Roll and 0° Skew rotate ±30°@0°Pitch and 0°Skew declination ±60°@0°Roll and 0° Pitch outdoor scanning proprietary technology-- able to read the code bar under sun light current maximum current 100mA standby current 45mA RFID(optional) Frequency 13.56MHz Reading Mode reading-writing or auto-induction just for Reading Supported Standards ISO14443A Working distance >30mm working current <100mA Max Power Dissipation 0.33W Environment Operating temperature 0℃~45℃ Storage Temperature -10℃~ +45℃ Humidity 5% - 95% ( Non-condensing ) Clip LED display 4LED to show charging and discharging active status and electrical quantity:2LED show the working mode of Bar codes and Bluetooth working mode Auto charging Automatically charging without pressing any key when inserting into the interface by USB cable. Auto Detect Automatically detect whether to charge when inserting into the interface by USB cable. priority of charge Priority of charging mobile phone, then charging the internal battery. UPS function When external power supply breaks off, its internal battery with keep charging mobile phone. battery overcharge protection Dual hardware protection: >4.2±0.04V Battery over discharge alarm voltage HW: 2.8±0.1V & SW: <3.3V; Priority to enable software protection Output Current Limiting Threshold ≤ 1.2A short-circuit protection HW protection Standard Configuration Micro USB Cable Left and right buckle front buckle (two pieces with different height) skid and scratch resistant cloth 2pcs Warranty Card Certification Instruction Book Options 5V/2A & 5V/1A two separate output high-quality car charger (use cell phone charger for both mobile phone and back splint when indoor, and use car charger when outdoor. The car charger can also charges tablet PC. Sling AC charger Cross Screwdriver pocket
