7.5KW solar pump inverter

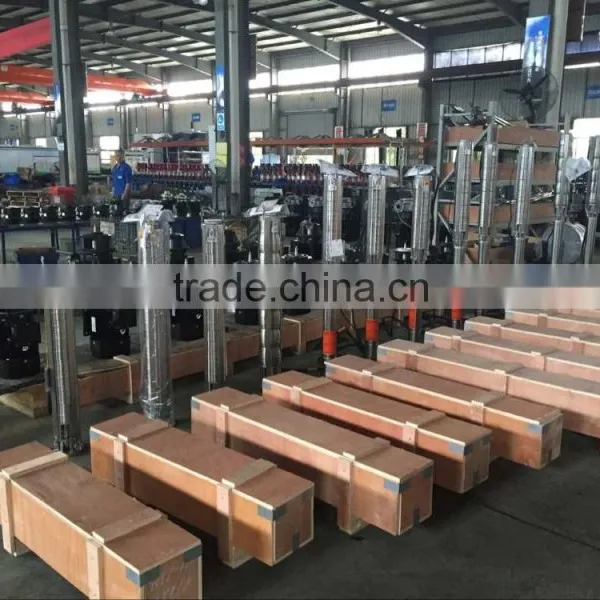

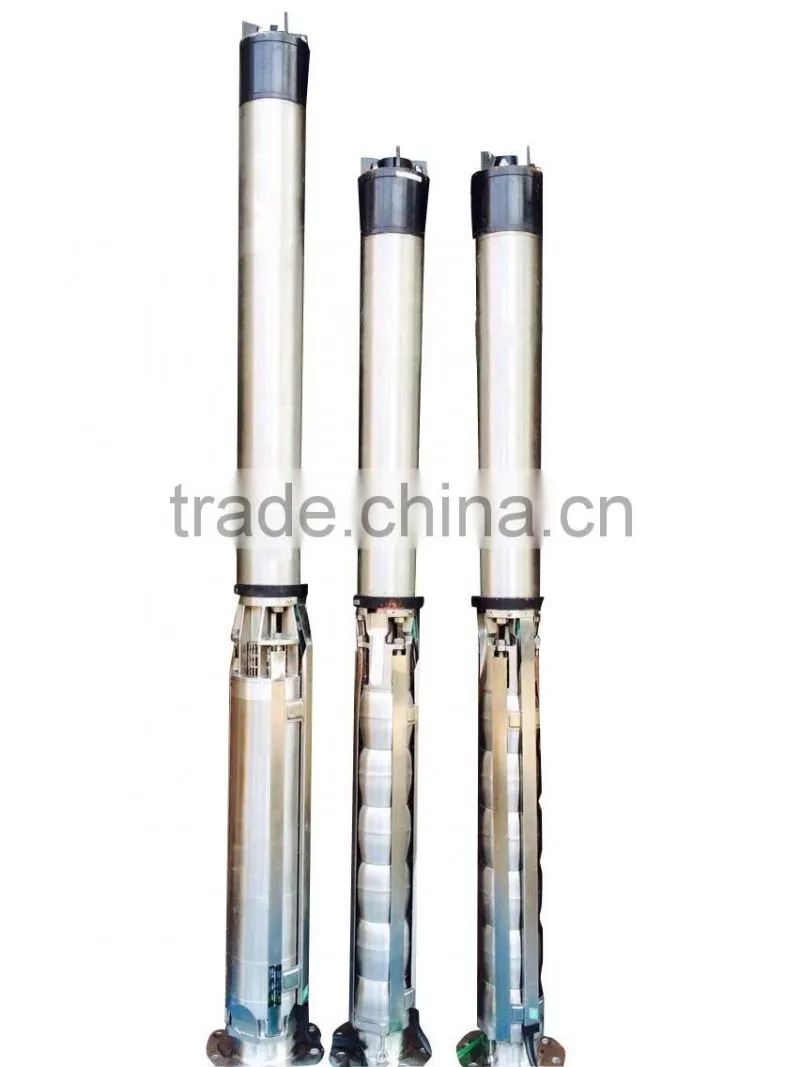

AC water pump:
Pump Power: 7.5kW
Voltage: 3-phase 380V AC, 50Hz
Type: multi-stage centrifugal submersible pump
Series: water cooling/reinforced motor for solar power
Maximum flow: 70m³/hour
Maximum head: 160m
Outlet: 2/2.5/3/4/5 inch
Diving depth: ≤70m
Materials:
Impeller: 304 stainless steel
Pump body: 304 stainless steel
Motor:Cast Iron
Water quality: sand content (weight ratio) in water should not exceed 0.01%, chlorine content should not be over 400mg/L
Maximum average daily water supply: 560m³ at 5.5kWh/m²/day
Warranty: 18 months
Advantages: up to 15years lifespan, working is reliable/stable

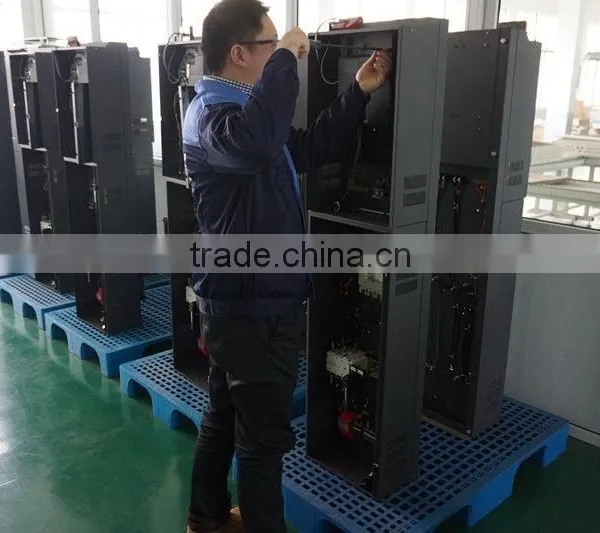

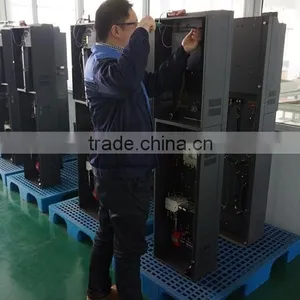

Controller & inverter:
Inverter Power: 11kW
Input voltage: 330-710V
Output voltage: AC, 3-phase 380V,50Hz
MPPT voltage: 450-600V
Maximum MPPT efficiency: ≥98%
Warranty: 2years
Protection:
Over-current/-voltage/-speed/-temperature
Reverse polarity
Dry water
Phase failure
Advantages: High MPPT efficiency, GMS remote control, auxiliary diesel power/3 phase AC electricity hybrid power transfer-switch controller, water flow control regulator, soft start/stop

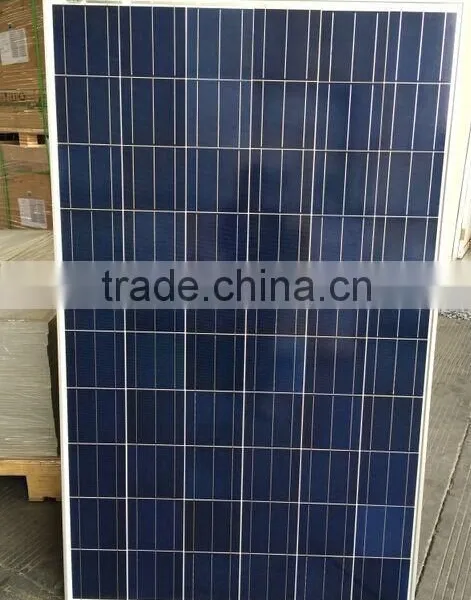

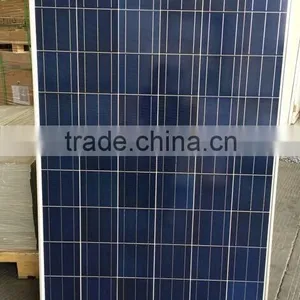

Solar panel reference:
Polycrystalline solar panels, totally is 10.8kW
Positive tolerance: +0~5W
Products warranty: 5 years
Performance warranty: 90%/10-year, 80%/25-year

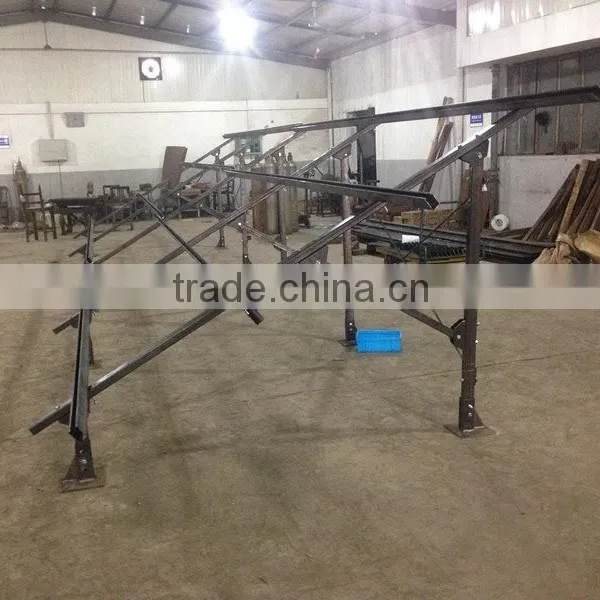

Ground mounting system:
Type: Fixed mode/Pillar manual tracking/Slanting uniaxial tracking
Foundation: concrete pouring
Material: Q235 industrial steel, Zinc-plated
Warranty: 5 years
Combiner box:
Type of model: SH6-3A
PV array input path: 4 channels
Maximum current of each PV array/string(A): DC 12A
Maximum system voltage: DC 1000V
Anti-reserve current protection/lightning protection included
Protection degree: IP55
Accessories: PV cables, water pump cables, water level detector sensor, cable sleeves, pipeline, flange and so on.

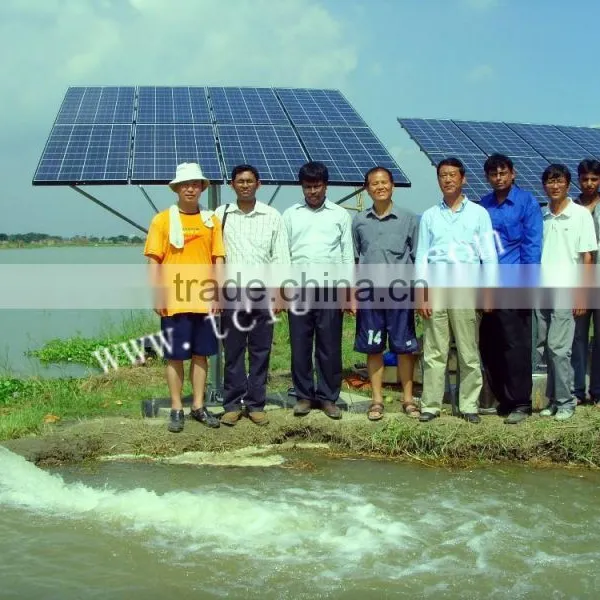

Applications:
Ecological irrigation/solar drought control, living water supply
Agriculture irrigation/solar desert control
Solar seawater desalination system
Solar city water landscape/pasture irrigation
