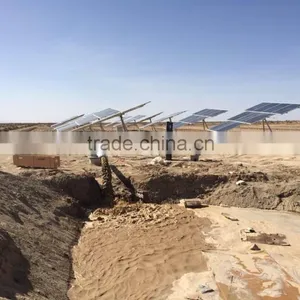

15KW Solar Water Pumping System for Irrigation
US$ 30,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Green Answer
Model Number:
SP15K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7.5KW Solar Water Pumping System for IrrigationUS$ 15,000 - 18,000MOQ: 1 Set -
1.1KW Solar Water Pumping SystemUS$ 2,200 - 2,500MOQ: 1 Set
-
7.5KW Solar Pump for Deep WellUS$ 11,000 - 15,000MOQ: 1 Set
-
7.5KW Solar Pump InverterUS$ 8,000 - 11,000MOQ: 1 Set
-
2.2KW Solar Water Pumping SystemUS$ 4,400 - 5,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
Green Answer
Model Number
SP15K
- Features:
-
AC water pump:
- Power: 15kW
- Voltage: 3-phase 380V AC, 50Hz
- Type: multi-stage centrifugal submersible pump
- Series: water cooling/reinforced motor for solar power
- Max flow: 140m3/hr
- Max head: outlet: 2.5/3/4/5/6"
- NEMA standard: 143/144mm
- Diving depth: ≤50m
-
AC water pump:
- Materials:
- Water outlet: 304 stainless steel
- Impeller: 304 stainless steel
- Pump body: 304 stainless steel
- Motor casing: 304 stainless steel
- Motor shaft: 304 stainless steel
- Screw: 304 stainless steel
- Upper guide bearing, thrust bearing base: cast iron, can be updated to be stainless steel with extra cost if needed
- Water quality: sand content (weight ratio) in water should not exceed 0.01%, chlorine content should not be over 400mg/L
- Max average daily water supply: 840m³@5.5KWh/m²/day
- Warranty: 18 months, extend to 2yrs optional w/ extra cost
- Advantages: up to 15yrs lifetime, working is reliable & stable
-
Controller and inverter:
- Power: 18.5kW
- Input voltages: 330-710V
- Output voltage: AC, 3-phase 380V
- MPPT voltage: 450-600V
- Max MPPT efficiency: ≥97%, soft start/stop
- Warranty: 2yrs, extend to 3yrs optional with extra cost
- Protection:
- Over-current/-voltage/-speed/-temperature
- Reverse polarity
- Dry water/phase failure protection
- Advantages: high MPPT efficiency function, GMS remote control, auxiliary diesel power/3 phase AC electricity hybrid power transfer-switch controller, water flow control regulator, soft start/stop
-
Panel reference:
- Power: mono/poly, totally about 23kW
- Positive tolerance: +0/5W
- Products warranty: 10yrs
- Performance warranty: 90%/10ys, 80%/25yrs
-

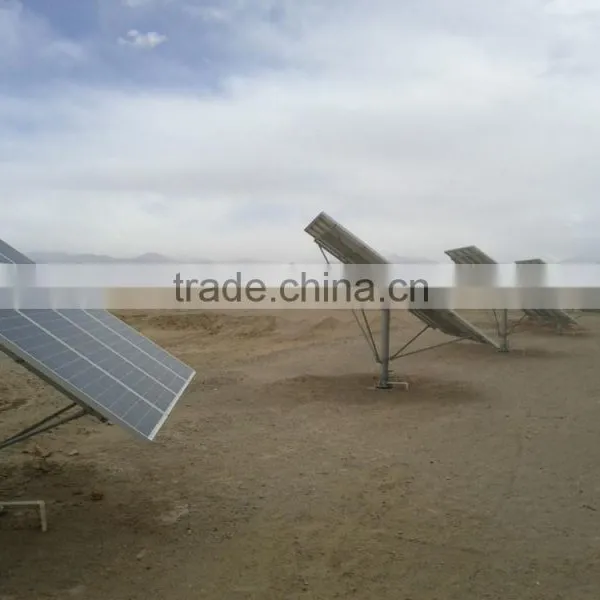

Mounting system:
- Type: fixed mode/pillar manual tracking/slanting uniaxial tracking
- Foundation: concrete pouring
- Installation type: 6pcs/array and vertical
- Warranty: 5yrs
- Material: hot-dip galvanized
-
Combiner box:
- Type of model: SH6-5A
- PV Array input path: 5 channels
- Maximum current of each PV array/string(A): DC 12A
- Maximum system voltage: DC 1000V
- Anti-reserve current protection/lightning protection included
- Protection degree: IP55
- Accessories: PV cables, water pump cables, water level detective sensor, cable sleeves, pipeline, flange, riser pipe
- Quantity of accessory materials are based on actual design
-
Applications:
- Ecological irrigation. Solar drought control
- Solar living water supply. Agriculture irrigation
- Solar desert control. Solar seawater desalination system
- Solar city water landscape. Pasture irrigation
| Optional pump, model number | Rated head | Rated flow | Max. head/min. flow | Min head/Max fax flow | Pump's outlet | Average daily water supply |
| SJ17-25 | 181m | 17m³/h | 246m/8m³/h | 118m/22m³/h | 2.5" | 102m³@5.5kWh/m²/day |
| SJ17-26 | 189m | 17m³/h | 256m/8m³/h | 122m/22m³/h | 2.5" | 102m³@5.5kWh/m²/day |
| SJ30-16 | 118m | 30m³/h | 168m/12m³/h | 85m/36m³/h | 3" | 180m³@5.5kWh/m²/day |
| SJ30-17 | 125m | 30m³/h | 179m/12m³/h | 90m/36m³/h | 3" | 180m³@5.5kWh/m²/day |
| SJ42-9 | 80m | 42m³/h | 110m/20m³/h | 40m/60m³/h | 3" | 252m³@5.5kWh/m²/day |
| SJ42-10 | 89m | 42m³/h | 122m/20m³/h | 45m/60m³/h | 3" | 252m³@5.5kWh/m²/day |
| SJ60-8 | 61m | 60m³/h | 96m/30m³/h | 35m/75m³/h | 4" | 360m³@5.5kWh/m²/day |
| SJ60-9-2 | 64m | 60m³/h | 102m/30m³/h | 36m/75m³/h | 4" | 360m³@5.5kWh/m²/day |
| SJ75-4 | 52m | 75m³/h | 66.5m/50m³/h | 40m/90m³/h | 5" | 450m³@5.5kWh/m²/day |
| SJ120-2-2 | 27.5m | 120m³/h | 32m/80m³/h | 24.5m/140m³/h | 6" | 720m³@5.5kWh/m²/day |
