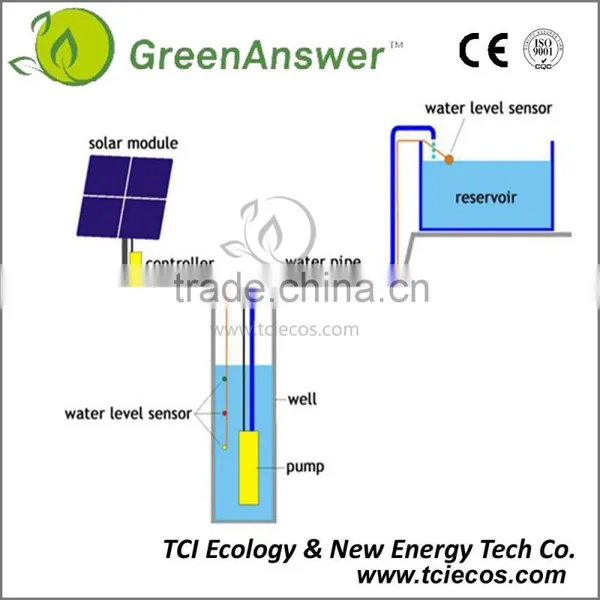

Help CenterCustomized PV Water Pumping System
Related Products
-
Solar Power Pumps System 9.2kw Irrigated Solar Pumping SystemUS$ 18,500 - 28,000MOQ: 1 Set -
HOT SALE DC Solar Water Pumping SystemsUS$ 960 - 1,500MOQ: 1 Set
-
Solar Water Pumping System for Irrigation in Remote VillageUS$ 8,500 - 12,000MOQ: 1 Set
-
PV Irrigation SystemUS$ 18,500 - 28,000MOQ: 1 Set
-
Solar Submersible Pumps Kit With Solar Panel/inverter/bracketUS$ 45,000 - 55,000MOQ: 1 Set
Solar AC Water Pump System
AC water pump:
Power: 15kW
Voltage: 3-phase 380V AC, 50Hz
Type: multi-stage centrifugal submersible pump
Series: water cooling/reinforced motor for solar power
Max flow: 140m3/hr
Max head: outlet: 2.5/3/4/5/6"
NEMA standard: 143/144mm
Diving depth: ≤50m
Materials:
Impeller: 304 stainless steel
Pump body: 304 stainless steel
Motor:Cast Iron
Warranty: 18 months
Controller & inverter:
Power: 18.5kW
Input voltages: 330-710V
Output voltage: AC, 3-phase 380V
MPPT voltage: 450-600V
Max MPPT efficiency: ≥97%, soft start/stop
Warranty: 2yrs
Protection:
Over-current/-voltage/-speed/-temperature
Reverse polarity
Dry water
Phase failure
Advantages: High MPPT efficiency, hybrid solar & diesel energy input, soft start/stop
Solar panel reference:
Power: mono/poly, totally about 23kW
Positive tolerance: +0/5W
Products warranty: 10yrs
Performance warranty: 90%/10ys, 80%/25yrs
Ground mounting system:
Type: Fixed mode/Pillar manual tracking/Slanting uniaxial tracking
Foundation: concrete pouring
Material: Hot dip galvanized
Warranty: 2 years
Accessories: Combiner box, PV cables, water pump cables, water level detector sensor, cable sleeves, pipeline, flange and so on.
Applications:
Ecological irrigation/solar drought control, living water supply
Agriculture irrigation/solar desert control
Solar seawater desalination system
Solar city water landscape/pasture irrigation
Series:
| Solar AC Pump System | |||||||
| System model | Pump model | Solar Panel | Controller&Inverter | Mounting system | |||
| Power |
Head Max(m) |
Flow Max(m3/h) |
Outlet (inch) |
Power (W) |
Power | Quantity | |
| SP1.5K |
1.5kw 2HP |
186 | 12 | 1.25-2 |
2100 | 2.2kw | 2 set |
| SP3K | 3kw 4HP |
178 | 60 | 1.25-4 | 4200 | 3.7kw | 4 set |
| SP4K | 4kw 5.5HP |
161 | 95 | 1.5-5 | 5600 | 5.5kw | 4 set |
| SP5.5K | 5.5kw 7.5HP |
147 | 60 | 2 -4 | 7700 | 7.5kw | 4 set |
| SP7.5K | 7.5kw 10HP |
198 | 75 | 2-5 | 10500 | 11kw | 8 set |
| SP9.2K | 9.2kw 12.5HP |
123 | 150 | 2.5-6 | 12800 | 11kw | 8 set |
| SP11K | 11kw 15HP |
145 | 150 | 2.5-6 | 15400 | 15kw | 10 set |
| SP13K | 13kw 17.5HP |
174 | 150 | 2.5-6 | 18200 | 15kw | 12 set |
| SP15K | 15kw 20HP |
189 | 120 | 2.5-6 | 21000 | 18.5kw | 12 set |
| SP18.5K | 18.5kw 25HP |
155 | 150 | 3-6 | 25900 | 22kw | 14 set |
| SP22K | 22kw 30HP |
184 | 150 | 3-6 | 30800 | 30kw | 21 set |
| SP25K | 25kw 34HP |
152 | 150 | 3-6 | 35000 | 30kw | 24 set |
| SP30K | 30kw 40HP |
179 | 150 | 3-6 | 42000 | 37kw | 27 set |
| SP37K | 37kw 50HP |
197 | 150 | 3-6 | 51800 | 45kw | 28 set |
| SP45K | 45kw 60HP |
162 | 150 | 5-6 | 63000 | 55kw | 42 set |
