Solar Submersible Pumps Kit With Solar Panel/inverter/bracket

AC water pump:
Pump Power: 22kW
Voltage: 3-phase 380V AC, 50Hz
Type: multi-stage centrifugal submersible pump
Series: water cooling/reinforced motor for solar power
Maximum flow: 150m³/hour
Maximum head: 184m
Outlet: 3/4/5/6 inch
Diving depth: ≤50m

Materials:

Impeller: 304 stainless steel

Pump body: 304 stainless steel

Motor:Cast Iron

Water quality: sand content (weight ratio) in water should not exceed 0.01%, chlorine content should not be over 400mg/L

Maximum average daily water supply: 150m³ at 5.5kWh/m²/day

Pump Warranty: 18 months

Motor Warranty: 12 months

Advantages: up to 15years lifespan, working is reliable/stable

Controller & inverter:

Inverter Power: 30kW

Input voltage: 330-710V

Output voltage: AC, 3-phase 380V,50Hz

MPPT voltage: 450-600V

Maximum MPPT efficiency: ≥99.7%

Warranty: 2years

Protection:

Over-current/-voltage/-speed/-temperature

Reverse polarity

Dry water

Phase failure

Advantages: High MPPT efficiency, GMS remote control, auxiliary diesel power/3 phase AC electricity hybrid power transfer-switch controller, water flow control regulator, soft start/stop

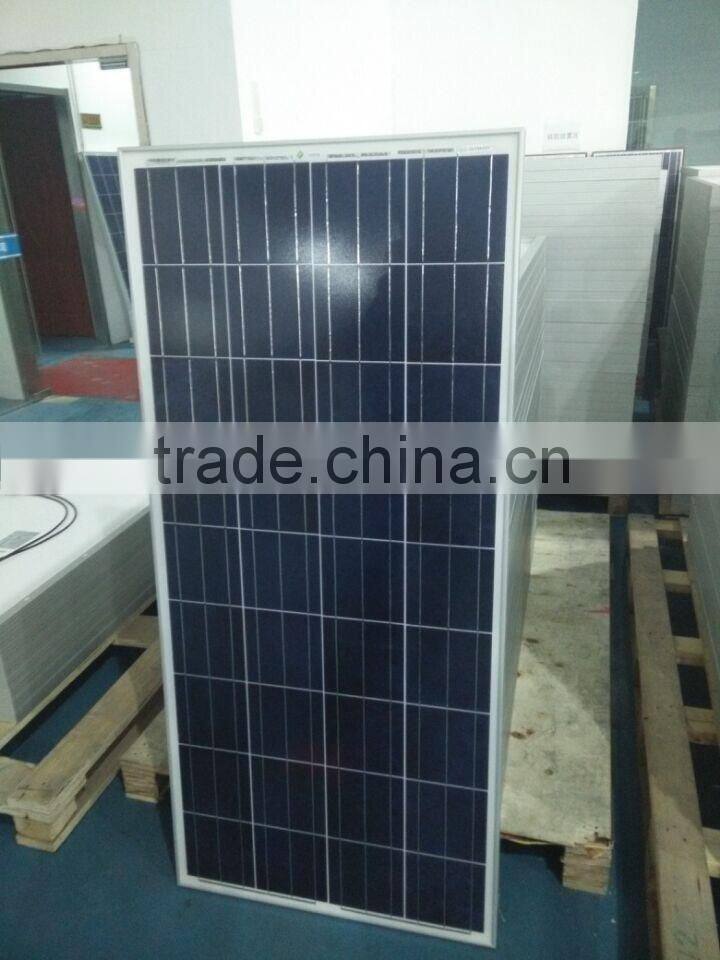

Solar panel reference:

Polycrystalline solar panels, totally is 63kW

Positive tolerance: +0~5W

Products warranty: 5 years

Performance warranty:  80%/25-year

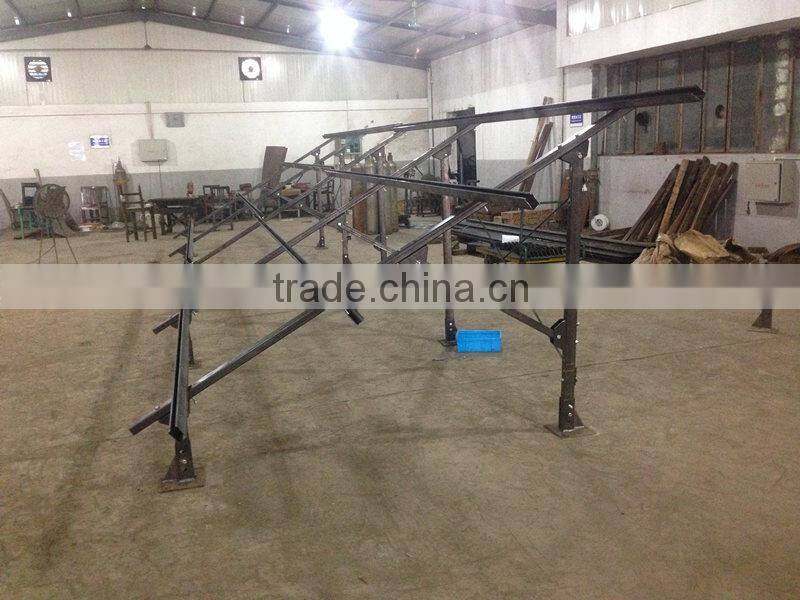

Ground mounting system:

Type: Slanting uniaxial tracking

Foundation: concrete pouring

Material: Q235 industrial steel, Zinc-plated

Warranty: 5 years

Combiner box:

Type of model: SH8-8A

PV array input path: 8 channels

Maximum current of each PV array/string(A): DC 12A

Maximum system voltage: DC 1000V

Anti-reserve current protection/lightning protection included

Protection degree: IP55

Accessories: PV cables, water pump cables, water level detector sensor, cable sleeves, pipeline, flange and so on.

Applications:

                          Ecological irrigation/solar drought control, living water supply

                          Agriculture irrigation/solar desert control

                          Solar seawater desalination system

                          Solar city water landscape/pasture irrigation

Accessories: Combiner box, PV cables, water pump cables, water level detector sensor, cable sleeves, pipeline, flange and so on.

Applications:

                          Ecological irrigation/solar drought control, living water supply

                          Agriculture irrigation/solar desert control

                          Solar seawater desalination system

                          Solar city water landscape/pasture irrigation
