Solar Water Pump in Sudan Serves the Environment Development and Agricultural Sectors
US$ 8,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Green Answer
Model Number:
SP4K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
The Potentials of Solar Irrigation Pumps as Productive Loads for Solar Mini-grids Based Rural Electrification ProjectsUS$ 6,000 - 8,000MOQ: 1 Set -
Solar-powered Irrigation System Starts to Pump Water in NicaraguaUS$ 2,000 - 3,000MOQ: 1 Set
-
Solar Borehole Pumping System in ChennaiUS$ 6,000 - 8,000MOQ: 1 Set
-
Solar Tube Well Pump in District Qilla Saifullah BaluchistanUS$ 6,000 - 8,000MOQ: 1 Set
-
Solar Powered Pumps for Water BoreholesUS$ 19,000 - 22,000MOQ: 1 Set
Place of Origin
China
Brand Name
Green Answer
Model Number
SP4K
Specification
Normal
Application
Commercial
Output Voltage (V)
AC380V
Load Power (W)
4KW
Solar Power (W)
6KW
Work Time (h)
6-8 hours
Product Description
-
-
Features:
- Power: 4KW
- Voltage: 3-phase 380V AC, 50Hz
- Type: multi-stage centrifugal submersible pump
- Series: water cooling and reinforced motor suitable for solar power
- Max. flow: 110m3/hour
- Max. head: 193m
- Outlet: 1.5/2//2.5/3/4/5 inches
- NEMA standard: 96mm/143mm
- Diving depth: ≤50m
-
Materials:Upper guide bearing, thrust bearing base: cast iron, can be updated to be stainless steel with extra cost if needed
- Water outlet: 304 stainless steel
- Impeller: 304 stainless steel
- Pump body: 304 stainless steel
- Motor casing: 304 stainless steel
- Motor shaft: 304 stainless steel
- Screw: 304 stainless steel
- Water quality: sand content (weight ratio) in water should not exceed 0.01%, chlorine content should not be over 400mg/L
- Max. average daily water supply: 550m³ at 5.5kWh/m²/day
- Warranty: 18 months, extend to 2-year warranty optional with extra cost
- Advantages: up to 15yrs lifetime, working is reliable & stable
-
Controller and inverter:
- Power: 5.5kW
- Input voltages: 330-710V
- Output voltage: AC, 3-phase 380V
- MPPT voltage: 450-600V
- Max. MPPT efficiency: ≥97%,soft start/stop
- Warranty: 2-year, extend to 3-year warranty optional with extra cost
-
Protection:
- Over-current, over-voltage, over-speed and over-temperature
- Reverse polarity
- Dry water/phase failure protection
- Advantages: high MPPT efficiency function, GMS remote control, auxiliary diesel power/3 phase AC electricity hybrid power transfer-switch controller, water flow control regulator, soft start/stop
-
Solar panel reference:
- Power: mono/poly, totally about 6KW
- Positive tolerance: +0/5W
- Products warranty: 10 years
- Performance warranty: 90%/10 years, 80%/25 years
-
Mounting system:
- Type: fixed mode/pillar manual tracking/slanting uniaxial tracking
- Foundation: concrete pouring
- Installation type: 6 pieces/array and vertical
- Warranty: 5 years
- Material: hot-dip galvanized
- Combiner box: N/A
- Accessories: PV cables, water pump cables, water level detective sensor, cable sleeves, pipeline, flange, riser pipe
- Quantity of accessory materials are based on actual design
- Applications:
- Ecological irrigation
- Solar drought control
- Solar living water supply
- Agriculture irrigation
- Solar desert control
- Solar city water landscape
- Pasture irrigation
-
Features:
Packaging & Shipping

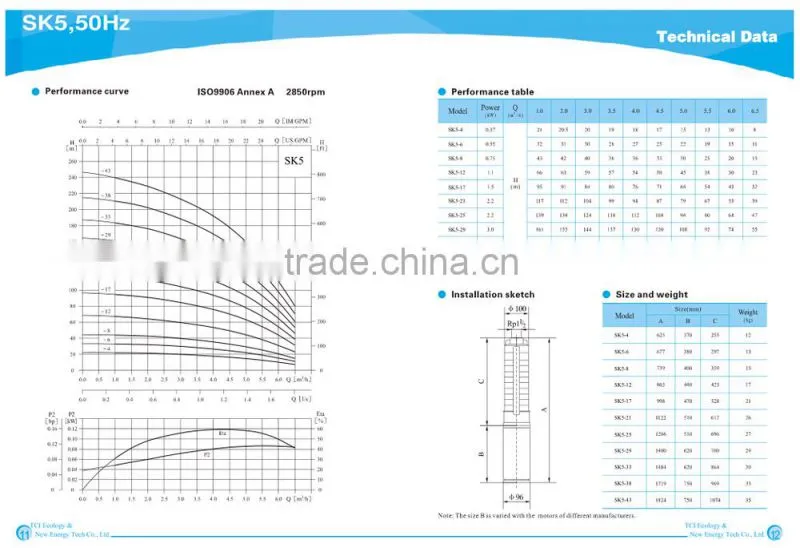

Performance Curve
Pump Performance Curve

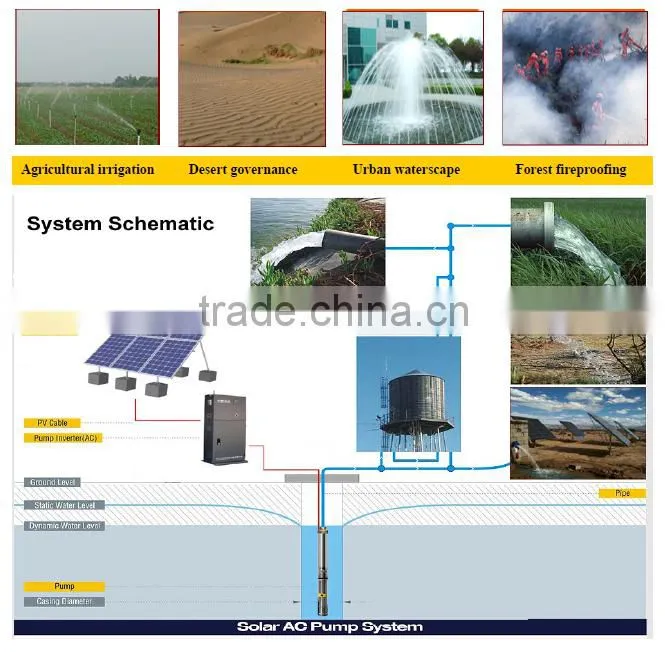

Functional Diagram
FAQ

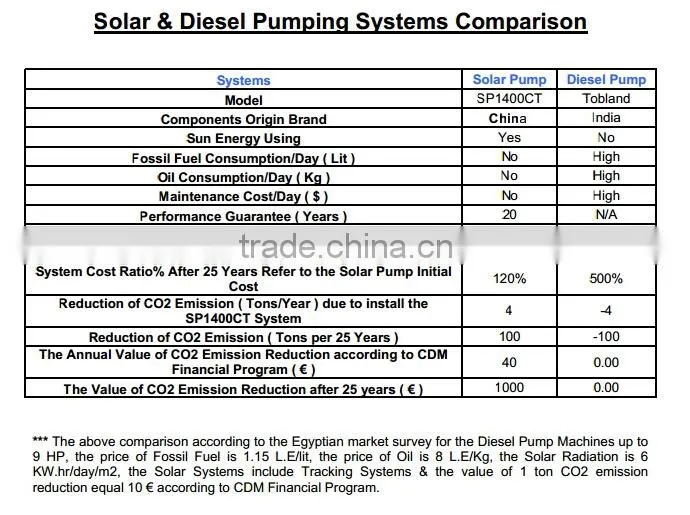

Solar VS Diesel Pump
Solar & Diesel Pumping System comparison
After-sell Service
Installation and maintenance for the solar water pump
Certifications
