Help CenterVMC-850 CNC Vertical Milling Lathe Multi-purpose Machine Kit
Related Products
-
VMC-850 Mini Lathe CNC Vertical Milling Machine Magnetic TableUS$ 26,500 - 35,500MOQ: 1 Set -
High Quality VMC-850 CNC Vertical Lathe Milling Machine FrameUS$ 26,500 - 35,500MOQ: 1 Set
-
China High Quality VMC-850 Mini CNC Vertical Milling Machine for SaleUS$ 26,500 - 35,500MOQ: 1 Set
-
China Cheap VMC-850 Mini Metal CNC Vertical Milling MachineUS$ 26,500 - 35,500MOQ: 1 Set
-
China High Quality Low Cost VMC-850 Mini CNC Vertical Milling MachineUS$ 26,500 - 35,500MOQ: 1 Set

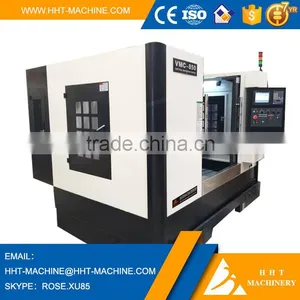

HHT Brand CNC mini Vertical Milling Machine VMC-850
HHT Brand CNC mini Vertical Milling Machine VMC-850
| Specifications | ||
| Item Model | Unit | VMC-850 |
| working tale size | mm | 500X1050 |
| X/Y/Z travel | mm | 800/500/550 |
| Distance between spindle end and table | mm | 105-655 |
| Distance between spindle center and column guide way | mm | 550 |
| Maximum weight of working table | kg | 600 |
| table-T-slot | mm | 3-18-150 |
| X/Y/Z axis rapid feed | mm/min | 18000 |
| three axis working rapid speed | mm/min | 8000 |
| X.Y.Z axis screw mandrel size | mm | 4010 |
| positioning accuracy | mm | ±0.005/300 |
| repeat positioning accuracy | mm | ±0.003 |
| spindle speed | rpm | 8000 |
| spindle taper | mm | BT40/150 |
| control system | / | MITSUBISHI-M70VA/FANUC0i-mate-MD |
| torque force of spindle motor | nm/kw | 35/7.5 |
| torque force of X.Y.Z motor | nm | 20-50 |
| pneumatic source requirement | Kg/Cm2 | 6 |
| power consumption | kva | 20 |
| machine size | mm | 2550*22000*2700 |
| machine weight | kg | 4800 |
| We reserve the rights on the designing, colors,specification and termination of use of our products.Changes to these factors will not be notified. | ||
| Standard accessories: | ||||
| * Full closed guard | ||||
| * Electrical box heater exchanger | ||||
| * Belt drive | ||||
| *Cutting coolant unit | ||||
| * Cutting air blowing device | ||||
| * Griping arm type magazine 24pcs | ||||
| * DNC computer transmission line | ||||
| * 3 axis Pretensioned Ball Screws | ||||
| *Axis extend guard | ||||
| * Explosion-proof work light | ||||
| *Spindle air blast | ||||
| * Rigid tapping | ||||
| * Program storage | ||||
| * Automatic lubrication system | ||||
| * Horizontal bolts and pads | ||||
| * Warning light of three color | ||||
| * Operation maintenance Manual | ||||
| *Spindle oil cooler | ||||
| *Plug type hand wheel | ||||
| *Tool box | ||||
| Special accessories: | ||||

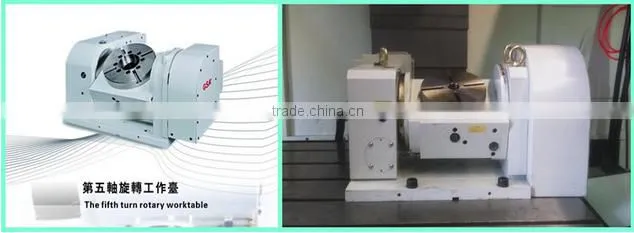

| *Rotary table | ||||
| *Automatic tool length measurement system | ||||
| *Spindle speed:12000rpm | ||||
| *Spindle straight transfer speed:15000rpm | ||||
| *Spindle central water discharge | ||||
| *Scraps conveyer | ||||
| *voltage stabilizer | ||||
Why you should have one CNC milling machine?
- The cnc milling machines are computer controlled, providing greater precision than manual machines and are consistently repeatable across multiple production jobs
- It is possible to achieve identical parts continuously
- Once a CNC milling machine is programmed, it requires very little supervision
- Easy to operate
- Improve your efficiency, save your cost and make you money finally.
Products are dismantled into different parts, coated with rust-proof paint and wrapped with a plastic cover. The parts will be put into fumigated wooden cases and loaded into containers as planned. Inside the container, the parts will be fastened with iron cable.
1. Free installation and debugging
2. Free operator training
3. Free maintenance within 1 year
4. Long warranty and technology support
Huaian Jianhai Machinery CO., LTD., located in Jiangsu, one of the most developed province of China. We are an industry and combination enterprise with several years’ development. JIANHAI has gained its position of prominence over the years in the field of CNC Machining Center, CNC Lathe Machine, Boring and Milling Machines for large size components. JIANHAI boring and milling machines can be used in the fields like energy, aerospace, shipbuilding, diesel engine, defense, earthmoving and general mechanics.
We have already passed the ISO9001 and CE authentication. The trade part is the agent of CNC machines like boring machine, CNC Milling Machine, CNC lathe, machining centers and so on. They are well known for their strength, construction, durability, low maintenance cost and ease of operation.
We do business with sincerity and honesty, and welcome anyone who wants to establish business relationship with us.
If any products are of your interests, please do not hesitate to call us. Or contact at Skype: jianhai2012
