Economic CNC Gantry Type Metal Milling Machine TOM-SP2503

Economic CNC Gantry Type Metal Milling Machine TOM-SP2503 thumbnail-1
Economic CNC Gantry Type Metal Milling Machine TOM-SP2503 photo-1
US$ 1 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Gantry
Place of Origin:
Yunnan, China
Contact Supplier Request Quote Chat Now
Huaian Haoyang Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Gantry
Place of Origin Yunnan, China
Brand Name HHT
Model Number TOM-SP2503
Voltage 220V
Power(W) 30kw
Weight 44.5kgs
Certification ISO/CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

     Low cost 5 -axis vertical CNC gantry type machining center TOM-SP2503

Product Description

      Low cost 5 -axis vertical CNC gantry type machining center TOM-SP2503

CNC Gantry Machine Center TY-SP2503

1.Brand:HHT

2.Cert.:ISO,CE

3.Max.load:10000kg

4.Table size:2300*3000mm

5.X/Y/Z travel:3000/2700/1000mm

6.CNC controller:SIEMENS FANUC MITSUBISHI



Specification of CNC Gantry Machine Center TY-SP2503:

  Specifications

Specifications
Item Model Unit TOM-SP2503 TOM-SP2503B TOM-SP2504B TOM-SP2505B
table size(LxW) mm 2300×3000 2300×3000 2300×4000 2300×5000
X-axis travel mm 3000 3000 4000 5000
Y-axis travel mm 2700
Z-axis travel mm 1000
distance between columns mm 2700
spindle nose to table mm 280~1280
table-T-slot mm 11-28×200
spindle taper mm BT50/Φ190
spindle gear rpm highest speed 3000rpm
spindle straight transfer rpm highest speed4500rpm(ZF speed reducer can be added,reduction ratio 1 to 1, 4 to1)
spindle belt drive milling head rpm highest speed6000rpm,reduction ratio1.5 to 1 or 1 to 1(ZF speed reducer can be added,reduction ratio1 to 1, 4 to1)
XYZ-axis ball-screw size mm 8016x6316x5010
X-axis rail size mm harden rail heavy duty roller liner guide 55
Y-axis rail size mm heavy duty roller liner guide 55
Z-axis rail size mm rectangle slide rail
X/Y/Z axis rapid feed m/min 12x20x20
three axis working rapid speed mm/min 1-8000
positioning accuracy mm ±0.015 ±0.02 ±0.02
repeat positioning accuracy mm ±0.003 ±0.005 ±0.01
control system M70A MITSUBISHI-M70A
spindle motor kw 30
X-axis servo-actuator nm 60 40 70 100
Y-axis servo-actuator nm 40
Z-axis servo-actuator nm 40
pneumatic source requirement Kg/Cm2 6
table load capacity kgs 10 8 12 15
power requests kva 50 50 50 50
weight(approx) kgs 44.5 44.5 49 55


Standard accessaries Special accessaries
1,full closed guard(without top cover) 1, deep honing Oil-way tools device
2,column postposition carrier 2,CNC rotatry table
3,Double oil hydraulic cylinder balance system 3,Electrical box air-conditioning device
4,Oil-water separator 4,Optical Scale ffedback system
5,Cutting fluid cooling system 5,High pressure spindle center of the water
6,Double spirals type chip conveyer 6,Cutting fluid automatic system
7,Crawler type chip removal/ debris collector car 7,Automatic tool length measurement systems
8,Working light and daylightlamp 8,Automatic work-piece measurement systems
9,process end warning light 9,oil-pressure clamping maunal 90°lateral milling head
10,water cannons and air gun for cleaning 10,oil-pressure clamping maunal 90°lateral milling head
11,Rigid tapping 11,lengthening milling head
12,RS232C  port 12,gear type milling head
13,Portable hand wheel 13,milling head with five faces
14,Spindle cooling system 14,Erect milling head
15,Electrical box heat exchanger 15,manual Universal milling head
16,foundation pad and balance adjustment pad 16,straight transfer milling head
17,One set of tool and adjustment box 17,ZF speed reducer+straight transfer milling head
18,Operation and maintenance instructions
19,automatic power turn-off device
20,precision check report
21,System Operation and maintenance instructions
22,Outside varying voltage(220/380V)
23,Manual/program spindle debris device
24,Central lubricating system

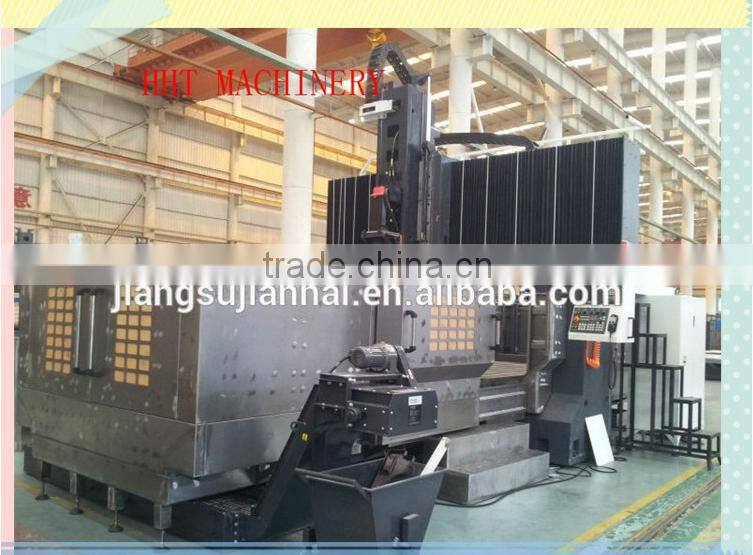

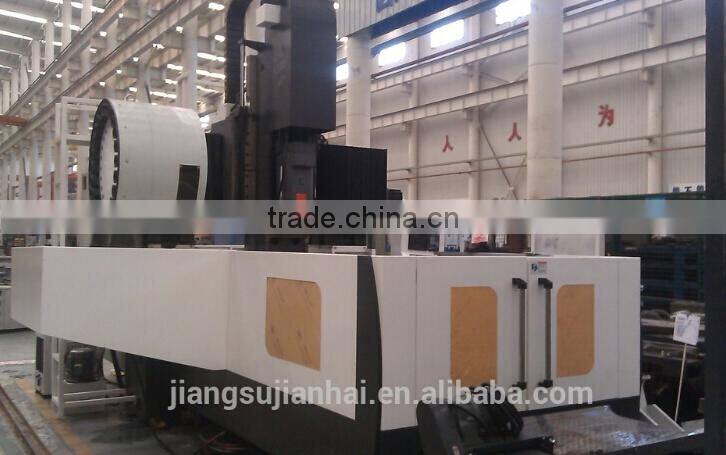

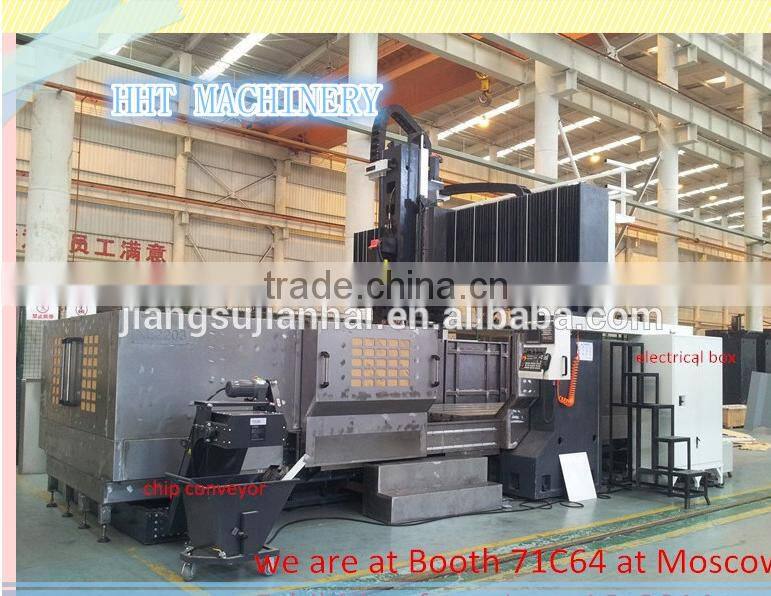

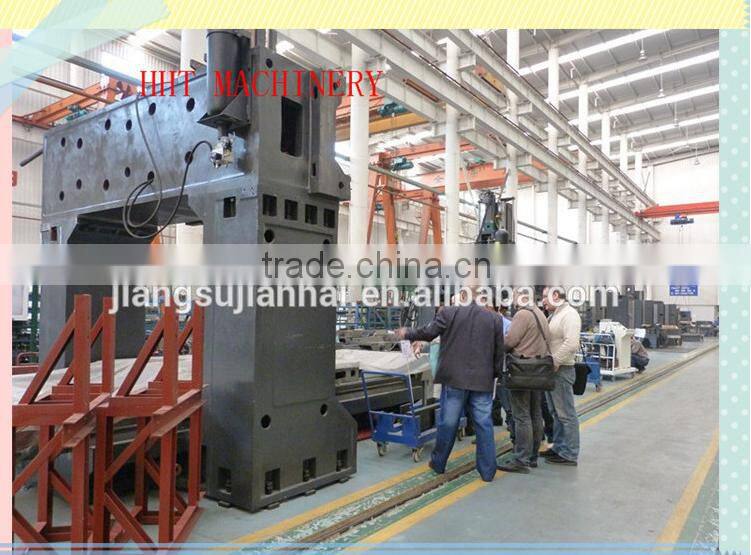

Machine Photo

economic CNC gantry type metal milling machine TOM-SP2503

 economic CNC gantry type metal milling machine TOM-SP2503

economic CNC gantry type metal milling machine TOM-SP2503



economic CNC gantry type metal milling machine TOM-SP2503





Packaging & Shipping

Products are dismantled into different parts, coated with rust-proof paint and wrapped with a plastic cover. The   parts will be put into fumigated wooden cases and loaded into containers as planned. Inside the container, the parts will be fastened with iron cable.



economic CNC gantry type metal milling machine TOM-SP2503







Our Services



1. Free installation and debugging



2. Free operator training



3. Free maintenance within 1 year



4. Long warranty and technology support

economic CNC gantry type metal milling machine TOM-SP2503



Company Information



Huaian Haoyang Machinery CO., LTD., located in Jiangsu, one of the most developed province of China. We are an industry and combination enterprise with several years’ development. Haoyang has gained its position of prominence over the years in the field of CNC Machining Center, CNC Lathe Machine, Boring and Milling Machines for large size components. Haoyang boring and milling machines can be used in the fields like energy, aerospace, shipbuilding, diesel engine, defense, earthmoving and general mechanics.



We have already passed the ISO9001 and CE authentication. The trade part is the agent of CNC machines like boring machine, CNC Milling Machine, CNC lathe, machining centers and so on. They are well known for their strength, construction, durability, low maintenance cost and ease of operation.



We do business with sincerity and honesty, and welcome anyone who wants to establish business relationship with us.
