Specifications:
TCK-45LS CNC Turning Center, Small CNC lathe Machine for Sale
1. Hydraulic 3 jaw chuck: 8’’, 8’’
2. X travel: 225mm; 225mm
3. Z travel: 600mm; 600mm
4.Slant bed, CE, ISO
Specifications:
Specs |
Name |
Unit |
TCK-45LS |
TCK-45HS |
Processing range |
Max. swing diameter over bed |
mm |
560 |
560 |
Max. processing diameter |
mm |
450 |
450 |
|
Max. processing diameter over toolpost |
mm |
315 |
315 |
|
|
Max. workpiece length |
mm |
450 |
450 |
Max. hole bore of bar |
mm |
52 |
52 |
|
Spindle cylinder/chuck |
Spindle nose |
/ |
A2-6 |
A2-6 |
Spindle bore |
mm |
65 |
65 |
|
Spindle speed |
rpm |
4000 |
4000 |
|
Power of spindle motor |
kw |
11 |
15 |
|
Hydraulic 3 jaw chuck |
/ |
8" |
8" |
|
Feed of X/Z |
X axis motor power |
kw |
1.8 |
1.8 |
Z axis motor power |
kw |
1.8 |
3 |
|
X axis travel |
mm |
225 |
225 |
|
Z axis travel |
mm |
610 |
610 |
|
X/Z axis Rapid traverse |
mm/min |
24 |
20 |
|
Positioning accuracy |
mm |
±0.005 |
±0.005 |
|
Repeatability accuracy |
mm |
±0.002 |
±0.002 |
|
Type of guideway |
/ |
Linear guideway 45mm |
Hard guideway |
|
Live tooling |
Tool position |
pcs |
100/12T |
100/12T |
Square tool holder |
mm |
25 |
25 |
|
Round boring tool holder |
mm |
40 |
40 |
|
Changing time between neighboring tools |
sec |
0.25 |
0.25 |
|
Motor power |
kw/Nm |
3.7/20 |
3.7/20 |
|
Max. speed of power head |
rpm |
4000 |
4000 |
|
Tailstock |
Dia. of quill |
mm |
80 |
80 |
Travel of quill |
mm |
80 |
80 |
|
Taper of quill |
/ |
MT-4 |
MT-4 |
|
CNC Controller |
CNC Controller |
/ |
SYNTEC |
SYNTEC |
Dimension |
L×W |
m |
2.5x1.7x1.76 |
2.5x1.7x1.76 |
Weight |
kg |
3800 |
3800 |
MACHINE PHOTOS:

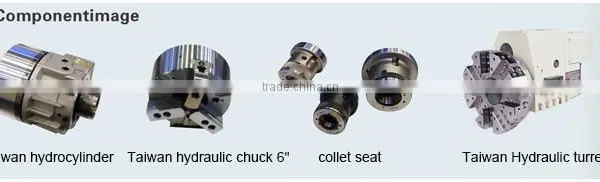

ACCESSORIES SUPPLIERS:
PACKING:
EXHIBITION:
OUR SERVICE:
OUR FACTORY:
Company information:
Company Information
HHT Machine is part of a machine tool industry chain; called a 4S alliance.This alliance consists of enterprises focusing on specialized, characteristic and refined machine tools, colleges and research institutes. Those Enterprises include mines, ironworks, casting, machining, functional components supply, equipment and complete machine assembly and sales, after-sales service, research and development and design. HUAIAN HAOYANG MACHINE CO., LTD-HHT MACHINE is the overseas sales link of the alliance,HHT MACHINE mainly includes CNC lathes, CNC machining centers, CNC planer milling machines, CNC planer boring machines and turret milling machines.
If you are interesting in our products, please contact me Linda zuo, my telephone no. is +86 13861572987
