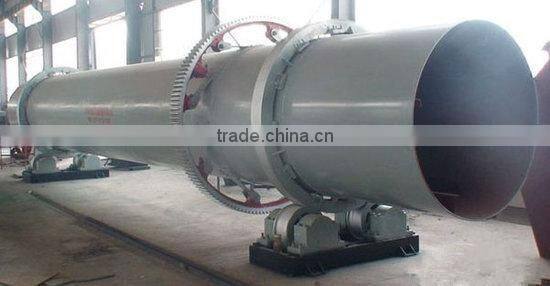

Non pullution manure dryer for drying wet fertilizer for sale
domestic animals manure drier equipment/dried machine Description
no pullution manure dryer for drying wet fertilizer for sale is shaped as a horizontally inclined rotating cylinder. hen dung/manure/chicken dung at feed port and discharged at the output port. In direct -type rotary dryer (cylinder drier), hot air move through the cylinder in direct contact with the material in the dryer, either downstream or against the direction of its flow. The no pullution manure dryer for drying wet fertilizer for sale is equipped with scatters equipment, make hen dung/manure/chicken dung fully touched with the hot air,so that have a very good drying effect.
Features of domestic animals manure drier equipment/dried machine
1.) Our no pullution manure dryer for drying wet fertilizer for sale is designed with anti-sticky drum-wall and assembled material-lifting board.
2.) For this no pullution manure dryer for drying wet fertilizer for sale , what worth mentioning is that our rotary drum dryer features convenient installation and transportation as a result of its flange connection.
3.) This no pullution manure dryer for drying wet fertilizer for sale is primarily composed of feeder conveyor, heating furnace, drying device, and air intake and air outlet device, and more.
4.) Our no pullution manure dryer for drying wet fertilizer for sale has the features of low noise, little pollution and good drying effect.
Wet Materials for domestic animals manure drier equipment/dried machine
domestic animals manure drier equipment/dried machine Working principle
non pullution manure dryer for drying wet fertilizer for sale consist of heating device, feeding device, transport device, discharge device, dust extraction device and other connecting parts. For the installation process, the rotary drum dryer should slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the rotary drum dryer under gravity. Material to be dried enters the rotary drum dryer, and as the rotary drum dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the rotary drum dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the rotary drum dryer, passing through the hot gas stream as it falls.

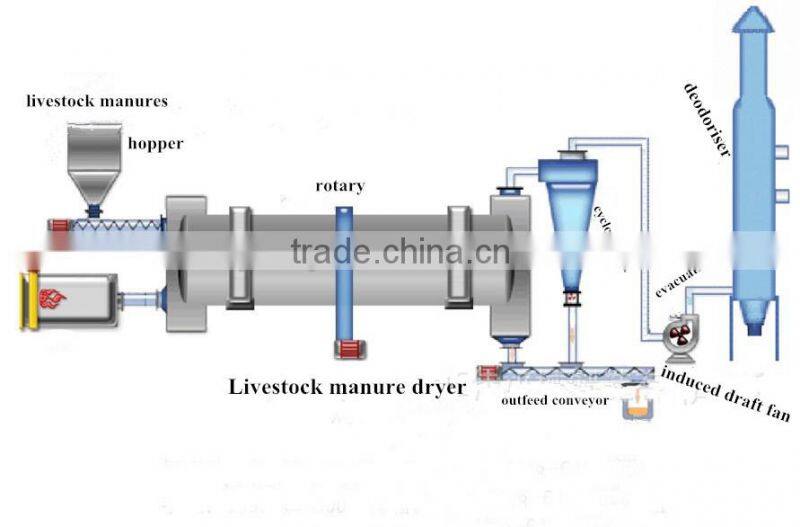

Here is the flow chart of domestic animals manure drier equipment/dried machine
domestic animals manure drier equipment/dried machine Technical parameter
model |
HNDL1610 |
capacity(t/d) |
45 |
evaporation capacity(t/h) |
1.00 |
raw material moisture(%) |
60±5% |
drying material moisture(%) |
12-15%(can be adjusted) |
drying temperature(℃) |
350±50℃ |
motor power(kw) |
55 |
weight(ton) |
21.5 |
area(m2) |
6×16m |

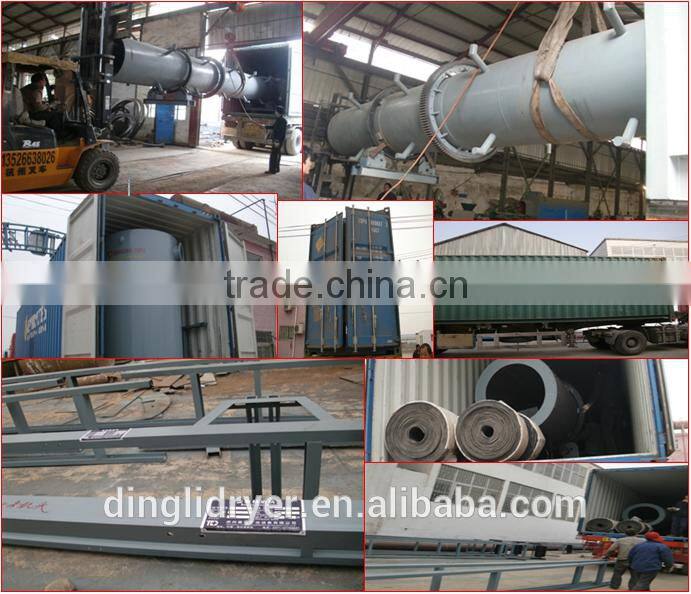

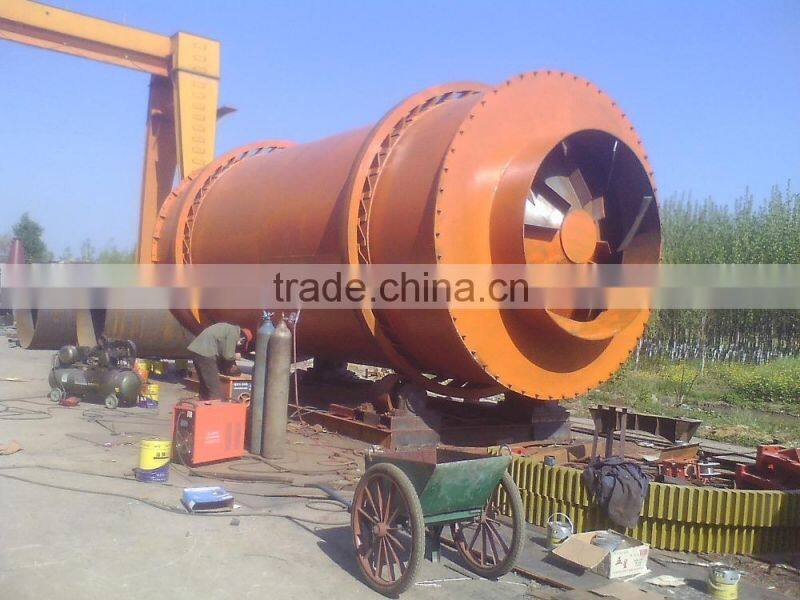

production pictures of domestic animals manure drier equipment/dried machine
1. Before packaged& delivered, we will test no pullution manure dryer for drying wet fertilizer for sale seriously and guarantee the machine runs stably with high accuracy.
2. Air express, air freight, sea tranportation, can be provided by us.
domestic animals manure drier equipment/dried machine Qualification and honour
We have got certification of ISO1400:400 and ISO9001:2008, more than 60 on biomass fuel, 2 research achievement and science & technology award and 1 national innovation funding.
Our service:
1.We are professional manufacturer and have more than 20 years experience as well as engaged in dryer/drying equipment/driers/drying machine.
2.we are responsible for users’ site planning, process design, equipment installation and operation training. And our engineer is available to go overseas install dryer/drying equipment/driers/drying machine for you.
3.warranty:one year for drying waste medicine dregs automatic roller dryer equipment, and long-term supply of parts
1.300000ton/year sawdust pellet production line at Vietnam
duction line site at India
duction line installation site at Indonesia
4.100000 to per year sawdust drying and pelleting production line site at Malaysia
5.pellet machine production site at Chile
6.15000 ton per year sawdust pellet production line at Laos
7.pellet machine production line at Morocco
8.150000 ton/year sawdust pellet production line send to Israel
9.pellet machine installation site at Egypt
10.sawdust pellet production line preassembly site for Russia customer at our company workshop
duction line sit at England
Export to countries abroad
High-tech products not only cover the local market(including Taiwan, Hongkong, Mcao) but also are sold to more than 20 countries like united state, Germany, Britain, Spain.

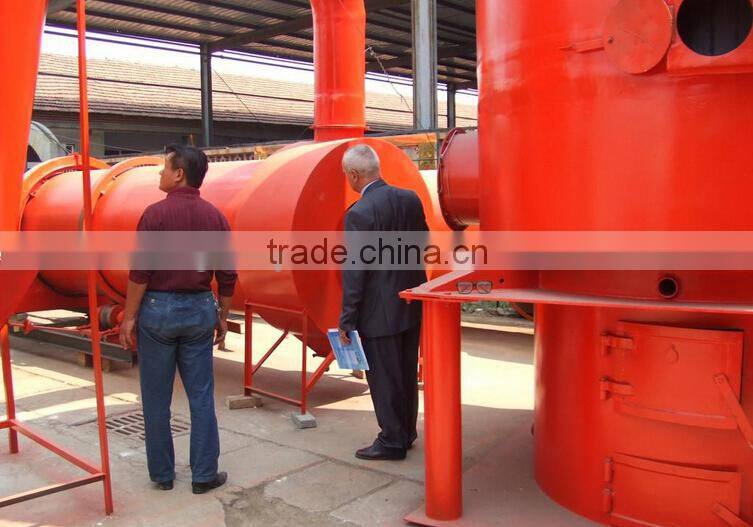

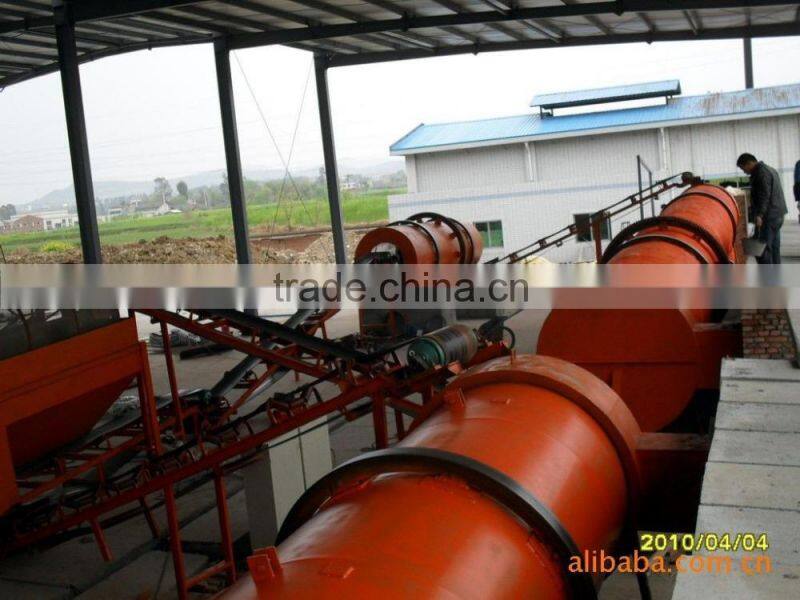

domestic animals manure drier equipment/dried machine customers show
We are Henan Dingli Drying Equipment Co.,Ltd. We manufacturing various dryes mainly for coal drying,lignite drying,sawdust drying, hen dung drying,wood drying,straw drying,sauce drying and many other biomass dryers.The whole equipment system can include, the pellet machine,particles machine and packing machine,dust removing machine,biomass crusher,wood cutting machine and others. The machine can easilly used as fully automated and semi-automatic in intelligent designs.
Your demands about no pullution manure dryer for drying wet fertilizer for sale can be fully considered. Welcome to contact us or visit our factory.
