TK6213 Cheap Price Used CNC Boring Milling Machine with Rotary Table
- 100 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Yunnan, China |
Brand Name: | HHT | Model Number: | TK6213/TK6216 | Voltage: | 220V/380V |
Power(W): | 100kw | Dimension(L*W*H): | 6400*4000*4815mm | Weight: | 33-42TON |
Certification: | CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

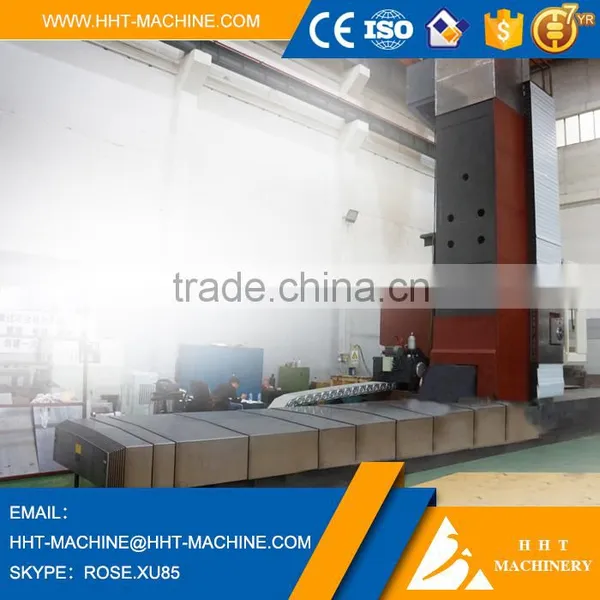

TK6213 Cheap Price Used CNC Boring Milling Machine with Rotary Table

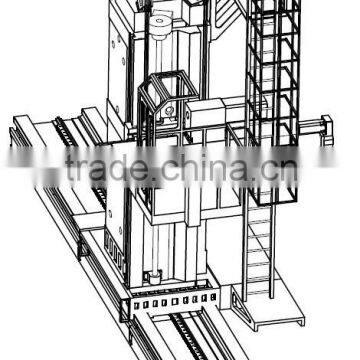

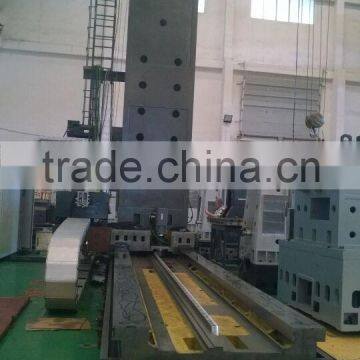

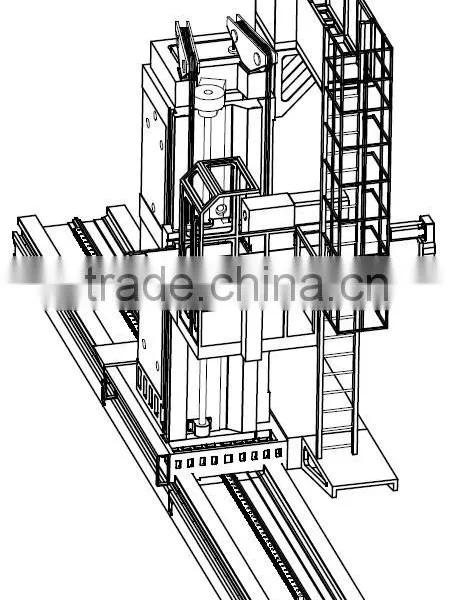

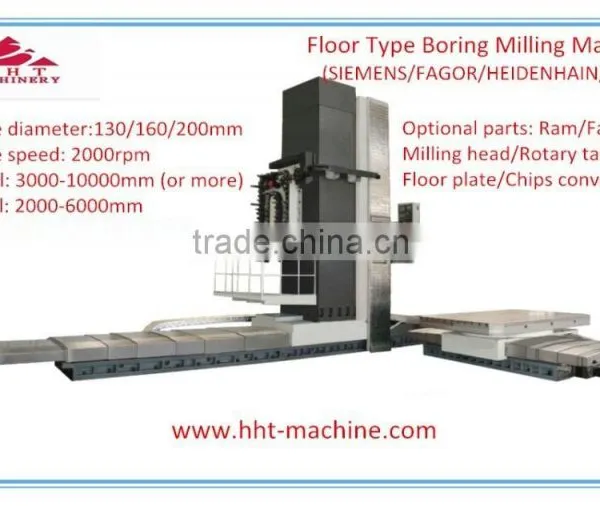

CNC Floor Type Milling Machine
1.ISO/CE
2.Fanuc/Siemens
3.CNC Floor Type Milling Machine
1. what are specifications for our horizontal boring machine for sale, cnc milling boring machine floor type?
MODEL | UNIT | TOM-TK6213 | TOM-TK6216 | ||
HEADSTOCK | Spindle dimater | mm | 130 | 160 | |
Quill diameter | mm | 221.44 | 260 | ||
Taper(7:24) | -- | ISO50 | ISO50 | ||
Too shank | -- | JT50/ OPTIONAL BT50 | JT50/ OPTIONAL BT50 | ||
Pull stud | -- | LD—50D/ OPTIONAL P50T-I | LD—50D/ OPTIONAL P50T-I | ||
Spindle speed (3 steps hydraulic stepless) | rpm | 7~1500 | 7~1500 | ||
Main motor power | kW | 30 | 37 | ||
Max. quill torque | Nm |
|
| ||
Max. spindle torque | Nm | 2865 | 3532 | ||
Max. spindle feeding force | N | 20000 | 35000 | ||
Ram size | mm |
|
| ||
TRAVEL | Max. Column travel(X) | mm | 3000 (or more) | 3000 (or more) | |
Max. headstock travel (Y) | mm | 2000 (optional 1600, 2500) | 2000(optional 1600, 2500) | ||
FEEDING | Cutting feed | X axis | mm/min | 1~4500 | 1~4500 |
Y axis | mm/min | 1~4500 | 1~4500 | ||
Z,W axis | mm/min | 1~2000 | 1~2000 | ||
Feed rate | X axis | mm/min | 8000 | 8000 | |
Y axis | mm/min | 9000 | 9000 | ||
Z,W axis | mm/min | 3000 | 3000 | ||
POSITIONING ACCURACY | X axis | mm | ±0.020/1000 | ±0.020/1000 | |
Y axis | mm | ±0.020/1000 | ±0.020/1000 | ||
Z,W axis | mm | ±0.02 | ±0.02 | ||
REPEATABILITY | X,Y,Z,W axis | mm | ±0.01 | ±0.01 | |
TOTAL POWER | -- | kVA | ABOUT 100 | ABOUT 100 | |
SIZE | L*W*H | mm | 6400*4000*4815 | 9000*8600*5200 | |
WEIGHT | -- | kg | 32000 | 42000 |
2. Some optional accessories for horizontal boring machine for sale, cnc milling boring machine floor type: milling head, chips conveyer, floor plate, face plate; photos as follows
3. what are features for horizontal boring machine for sale, cnc milling boring machine floor type?
Wooden box, or as per customers' requirements.
Before shipment, machines would be painted with rust-proof oil and packed with water-proof material very carefully.
Wooden cases are made of fumigated material and special ordered according to the sizes of different machines. Suitable for transportation and land.
a. Engineers available to customers’ place
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support

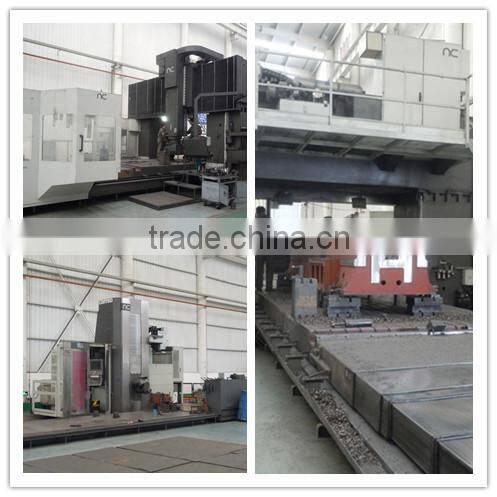

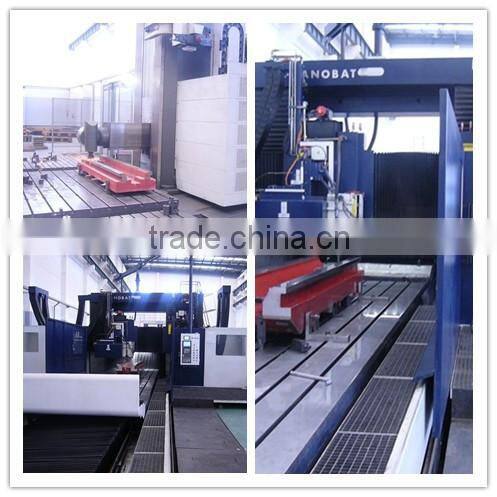

Mother machines in our factory, imported from Spain and Italy

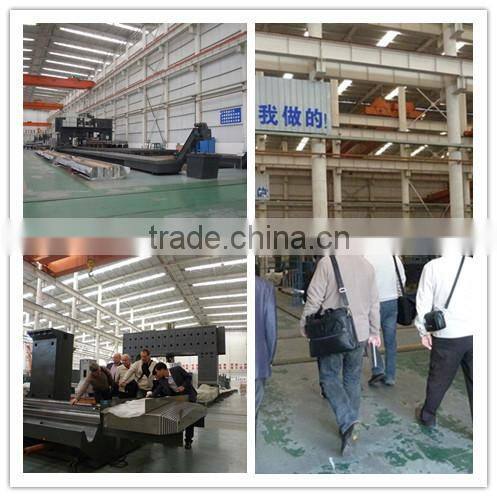

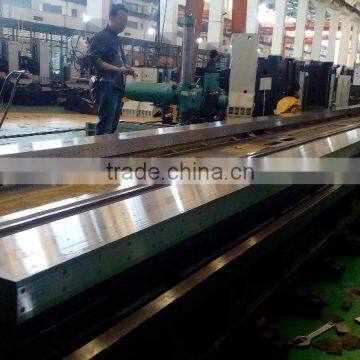

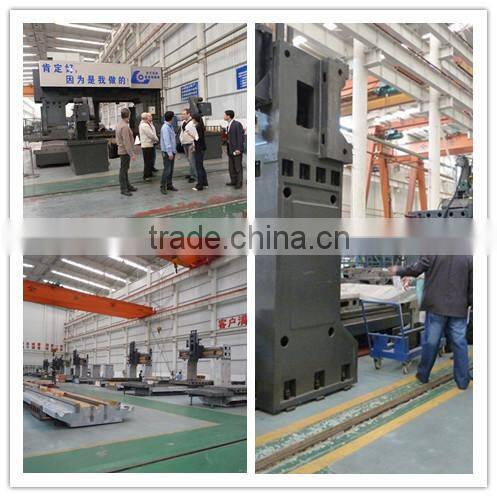

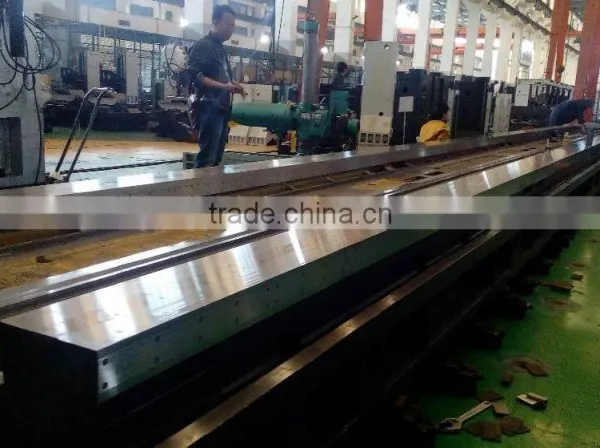

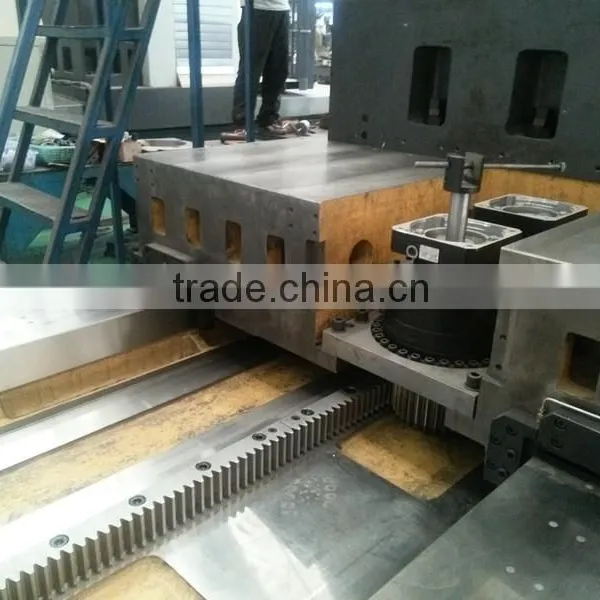

Workshop View
Looking for agents worldwide
With years of development, we have entered into international market and gain good reputation for our machines.
In order to expand our business and bring benefits to our customers as well, our company now is looking for agents worldwide. We have got the agent in Venezuela.
Our company will offer much support for our agents, like discounts for purchasing machines, financial support for taking part in exhibitions, technical support and so on.
And if you have any requirements, please let us know. We will try our best to meet your requirements.
We are looking forward to establish long-term business relationship with you!
PHOTOS FOR EXHIBITIONS IN MOSCOW AND COLUMBIA, JUST FOR YOUR REFERENCE
Q1: how to buy the machines from your company?
A1: 1) please send your inquiry from the bottom of the page, or please call us directly. 2) We will discuss more details after getting in touch with each other.
3) Then we send you INVOICE with our bank account and you pay the money;
4) We start production as soon as we get the money;
5) We deliver the machine by sea to the port in your country.
Q2: what is your payment term?
A2: we prefer 30% TT as deposit and 70% TT before sending machine.
Q3: what is your warranty for the machine?
A3: The warranty for the machine is 12 month. Warranty claim for parts that are replaced free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under warranty.
Q4: Can we visit your factory?
A4: of course! You are the most welcome to visit our factory and check the machines in person. Please let us know your plan before you come, and we will pick you up in the airport or at station.
.............................
If you need more information, plz contact my skype: gege8527 (Amy Ge)
