CTB110 Low cost cnc boring machine for sale, cnc machine boring well
CNC boring milling machine Can Make Your Job Easy
CNC is the short form of computer numerically controlled which refers to a process in which a computer reads code instructions in order to control a tool.
The horizontal boring milling machines can be used for machine casting, steel and non ferrous workpiece drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading and other machining processes.
The boring milling machines can be equipped with accessories like milling head, face plate to enlarge its machining capacity.
These machines are widely used in many industries like energy, transportation,petrochemical machinery.
Why you should have A CNC boring milling machine?
- The cnc boring milling machine is computer controlled, providing greater precision than manual machines and are consistently repeatable across multiple production jobs
- It is possible to achieve identical parts continuously
- CNC boring milling machines can make your job easy considerably by providing accuracy and speed both. It requires minimum human efforts and so the possibilities of workers getting injured in workshops have reduced to a great extent.
- The labor costs can be reduced at a great extent because one operator can operate several.
If you are buying a CNC boring milling machine to make your job easier then that would be a perfect decision for your business
- The foremost thing which you need to be sure of while buying it is the quality. A good quality machine can boost your productivity and a low quality can drop your productivity at a great extent.
- Secondly, you need to ensure that you buy CNC boring milling machine for your workshop from a reliable source.

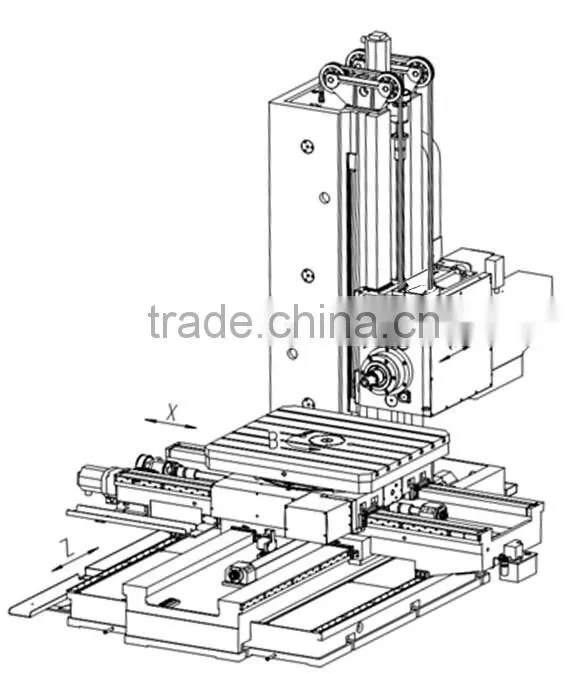

1. what are specifications for our horizontal boring machine?
|
Model Item |
CTB-110 |
|
Spindle diameter (mm) |
110 |
|
Spindle taper (7:24) |
ISO50 |
|
Spindle speed |
10--2800rpm |
|
Too shank |
BT50 |
|
Pull stud |
MAS403 P50T-I |
|
Main motor power |
15 kW |
|
Max. spindle torque |
1450Nm |
|
Max. spindle feeding force |
15000N |
|
Table size (W*L) |
1250*1250mm |
|
Table Loading |
5000kg |
|
Facing head speed |
7--165r/min(optional) |
|
Facing head diameter |
650mm(optional) |
|

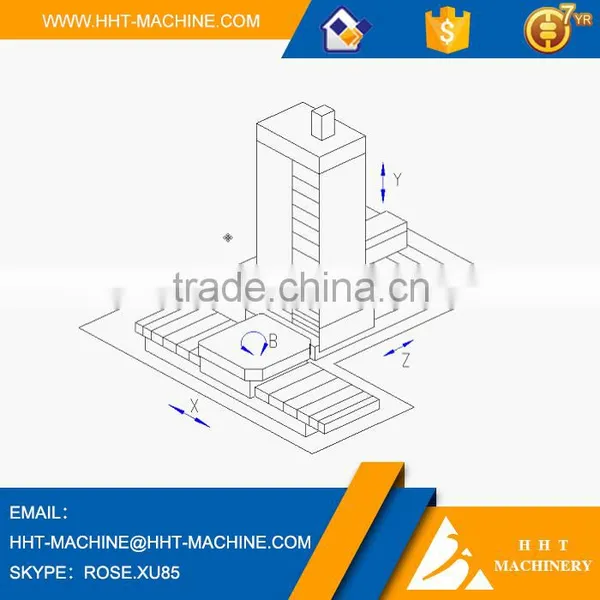

Transverse travel of table X |
1400mm |
|
Vertical travel of headstock Y |
1200mm |
|
Longitudinal travel of table Z |
1200mm |
|
Axial travel of spindle W |
600mm |
|
Facing head travel (U) |
200mm(optional) |
|
|
Feed rate |
X,Y,Z axis |
2.5—3000mm/ |
W axis |
2.5—2000mm/min |
|
B axis |
0.006--1 r/min |
|
U axis |
1--500mm/min ( optional ) |
|
|
Rapid traverse
|
X,Y,Z axis |
5000mm/min |
W axis |
3000mm/min |
|
B axis |
1.3r/min |
|
U axis |
500mm/min(optional ) |
|
|
POSITIONING ACCURACY |
X,Y,Z axis |
0.025mm |
W axis |
0.03mm |
|
B axis |
10″ |
|
U axis |
0.03mm(optional ) |
|
|
REPEATABILITY |
X,Y,Z axis |
0.015mm |
W axis |
0.025mm |
|
B axis |
6″ |
|
U axis |
0.025mm(optional ) |
|
TOTAL POWER |
APPROXIMATE 50 kVA |
|
SIZE |
5100*3900*3800mm(L×W×H) |
|
Weight |
APPROXIMATE 18000 kg |
|
2. Some optional accessories for horizontal boring machine for sale, cnc milling boring machine floor type: milling head, chips conveyer, floor plate, face plate; photos as follows

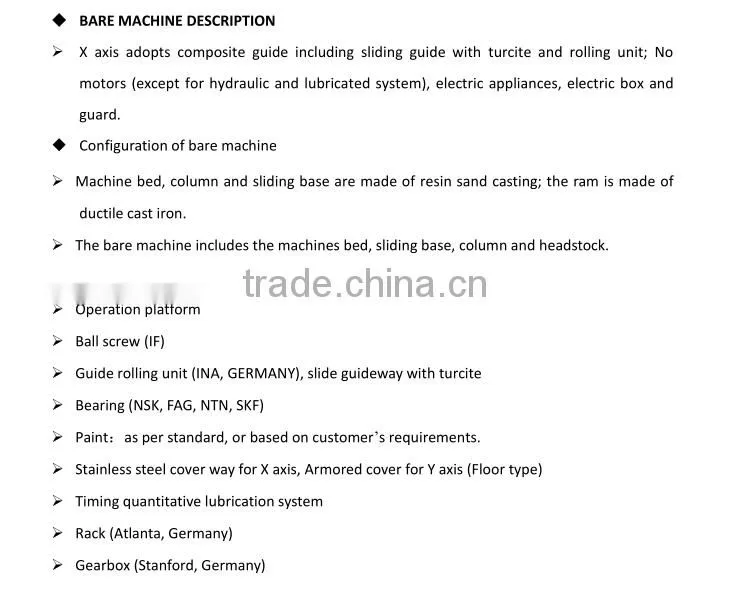

3. what are features for horizontal boring machine?
Wooden box, or as per customers' requirements.
Before shipment, machines would be painted with rust-proof oil and packed with water-proof material very carefully.
Wooden cases are made of fumigated material and special ordered according to the sizes of different machines. Suitable for transportation and land.

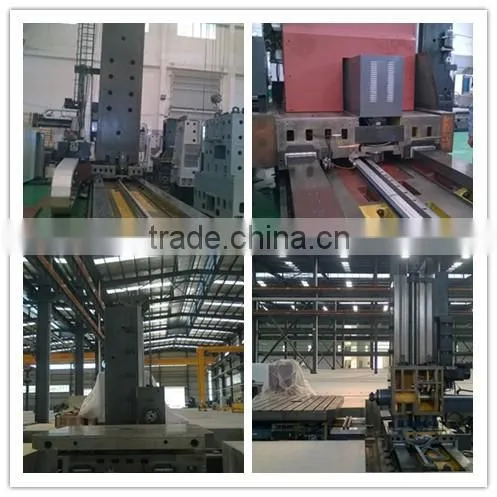

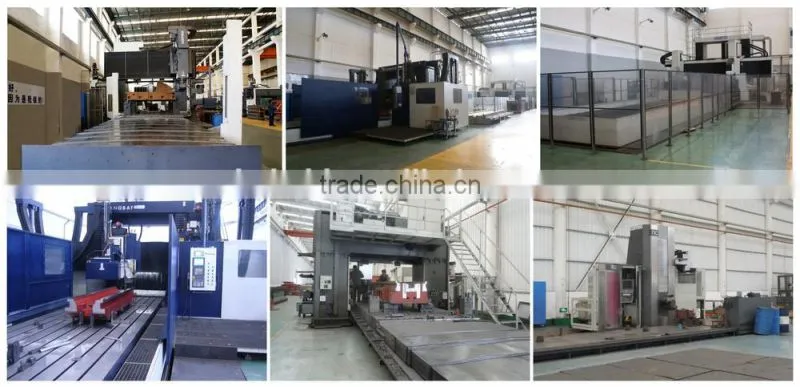

The machines we use for our production, imported from Nicolás Correa Group, Italy and DANOBAT, Spain
Photos at exhibitions
With years of development, we have entered into international market and gain good reputation for our machines.
In order to expand our business and bring benefits to our customers as well, our company now is looking for agents worldwide. We have got the agent in Venezuela.
Our company will offer much support for our agents, like discounts for purchasing machines, financial support for taking part in exhibitions, technical support and so on.
And if you have any requirements, please let us know. We will try our best to meet your requirements.
We are looking forward to establish long-term business relationship with you!
Q1: how to buy the machines from your company?
A1: 1) please send your inquiry from the bottom of the page, or please call us directly. 2) We will discuss more details after getting in touch with each other.
3) Then we send you INVOICE with our bank account and you pay the money;
4) We start production as soon as we get the money;
5) We deliver the machine by sea to the port in your country.
Q2: what is your payment term?
A2: we prefer 30% TT as deposit and 70% TT before sending machine.
Q3: what is your warranty for the machine?
A3: The warranty for the machine is 12 month. Warranty claim for parts that are replaced free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under warranty.
Q4: Can we visit your factory?
A4: of course! You are the most welcome to visit our factory and check the machines in person. Please let us know your plan before you come, and we will pick you up in the airport or at station.
Q5: Do we need to install the machines?
A5: For small machines like VMC and CNC Lathe, there is no need to install. We will send the machines as whole part. For large machines, like Gantry Milling machines and Boring Milling machines, you need to install the machines, or we will send our engineers to your place for installation, if it is necessary.
Q6: How do we get the training for the machines?
A6: You can send your people to our factory and we will offer training free of charge; or we can send our engineer to our place.
Q7: What is the payment term?
A7: we prefer 30% T/T as down payment, and 70% T/T before shipment.
