Home > Consumer Electronics > Display & Accessories > LCD Module > 7 Inch Tft Lcd Panel 50-pin Lcd Display 800x480 ,7" Tft Lcd Display

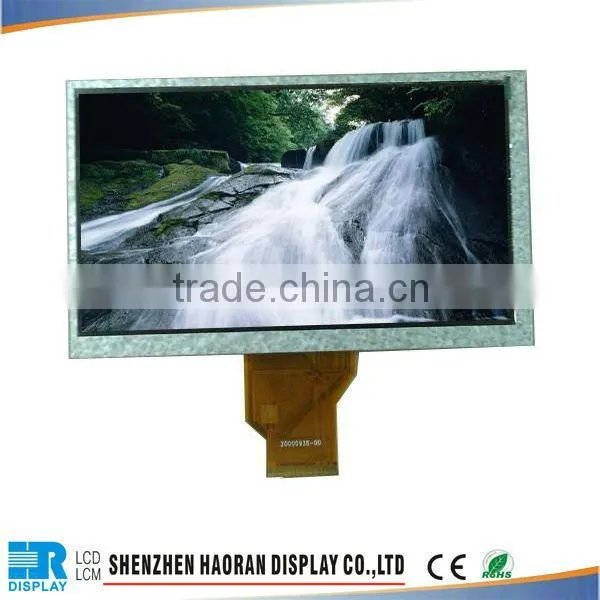

7 Inch Tft Lcd Panel 50-pin Lcd Display 800x480 ,7" Tft Lcd Display
US$ 20 - 25
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hao Ran
Model Number:
HT070AWV50T
Payment & Shipping
Payment Methods:
Port of Shipment:
FCA Shen Zhen/Guang Zhou/ HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
7 Inch Tft Lcd Panel 50-pin Lcd Display 800x480 Tft Lcd DisplayUS$ 20 - 25MOQ: 100 Pieces -

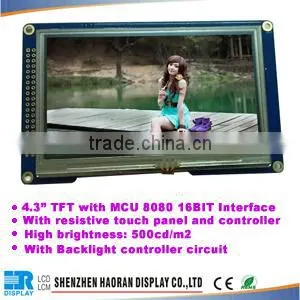

TFT LCD Display Module 4.3 Inch MCU 8Bit 500cd/m2 With Controller SSD1963 With Resistive Touch Screen Full Viewing Angle Quality ChoiceUS$ 18 - 25MOQ: 1 Piece
-
3.5 Inch IPS HVGA TFT Lcd Module Display Lcd PanelUS$ 7 - 10MOQ: 1000 Pieces
-
3.5inch Tft Lcd Display Touch Screen Tft LCD Module,landscape,320*240 Pixels, RGB Interface,SPI InterfaceUS$ 9 - 12MOQ: 100 Pieces
-
5 Inch Capacitive Touch Panel Ssd1963 Smart Board With 480x272 ResolutionUS$ 24.8 - 30.01MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
Hao Ran
Model Number
HT070AWV50T
Type
TFT
Specifications
1-Item: HaoRan 7" LCD Screen
2-Resolution: 800x480
3-Type: White,transmissive
4-Touch panel:Option
5-Landscape type
2-Resolution: 800x480
3-Type: White,transmissive
4-Touch panel:Option
5-Landscape type
| Main Parameters: | |
| Item | HaoRan 7inch lcd screen |
| Model name | HT070AWV50S |
| Display Mode | Normally White,Transmissive |
| Resolution | 800 x3 RGB x480 |
| Technology Type | a-Si TFT active matrix |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Outline Dimension | 164.9(W)x100.0(H)x6.5(D) |
| Active Area(mm) | 154.08(W)x85.92(H) mm |
| Interface | RGB 24Bit |
| Viewing Direction | 6 O'clock |
| Surface treatment: | Anti-Glare |
| Touch Panel | Optional |
| LED Numbers | 15 pcs (300cd/m2) |
| Color Depth | 16.7M color |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~+80°C |
| Similar Products: |
| Hit Products: |
| Product Range |
|
♦ Monochromic LCDs/LCD Modules |
| ◊ VA,TN,HTN,STN,FSTN,DFSTN LCD Panels and its accessory |
| ◊ Graphic,Character,Alphanumeric and In cell touch modules |
| ◊ COB,COG,TAB Package |
| ♦ Color TFT LCD Modules |
| ◊ 1.67inch to 10.4inch color TFT LCD Display |
| ♦ Touch Screen |
| ◊ Capacitive touch screen |
| ◊ Resistive touch screen |
| ♦ For more details pls visit our website / |
| Main Application | |
| Telecommunication Devices | Telephone,interphone,watch,tablet PC,radio,etc |
| Consumer Products | Camera,DVD player,toy, Cell Phone,game player,etc |
| Technical Equipment | Elevator controller,Industrial machine,etc |
| Office Automation | Printer,scanner,attendance machine,fax machine,etc |
| Home Appliances | Air-condition display,refrigerator,electric cooker,video doorbell,etc |
| Automobile | GPS,video player,speedometer,audio broadcast,etc |
| IT Products | Camera,handheld digital video,projector,media play,tablet PC,etc |
| Medical Equipment | Ultrasound machine,therapeutic equipment Blood pressure meter,etc |
| |
| Part Of TFT Products List : | |||||||||
| Model | Display Size | Display Type | Outline size | Active Area | Viewing ANGLE | Driver IC | Interface | Tuch panel | Note |
| HT028C | 2.8 | 240*320 | 50.0*69.2*3.55 | 43.2*57.6 | 12 | ILI9341 | 8080 | Y | 37P |
| HT030K1 | 3.0 | 240*400 | 45.04*77.0*3.45 | 38.88*64.8 | 12 | ILI9327 | 8080 | Y | 40P |
| HT032C | 3.2 | 240*320 | 55.04*77.7*3.6 | 48.6*64.8 | 12 | ILI9341 | 8080 | Y | 37P |
| HT035G | 3.5 | 320*240 | 76.9*63.8*4.5 | 70.08*52.56 | 6 | NT39016D | RGB | Y | 54P |
| HT043B | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | OTA5180 | RGB | Y | 40P/10 LED |
| HT043K1 | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | SSD1963 | 8080 | Y | 30P |
| HT043K2 | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | SSD1963 | 8080 | Y | 30P/with RTP Controller |
| HT050A | 5.0 | 800*480 | 120.8*75.85*4.6 | 108.0*64.8 | 6 | ILI6126C | RGB | Y | 40P |
| HT050B | 5.0 | 480*272 | 120.8*75.85*4.6 | 110.88*62.832 | 6 | ILI6480G | RGB | Y | 40P |
| HT050K1 | 5.0 | 800*480 | 120.8*75.85*4.6 | 108.0*64.8 | 6 | SSD1963 | 8080 | Y | 30P |
| HT070A | 7.0 | 800*480 | 164.9*100.0*3.2 | 154.08*85.92 | 6 | ILI6126C | RGB | Y | 50P |
TFT LCD display Module with SSD1963 lcd controller board with touch panel and touch controller
Complying with RoHS.
Warranty: All parts are tested working well before shipping out
