Home > Consumer Electronics > Display & Accessories > LCD Module > 3.5 Inch IPS HVGA TFT Lcd Module Display Lcd Panel

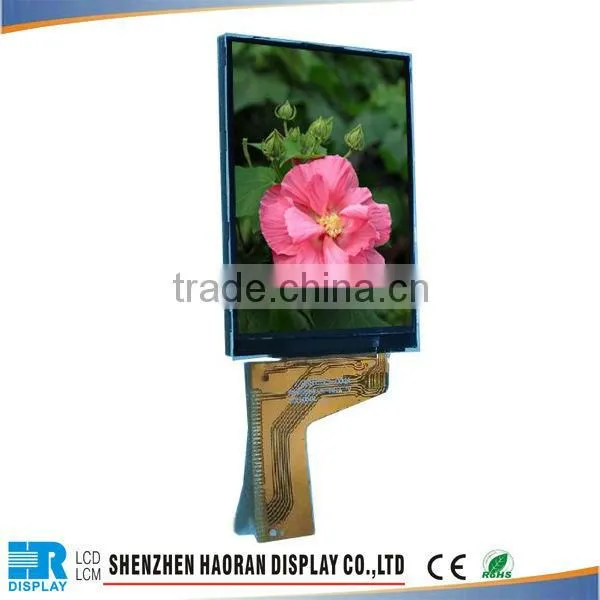

3.5 Inch IPS HVGA TFT Lcd Module Display Lcd Panel
US$ 7 - 10
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HaoRan
Model Number:
HT035C
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3.5inch Tft Lcd Display Touch Screen Tft LCD Module,landscape,320*240 Pixels, RGB Interface,SPI InterfaceUS$ 9 - 12MOQ: 100 Pieces -
5 Inch Capacitive Touch Panel Ssd1963 Smart Board With 480x272 ResolutionUS$ 24.8 - 30.01MOQ: 100 Pieces
-
Shenzhen Factory 3.2 Inch TFT Lcd Module High Quality TFT LCD Screen SPI/8bit/9bit/16bit/18bitUS$ 7 - 10MOQ: 1 Piece
-
3.2 Inch TFT Lcd Module High Quality TFT LCD Screen SPI/8bit/9bit/16bit/18bitUS$ 7 - 10MOQ: 1 Piece
-
5" Display Screen 480x272 Resolution Tft Lcd With Touch PanelUS$ 10 - 12MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
HaoRan
Model Number
HT035C
Type
TFT
Specifications
1-Item: HaoRan 3.5" TFT LCD Module2-Resolution: 320x480
3-Type: IPS
4-Touch panel:Option
High clarity High brightness 3.5inch HVGA IPS TFT lcd module
Specifications
1-Item: HaoRan 3.5inch IPS LCD Screen
2-Resolution: 320RGBx480 (HVGA)
3-Type: IPS
4-Touch panel:Option
5-Landscape type
TFT lcd module display
| Main Parameters: | |
| Item | HaoRan 3.5inch IPS lcd screen |
| Model name | HT035CHV37S |
| Display Mode | IPS |
| Resolution | 320 x3 RGB x480 |
| Technology Type | a-Si TFT active matrix |
| Pixel Pitch (mm) | 0.153(H) x 0.153(V) |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Outline Dimension | 54.58(W)x84.71(H)x2.05(D) |
| Active Area(mm) | 48.96(W)x73.44(H) mm |
| Interface | MCU 8080 8Bit/16Bit Parallel |
| Viewing Direction | ALL |
| Surface treatment: | Anti-Glare |
| Touch Panel | Optional |
| Backlight | 8 LED in-parallel |
| Color Depth | 16.7M color |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~+80°C |
| Product Range |
|
♦ Monochromic LCDs/LCD Modules |
| ◊ VA,TN,HTN,STN,FSTN,DFSTN LCD Panels and its accessory |
| ◊ Graphic,Character,Alphanumeric and In cell touch modules |
| ◊ COB,COG,TAB Package |
| ♦ Color TFT LCD Modules |
| ◊ 1.67inch to 10.4inch color TFT LCD Display |
| ♦ Touch Screen |
| ◊ Capacitive touch screen |
| ◊ Resistive touch screen |
| ♦ For more details pls visit our website / |
| Main Application | |
| Telecommunication Devices | Telephone,interphone,watch,tablet PC,radio,etc |
| Consumer Products | Camera,DVD player,toy, Cell Phone,game player,etc |
| Technical Equipment | Elevator controller,Industrial machine,etc |
| Office Automation | Printer,scanner,attendance machine,fax machine,etc |
| Home Appliances | Air-condition display,refrigerator,electric cooker,video doorbell,etc |
| Automobile | GPS,video player,speedometer,audio broadcast,etc |
| IT Products | Camera,handheld digital video,projector,media play,tablet PC,etc |
| Medical Equipment | Ultrasound machine,therapeutic equipment Blood pressure meter,etc |
| |
| Part Of TFT Products List : | |||||||||
| Model | Display Size | Display Type | Outline size | Active Area | Viewing ANGLE | Driver IC | Interface | Tuch panel | Note |
| HT024A | 2.4 | 240*320 | 42.72*60.26*3.5 | 36.72*48.96 | 12 | ILI9341 | 8080 | Y | 37P |
| HT028C | 2.8 | 240*320 | 50.0*69.2*3.55 | 43.2*57.6 | 12 | ILI9341 | 8080 | Y | 37P |
| HT030K1 | 3.0 | 240*400 | 45.04*77.0*3.45 | 38.88*64.8 | 12 | ILI9327 | 8080 | Y | 40P |
| HT032C | 3.2 | 240*320 | 55.04*77.7*3.6 | 48.6*64.8 | 12 | ILI9341 | 8080 | Y | 37P |
| HT035C | 3.5 | 320*480 | 54.58*84.71*2.0 | 48.96*73.44 | IPS | ILI9488 | 8080 | N | 37P |
| HT035G | 3.5 | 320*240 | 76.9*63.8*4.5 | 70.08*52.56 | 6 | NT39016D | RGB | Y | 54P |
| HT043B | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | OTA5180 | RGB | Y | 40P/10 LED |
| HT043C | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | OTA5180 | RGB | Y | 40P/7 LED |
| HT043K1 | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | SSD1963 | 8080 | Y | 30P |
| HT043K2 | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | SSD1963 | 8080 | Y | 30P/with RTP Controller |
| HT050A | 5.0 | 800*480 | 120.8*75.85*4.6 | 108.0*64.8 | 6 | ILI6126C | RGB | Y | 40P |
| HT050B | 5.0 | 480*272 | 120.8*75.85*4.6 | 110.88*62.832 | 6 | ILI6480G | RGB | Y | 40P |
| HT050K1 | 5.0 | 800*480 | 120.8*75.85*4.6 | 108.0*64.8 | 6 | SSD1963 | 8080 | Y | 30P |
| HT050K2 | 5.0 | 480*272 | 120.8*75.85*4.6 | 110.88*62.832 | 6 | SSD1963 | 8080 | Y | 30P |
| HT070A | 7.0 | 800*480 | 164.9*100.0*3.2 | 154.08*85.92 | 6 | ILI6126C | RGB | Y | 50P |
Complying with RoHS.
Warranty: All parts are tested working well before shipping out .
