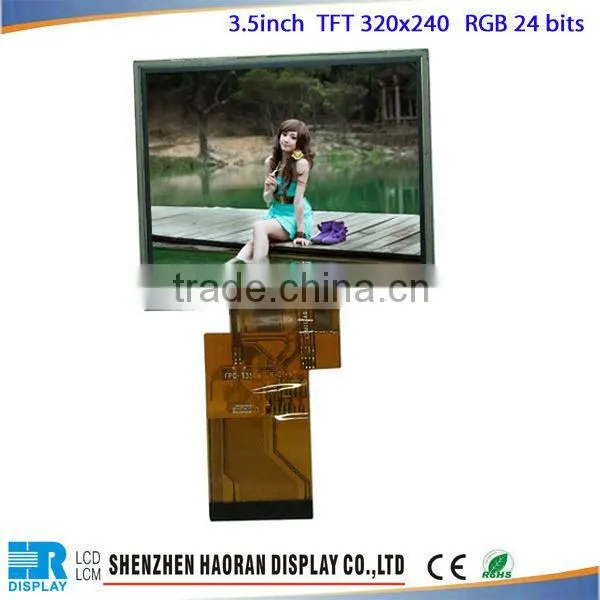

3.5inch Tft Lcd Display Touch Screen Tft LCD Module,landscape,320*240 Pixels, RGB Interface,SPI Interface
US$ 9 - 12
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hao Ran
Model Number:
HT035HQV54T
Payment & Shipping
Payment Methods:
Port of Shipment:
FCA Shen Zhen/Guang Zhou/ HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 Inch Capacitive Touch Panel Ssd1963 Smart Board With 480x272 ResolutionUS$ 24.8 - 30.01MOQ: 100 Pieces -
Shenzhen Factory 3.2 Inch TFT Lcd Module High Quality TFT LCD Screen SPI/8bit/9bit/16bit/18bitUS$ 7 - 10MOQ: 1 Piece
-
3.2 Inch TFT Lcd Module High Quality TFT LCD Screen SPI/8bit/9bit/16bit/18bitUS$ 7 - 10MOQ: 1 Piece
-
5" Display Screen 480x272 Resolution Tft Lcd With Touch PanelUS$ 10 - 12MOQ: 100 Pieces
-
5.0inch 480x272 Tft Lcd Display Module With Ssd1963 Controller 8/16bit With Resistive Touch Panel 30pins ConnectorUS$ 20 - 28MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
Hao Ran
Model Number
HT035HQV54T
Type
TFT
Specifications
3.5 inch lcd module tft lcd display module1.320x240 pixels
2.24 bit RGB interface
3.Touch panel optional
4.NT39016D ic,
Specifications:
| Main Parameters: | |
| Item | HaoRan 3.5inch lcd screen |
| Model name | HT035GQV54T |
| Display Mode | Normally White,Transmissive |
| Resolution | 320 x3 RGB x 240 |
| Technology Type | a-Si TFT active matrix |
| Pixel Pitch (mm) | 0.219(H) x 0.219(V) |
| Pixel Configuration | R.G.B. Vertical Stripe |
| Outline Dimension | 76.90(W)x63.8(H)x3.3(D) |
| Active Area(mm) | 72.88(W)x55.36(H) mm |
| Interface | Digital R.G.B 24bit |
| Viewing Direction | Wide viewing angle |
| Surface treatment: | Anti-Glare |
| Touch Panel | Optional |
| LED Numbers | 6 pcs |
| Color Depth | 16.7M color |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~+80°C |
| Brightness | 300cd/m2 |
| Product Range |
|
♦ Monochromic LCDs/LCD Modules |
| ◊ VA,TN,HTN,STN,FSTN,DFSTN LCD Panels and its accessory |
| ◊ Graphic,Character,Alphanumeric and In cell touch modules |
| ◊ COB,COG,TAB Package |
| ♦ Color TFT LCD Modules |
| ◊ 1.67inch to 10.4inch color TFT LCD Display |
| ♦ Touch Screen |
| ◊ Capacitive touch screen |
| ◊ Resistive touch screen |
| ♦ For more details pls visit our website / |
| Main Application | |
| Telecommunication Devices | Telephone,interphone,watch,tablet PC,radio,etc |
| Consumer Products | Camera,DVD player,toy, Cell Phone,game player,etc |
| Technical Equipment | Elevator controller,Industrial machine,etc |
| Office Automation | Printer,scanner,attendance machine,fax machine,etc |
| Home Appliances | Air-condition display,refrigerator,electric cooker,video doorbell,etc |
| Automobile | GPS,video player,speedometer,audio broadcast,etc |
| IT Products | Camera,handheld digital video,projector,media play,tablet PC,etc |
| Medical Equipment | Ultrasound machine,therapeutic equipment Blood pressure meter,etc |
| |
| Part Of TFT Products List : | |||||||||
| Model | Display Size | Display Type | Outline size | Active Area | Viewing ANGLE | Driver IC | Interface | Tuch panel | Note |
| HT028C | 2.8 | 240*320 | 50.0*69.2*3.55 | 43.2*57.6 | 12 | ILI9341 | 8080 | Y | 37P |
| HT035C | 3.5 | 320*480 | 54.58*84.71*2.0 | 48.96*73.44 | IPS | ILI9488 | 8080 | N | 37P |
| HT035G | 3.5 | 320*240 | 76.9*63.8*4.5 | 70.08*52.56 | 6 | NT39016D | RGB | Y | 54P |
| HT043B | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | OTA5180 | RGB | Y | 40P/10 LED |
| HT043C | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | OTA5180 | RGB | Y | 40P/7 LED |
| HT043K1 | 4.3 | 480*272 | 105.5*67.2*3.95 | 95.04*53.86 | 6 | SSD1963 | 8080 | Y | 30P |
| HT050A | 5.0 | 800*480 | 120.8*75.85*4.6 | 108.0*64.8 | 6 | ILI6126C | RGB | Y | 40P |
| HT050B | 5.0 | 480*272 | 120.8*75.85*4.6 | 110.88*62.832 | 6 | ILI6480G | RGB | Y | 40P |
| HT050K1 | 5.0 | 800*480 | 120.8*75.85*4.6 | 108.0*64.8 | 6 | SSD1963 | 8080 | Y | 30P |
| HT070A | 7.0 | 800*480 | 164.9*100.0*3.2 | 154.08*85.92 | 6 | ILI6126C | RGB | Y | 50P |
Complying with RoHS.
Warranty: All parts are tested working well before shipping out .
