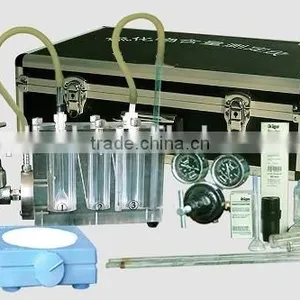

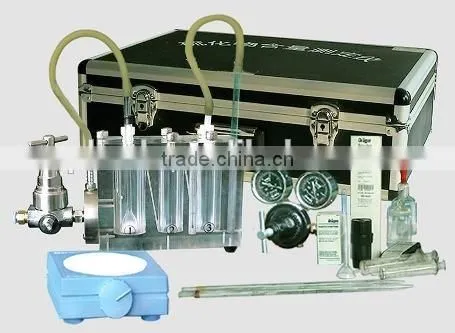

Help CenterSulfide Content Analyzer
Related Products
-
Sakamoto Soil Content of the Test BoxUS$ 338.00 - 338.00MOQ: 1 Set -
Mud Three-pieceUS$ 148.00 - 148.00MOQ: 1 Box
-
Drilling Fluid Solid Content Measuring InstrumentUS$ 566.00 - 566.00MOQ: 1 Set
-
ViscosityUS$ 10.00 - 10.00MOQ: 1 Set
-
Field Drilling Fluid Analysis Instrument CaseUS$ 2030.00 - 2030.00MOQ: 1 Set
I. Overview
Soluble sulphide content in the drilling fluid can be used to determine the instrument. Soluble sulfides including hydrogen sulfide (H2S), sulfur ion (S-2) and hydrogen sulfide ions (HS-). In Garrett gas separator mud filtrate acidified, so that all of the sulfide into H2S, is foamed through the sample and carrier gas brought out. Garrett gas separator to separate the gas from the liquid. Air flow through a hydrogen sulfide (H2S) along its length and the role of blackened Dräger tube. Blackened length is proportional to the total amount of mud filtrate sulfide. Dräger tube for low concentration range from white to dark brown; used for high concentration range Dräger tube from light blue to black smoke. Typically mud contaminants do not cause the color change.
Second, the model and specifications
QTH type
Third, the main technical parameters of the instrument
The main technical parameters
| no | name | technical parameters |
| 1 | Gas separation chamber body 1 | Diameter 38mm height 90mm |
| 2 | No. 2 gas separation chamber body | Diameter 30mm height 90mm |
| 3 | No. 3 greenhouse gas separation body | Diameter 30mm height 90mm |
| 4 | Gas separation passage | Diameter 2mm |
| 5 | DrägerH2S for low concentration range of the analyzer tube | Labeled H2S 100 / a |
| 6 | DrägerH2S for low concentration range of the analyzer tube | Marked with H2S 0.2% / a |
Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is a viscometer, filtration device, roller furnace, high-speed mixer, Viscosity detector and other professional production and processing company, has a complete and scientific quality management system. Integrity, strength and quality of products Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is recognized by the industry. Welcome friends to visit, guidance and business negotiation
Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd., founded in 2006, specializes in manufacturing series of oil slurry analytical instruments and accessories, which are widely used in major scientific research, oil drilling, oil and chemical additives in colleges.
I produced the high-quality products to meet domestic demand basis exported to many countries of the Sudan, Saudi Arabia, Iran, India and Uzbekistan.
Companies with a sound quality management system, and in accordance with API standard development and production of drilling fluids, completion fluids testing equipment.
Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is a viscometer, filtration device, roller furnace, high-speed mixer, Viscosity detector and other professional production and processing company, has a complete and scientific quality management system. Integrity, strength and quality of products Qingdao Best Investor Petroleum Machinery Manufacturing Co., Ltd. is recognized by the industry. Welcome friends to visit, guidance and business negotiation
