Coir Pith Dryer Coco peat Dryer Coco Block Dryer Coco pith dryer coir peat coir clock drier bagasse
1. Simple Description
A: Henan drying coconut dust/chaff dryer coconut fiber drying machine is shaped as a horizontally inclined rotating cylinder.
B: Coconut chaff/dust/fiber is feed at feed port and discharged at the output port . In direct -type rotary dryer (cylinder drier), hot air move through the cylinder in direct contact with the material in the dryer, either downstream or against the direction of its flow. The machine is equipped with scatters equipment, make coconut chaff/fiber/dust fully touched with the hot air,so that have a very good drying effect.
2. Usage
==Drying coconut dust/chaff dryer coconut fiber drying machine is used for drying materials with a certain humidity lightweight material, such as bean dregs, wood chips,cassava dregs,Marc,distiller's grains,and others. Our special design equipment has a strong adaptability of materials and it can dry various materials.
==This type equipment operation is very simple and liable. Also our professional equipment has playing important role in various drying industries,this machine is used for drying materials with humidity or granularity in theindustries of mineral dressing, building material, metallurgy and conut chaff rotary dryer can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.
3.machine features:
1.) Our coconut shell drying machine is designed with anti-sticky drum-wall and assembled material-lifting board.
2.)This type drier machine,what worth mentioning is that our coconut shell dryer features convenient installation and transportation as a result of its flange connection.
3.)This drying equipment is primarily composed of feeder conveyor, heating furnace, drying device, and air intake and air outlet device, and more.
4.)Our coconut shell drier machine has the features of low noise, little pollution and good drying effect.
4. Working principle

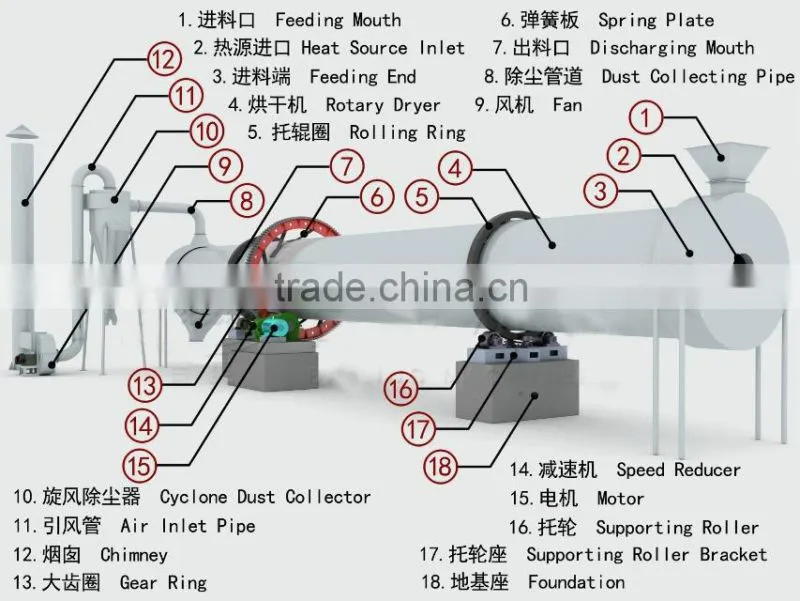

Drying coconut dust/chaff dryer coconut fiber drying machine is consist of heating device,feeding device,transport device,discharge device,dust extraction device and other connecting parts .
For the installation process, the rotary drum dryer should slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the rotary drum dryer under gravity . Material to be dried enters the rotary drum dryer ,and as the rotary drum dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the rotary drum dryer . When the material gets high enough to roll back off the fins, it falls back down to the bottom of the rotary drum dryer , passing through the hot gas stream as it falls.
5. Technical parameters
Model |
Dryer body size(m) |
Capacity (T/h) |
Moisture (%) |
Moisture after drying(%) |
motor(kw) |
GT1.6-16.5 |
Φ1.6*16.5 |
3-5T/h |
20±3 |
≤10 |
57 |
GT1.8-18 |
Φ1.8*18 |
5-7T/h |
20±3 |
≤10 |
60.5 |
GT2-20 |
Φ2.0*20 |
7-10T/h |
20±3 |
≤10 |
80 |
GT2.2-20 |
Φ2.2*20 |
10-15T/h |
20±3 |
≤10 |
95 |
GT2.5-22 |
Φ2.5*22 |
15-20T/h |
20±3 |
≤10 |
108.5 |

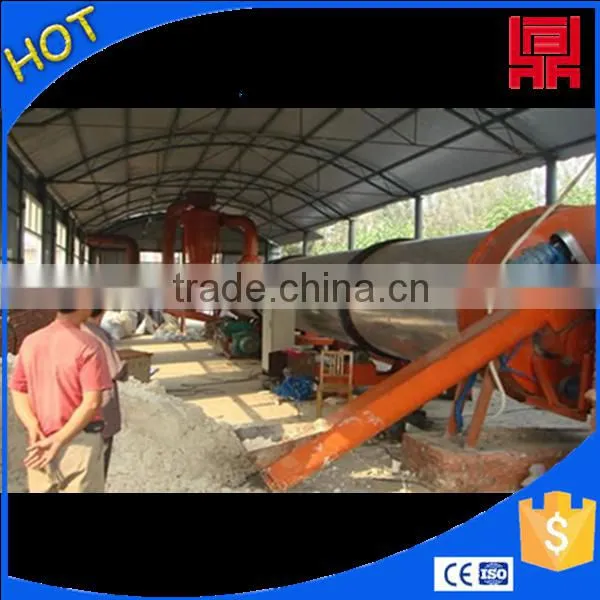

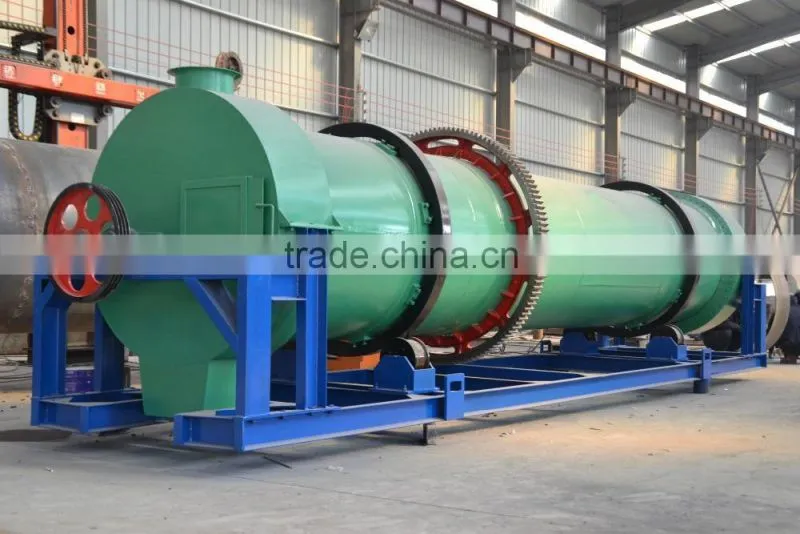

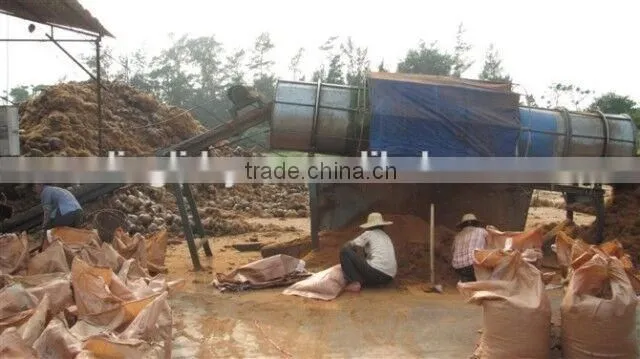

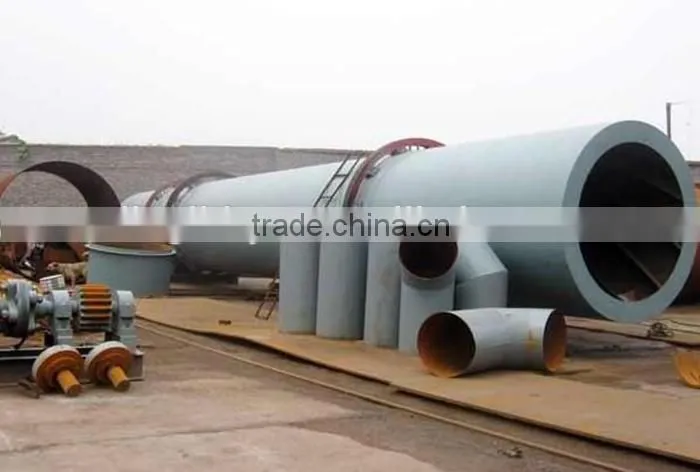

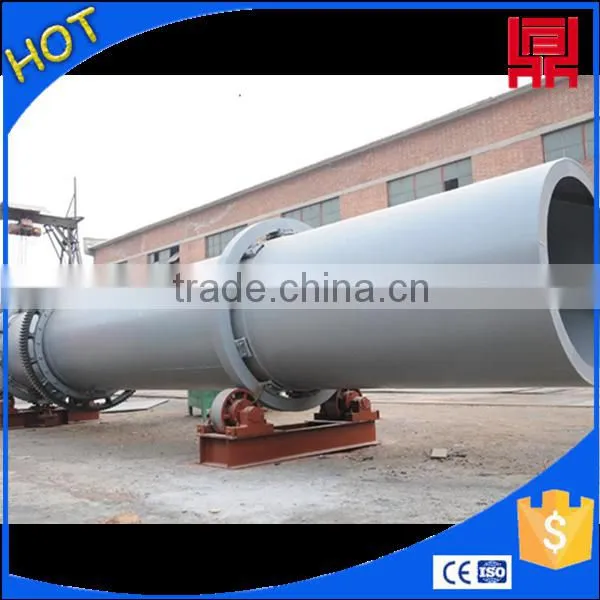

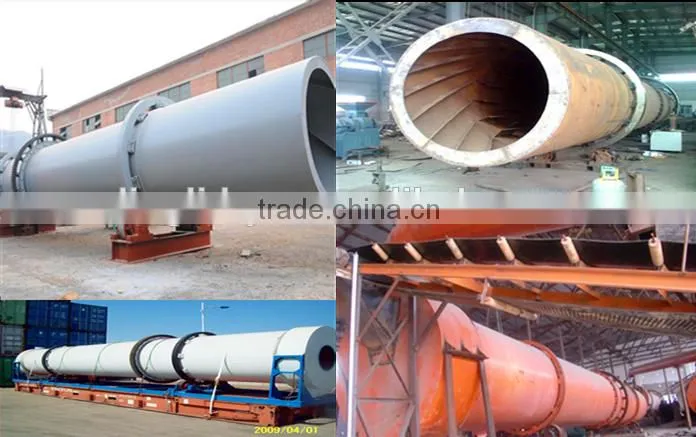

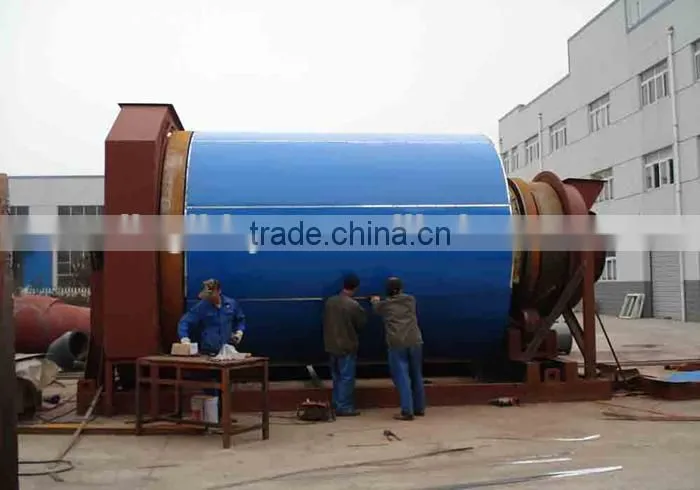

picture show of drying equipment, coconut shell dryer

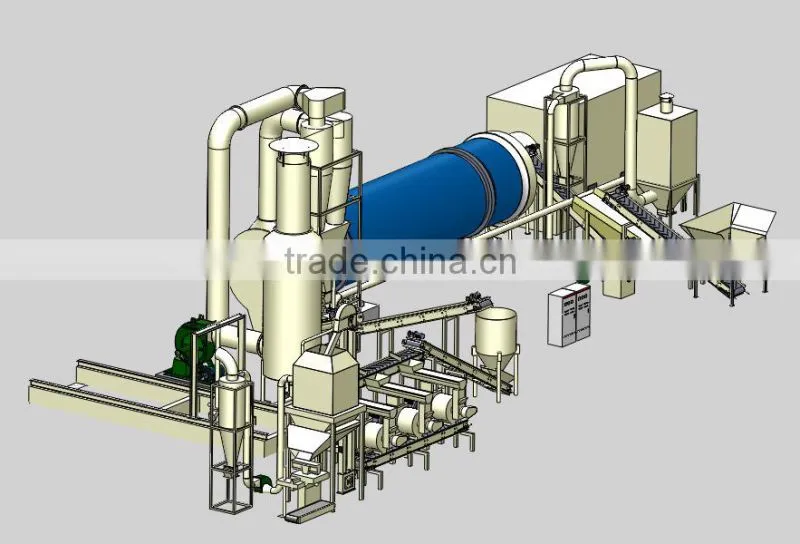

Flow chart of drying equipment, coconut shell dryer

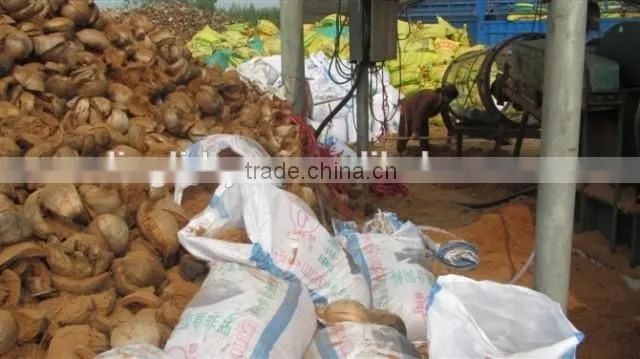

suitable material
We have got certification of ISO1400:400 and ISO9001:2008, more than 60 on biomass fuel, 2 research achievement and science & technology award and 1 national innovation funding.
Our service:
1.We are professional manufacturer and have more than 20 years experience as well as engaged in coconut shell/chaff/dust/fiber drier machine.
2.we are responsible for users’ site planning, process design, equipment installation and operation training. And our engineer is available to go overseas install coconut shell/fiber dryer machine for you.
3.warranty:one year for drying coconut fiber/chaff/dust/shell drying machinery, and long-term supply of parts
1. Prepare 30% of the total payment, pay 60% of the total payment before delivery the equipment, pay up after the system operate normally;
2. Delivery time according to the client’s requirement and production arrangement;
3. Life-long maintenance( only charge the costs);
4. We provide products quality guarantee, free installation and debugging, deal with the consignment, and always put credit first. Higher Quality, better services and lower price!
More details pls feel free to contact me.
