Dry biomass fuel disc pelletizer ring die granule machine
Description of disc pelletizer ring die granule machine
Biomass granule and straw pellet machine price is the process of making waste biomass materials into solid fuel. The objects are used for burning purposes. Wood Pellet is one of the most commonly used pelletizing materials.
Wood Pellet can be made from any type of Agriculture and forestry waste:
Groundnut-shell • Sugarcane Biogases • Caster Shells/Stalk • Saw dust • Coffee Husk • Paddy Straw • Sunflower Stalk • Cotton Stalks • Tobacco waste • Mustard Stalk • Jute waste • Bamboo Dust • Tea waste • Wheat Straw • Palm husk • Soybeans husk • Coir Pitch Barks/Straws • Rice Husks • Forestry wastes • Wood Chips and many other Agro wastes.
The raw material moisture content of factory sale biomass granule and straw pellet machine price should be Less than 12%, grain size is below 5*5mm.
===Factory Breif Introduction
Henan Dingli Drying Equipment Co.,Ltd,located at No.59,Dongda Street,Guancheng Dist.,Zhengzhou,China.We are the expert and the biggest factory of manufacturing various drying machine equipments as rotary drum dryer,coal dryer,mining drying machine and biomass dryer,applied for coal,wood,biomass,manure,food,grain,decoction,straw and others,equiped with conveyor, crusher or grinder,heater or burner,dust collector or removing,pellet mill and packing machine.

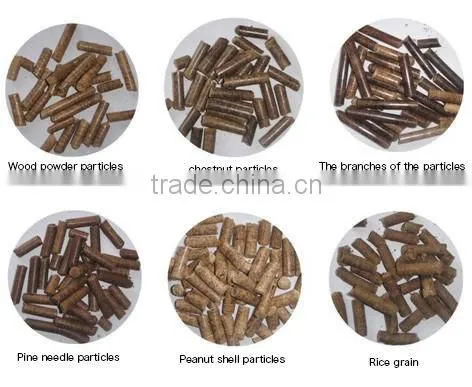

Suitable material of disc pelletizer ring die granule machine

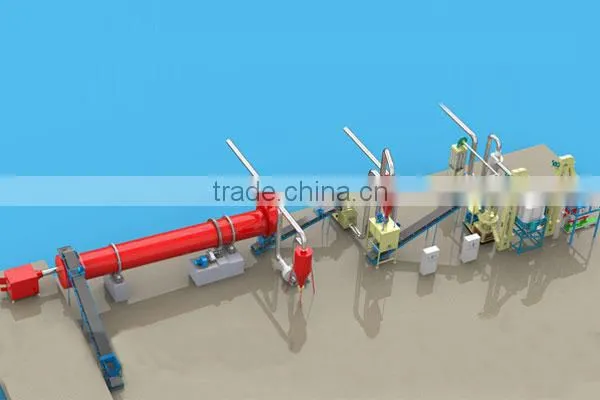

Flowcharts of disc pelletizer ring die granule machine
Raw Material Pulverizing System/ Drying System Pelleting System/Cooling /Sieving /Bagging systemWood Pellet

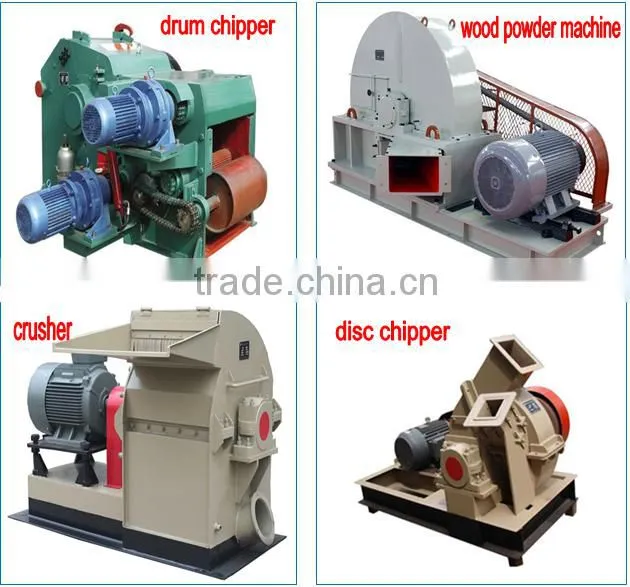

(1). Crushing Process:
When the thickness of raw wood material is >10mm, and >50 * 50mm(L * W), that need use the Wood Chipper to chip them into small pieces, then crush the small pieces into wood powder with diameter less than 3mm by Hammer Mill (Crusher).
(2). Drying Process:

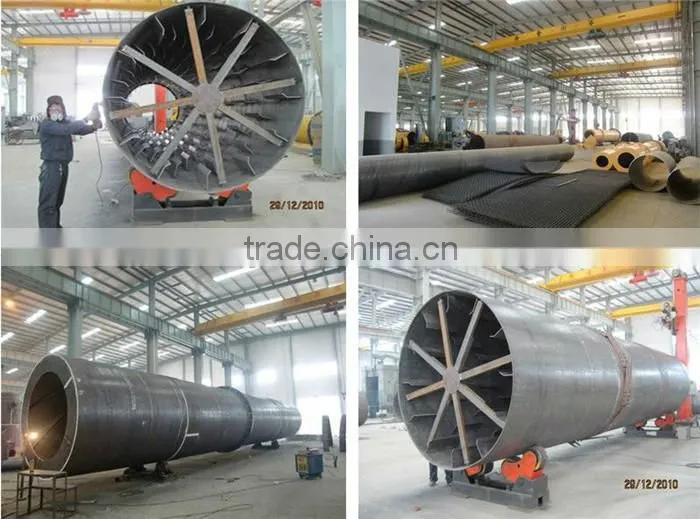

The best moisture content to pelletize is about 13-15%. Our Rotary Dryer is made up of Stove and Main Rotary Dryer, which can reduce the moisture from 60% to 10%. Our stove is fueled by sawdust, wasted wood, coal, which can save electricity consumption largely. Our Rotary Dryer is specially designed for energy saving purpose, the outside of the dryer is covered with special cotton material sheet to prevent the heat from outrunning.
(3). Pelletizing Process of factory sale biomass granule and straw pellet machine price :
MZLH factory sale biomass granule and straw pellet machine price is a most important equipment, which have the following features:
The lubrication system for wood pellet lines adopt the tracing and inspecting system controlled by the microcomputer. When the temperature of the bearing is over the normal temperature, the microcomputer will start the Auto-Lubrication System to lubricate the bearings, which completely solve the trouble of lubricating roller depending on the operation experience. The Lubrication System is made up of the tracing and inspecting system controlled by the microcomputer, auto-lubricating system on time and compelled lubricating system by hand.

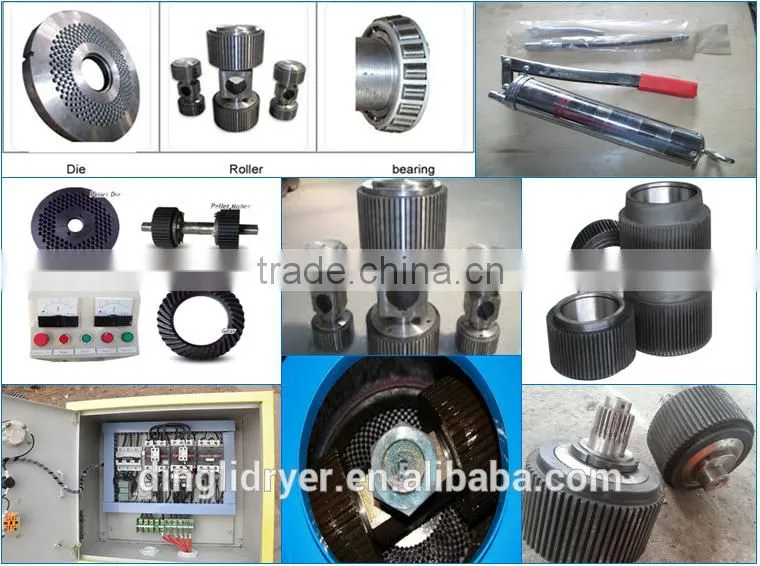

Driving Gear adopts the high precision gear transmission structure. The wear bearing is SKF from Sweden. The ring die adopts the hoop fastening method, which is increasing the speed of discharge comparing with the past bolt fastening method. As a result, the capacity is 10-15% higher than the belt transmission structure.
As per the factory offer poultry pellet mill feed machinery quotation , we have the fine machining with the alloyed steel. And our heating treatment is also different from the other domestic manufacturers. Our carburizing treatment make the depth of hard facing to 2mm, which improve the anti-abrasion of the ring die and roller more than 10 times, and factory sale biomass granule and straw pellet machine price can save the production cost heavily.
(4). Cooling Process:
After the pelletizing process, the temperature of the wood pellet is about 60-80 degree, and the moisture content of the wood pellet is about 15%, so we need use Cooler to reduce about 3-4% moisture, so that the wood pellet will be easy to store. But considering the feedback from some foreign clients, the local climate is very humidity; they hope to cool the wood pellet with moisture 7-8%. In order to satisfy the different need from different clients, we develop one kind of new Stabilizer Combined with Cooler.
(5).Packing Process:
After cooling, the wood pellet will not directly enter into the fuel process to avoid the wood pellet effected by damp. The packing process is necessary. In this process, we assemble our domestic best Semi-Auto Packing Machine for you.Generally, most clients needs one small weight range scale with auto sealing packing machine, and one large weight range scale with semi-auto packing machine. For the first one, the weight range will be 15-25kgs per bag, and for large scale, it will be 1000kgs per bag or 800kgs per bag, up to different clients needs.
Note:During the complete wood pellet line, the Dust Filtering is one heavy and important task. We assemble the Common Dust Collector(known as cyclon) and Impulse Dust Filter, for the exhausting air, we use Water Film Dust Collector to get to the free dust situation in the process of Drying and Cooling for which generate plenty of dust in the working time.
Dingli is the biggest factory and manufacturer of factory sale biomass granule and straw pellet machine price , who have specialized in the design of Wood Pellet Line. We offer factory offer poultry pellet mill feed machinery quotation with High quality,best service.
some successful cases of disc pelletizer ring die granule machine
1.300000ton/year sawdust pellet production line at Vietnam
duction line site at India
duction line installation site at Indonesia
4.100000 to per year sawdust drying and pelleting production line site at Malaysia
5.pellet machine production site at Chile
6.15000 ton per year sawdust pellet production line at Laos
7.pellet machine production line at Morocco
8.150000 ton/year sawdust pellet production line send to Israel
9.pellet machine installation site at Egypt
10.sawdust pellet production line preassembly site for Russia customer at our company workshop
duction line sit at England
Export to countries abroad of disc pelletizer ring die granule machine
High-tech products not only cover the local market(including Taiwan, Hongkong, Mcao) but also are sold to more than 20 countries like united state, Germany, Britain, Spain.
Relevant certifications in disc pelletizer ring die granule machine
We have got certification of ISO1400:400 and ISO9001:2008, more than 60 on biomass fuel, 2 research achievement and science & technology award and 1 national innovation funding.
Our service:
1.We are professional manufacturer and have more than 20 years experience as well as engaged in biomass fuel pellet making machine production line.
2.we are responsible for users’ site planning, process design, equipment installation and operation training. And our engineer is available to go overseas install pellet making machine/pulverizer/ granulator for you.
3.warranty:one year for drying waste medicine dregs automatic roller dryer equipment, and long-term supply of parts
Profile of henan Zhengzhou dingli
We are Henan Dingli Drying Equipment Co.,Ltd, locate at No.59,Dongda Street, Guancheng Dist., Zhengzhou, China. We are producing and manufacturing various drying machine equipments as rotary drum dryer/coal drying dryer/fuel dryer/medicine dregs dryer/decoction dregs dryer/peat dryer, l ignite dryer/sawdust drying dryer/hen dung drying dryer/wood dryer drying/straw dryer/grain stalks dryer/sauce dryer/chemical pharmacy drying device/chemical pharmacy dryers and many other biomass dryers. The whole equipment system can include the pellet machine/particles machine and packing machine/dust removing machine/biomass crusher/wood cutting machine, dewatering equipment and others.
These dryers can be equiped with heat source machine,feeding achine,crusher machine,dust removing or collecting mechanism,pellet making machine and packing machine. The structure of our machines can be Three-drum Rotary Dryer, Single-cylinder Rotary Dryer,horizontal dryer,vertical dryer.The machine can easilly used as fully automated and semi-automatic in intelligent designs.
Your demands about the continuous working petroleum coke dryer/plaster dryer/gypsum dryer can be fully considered and the equipment constructions can be designed.
1. Prepare 30% of the total payment, pay the rest 70% of the total payment before delivery the equipment, pay up after the system operate normally;
2. Delivery time according to the client’s requirement and production arrangement;
3. Life-long maintenance( only charge the costs);
4. We provide products quality guarantee, free installation and debugging, deal with the consignment, and always put credit first. Higher Quality, better services and lower price!
NOTE: Pls send your requirments to Eugenia about disc pelletizer ring die granule machine.
