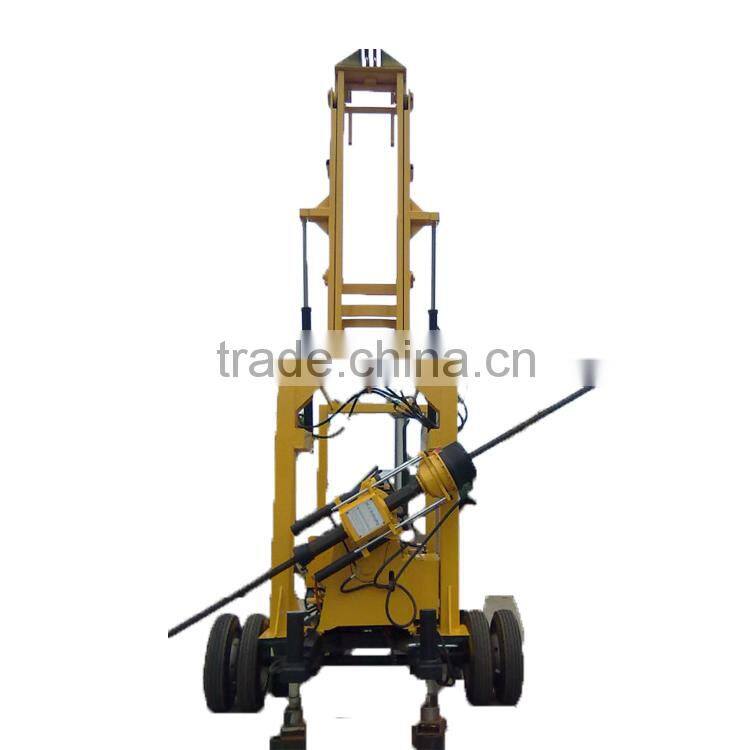

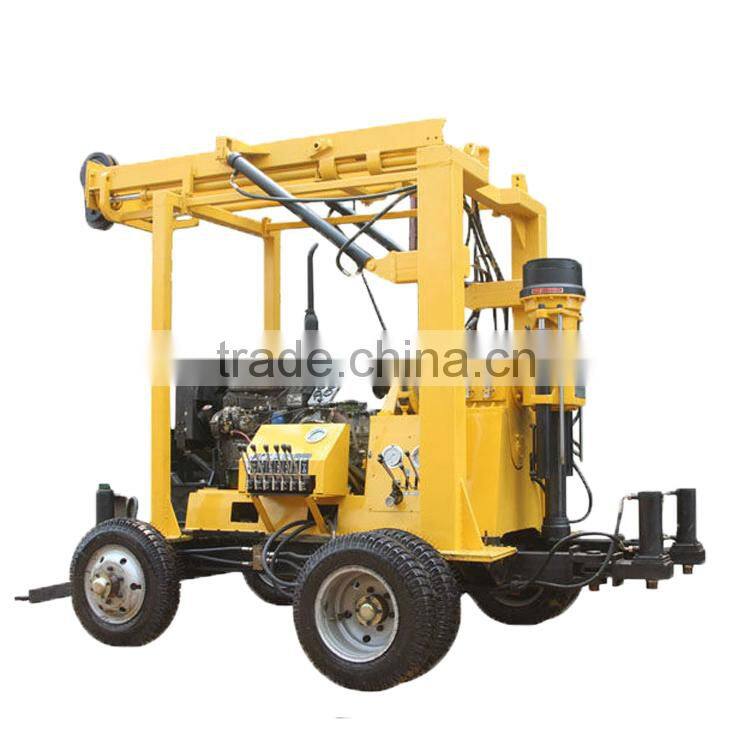

Help CenterXyx-3 Original Manufacturer XYX-3 Water Well Drilling Rig
Related Products
-
API Standard Three Wing Drilling Rig BitUS$ 1 - 1MOQ: 10 Units -
Drilling Rig Equipment XT-6R Hydraulic Crawler Core Drilling RigUS$ 99,998 - 99,998MOQ: 1 Set
-
Hola! MGY-100A Anchor Drilling Rigs for SaleUS$ 9,999 - 9,999MOQ: 1 Set
-
Coal Drilling Rig Machine ZLJ-2900 Widely Used Internationally PraisedUS$ 14,998 - 14,998MOQ: 1 Set
-
ZLJ-650 Mineral Exploration Drilling Rig Anchor Drilling RigUS$ 8,888 - 8,888MOQ: 1 Set
| Drilling depth | m | 100 | 250 | 300 | 600 | |||||
| Drilling DI | mm | 300 | 200 | 150 | 75 | |||||
| Open hole DI | mm | 300 | ||||||||
| End hole DI | mm | 75 | ||||||||
| Drilling rod | mm | Φ60 | ||||||||
| Drilling angle | 90°-65° | |||||||||
| Rotary Spindle | ||||||||||
| Spindle forward speed | r/min | 30-1050 | ||||||||
| Spindle reverse speed | r/min | 29-137 | ||||||||
| Spindle stroke | mm | 560 | ||||||||
| Spindle inner diameter | mm | 96 | ||||||||
| Spindle lifting capacity | KN | 60 | ||||||||
| Main Winch ( drive hydraulic system) | ||||||||||
| Single line lifting speed | m/min | 0-45 | ||||||||
| Hug floodgate belt width | mm | 90 | ||||||||
| Tightrope diameter | mm | 14 | ||||||||
| Hoist single line lifting capacity | KN | 40 | ||||||||
| Roller diameter | mm | 200 | ||||||||
| Roller cubic measure | m | 30 | ||||||||
| Gear Oil pump | ||||||||||
| Duplex gear oil pump CBF-F63/25 | ||||||||||
| Front displacement,pressure | 63mL/r 20Mpa | |||||||||
| Behind displacement,pressure | 25mL/r 20Mpa | |||||||||
| Drilling rig Power | ||||||||||
| Diesel engine | Hp | R4105ZD 50HP | ||||||||
| Electric motor | KW | Y180L-4 22KW | ||||||||
Package: Wooden Case or Plywood
Delivery: Container ship, 10 days after receiving deposit
Established in 2009.
Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
1,Are you trading company or manufacturer?
We are absolutely professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, piling rig, etc. We provide comprehensive solution to many fields like geological survey, mining industry, electric power etc.
Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate, and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 10 days.
Alvin Qin
0086-13637882559
Skype: alvin_gold
Any of your requirements would be really appreciated ! Thanks.
