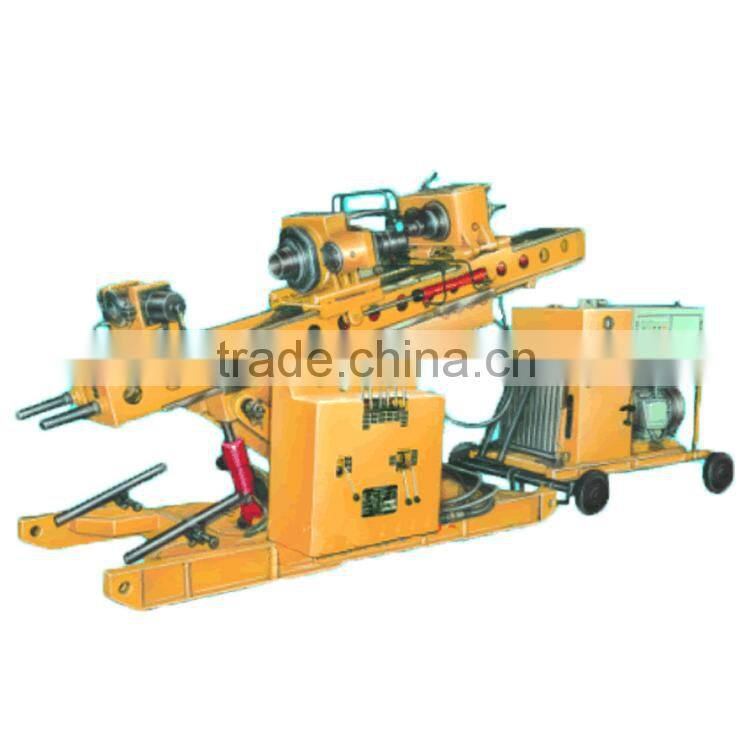

Hola! MGY-100A Anchor Drilling Rigs for Sale
US$ 9,999 - 9,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Coal Drilling Rig Machine ZLJ-2900 Widely Used Internationally PraisedUS$ 14,998 - 14,998MOQ: 1 Set -
ZLJ-650 Mineral Exploration Drilling Rig Anchor Drilling RigUS$ 8,888 - 8,888MOQ: 1 Set
-
Super Discount MGJ-50 Horizontal Directional Drilling RigUS$ 6,666 - 6,666MOQ: 1 Set
-
Drilling Rig Companies XYX-3 Water Well Drilling RigUS$ 1 - 1MOQ: 1 Set
-
Water Well Camera and Borehole Camera, Factory Directly Sale BORE WELL INSPECTION CAMERAUS$ 1 - 2MOQ: 1 Set
Condition
New
Type
Core Drilling Rig
Power Type
Diesel
Place of Origin
Chongqing, China
Brand Name
Gold
Model Number
MGY-100A
Usage
Water Well
Power(W)
37KW
Weight
1800KG
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
MGY-100A anchoring chilling machine is an important project of "the Ninth five" of the state. Mainly used in drilling soil and rock anchoring hole for prevention and treatment of geology disaster screen injection for tunnel, also suitable for supporting in deep foundation pit of hydroelectric powerstation, communication, energy capital construction, mini-grouting pile hole, hydrography well and high pressure jet-grouting.
- Hydraulic top head, hydraulic powerstation separated from drill body; lighten drilling rig body, and with diesel or motor, meeting the needs of various users.
- It is the first time that the rig user coring down-hole hammer, fully forward-circulation and partial reverse-circulation drilling methods domestically.
- Double top-drive head A. B. a variety combination can be made, to meet many drilling methods.
- Large powered, top-drive head has big torque and pull force, wide rotary speed range.
- Holder and unscrew device, working efficiently, labor saving.
- 2-tier guiding rail, easy to find hole position.
| Hole dia(mm) | Φ110-Φ200 | Drilling depth(m) | 100-60 |
| Hydraulic power pack type | Variable(Electric motor) | Variable(Diesel motor) | |
| Power model | Y200L2-2 | CC490Q | |
| Power and ratings | 37Kw/2950r/min | 36Kw/2800r/min | |
| Hydraulic system pressure(Mpa) | 20 | ||
| A-top drill head speeds(r/min) | Ⅰseries | 0-100 | 0-95 |
| Ⅱ series | 0-30 | 0-29 | |
| A-top drill head torque(Nm) | Ⅰseries | 1600 | |
| Ⅱ series | 5000 | ||
| B-top drill head speed(r/min) | 0 | 10 | |
| B-top drill head torque(Nm) | 6400 | ||
| lift/feed speeds (m/s) | 0-0.16/0-0.21 | ||
| Max pull force/Max push force(N) | 80000/57000 | ||
| Max feed stroke (mm) | 2000 | ||
| Drilling angle(°) | Elevation20°Depression angle100° | ||
| mast Raised height horizontally(mm) | 300 | ||
| Drill body weight (kg) | 1800(approximately) | ||
| Powerpack weight(kg) | 700(approximately) | ||
| Mount type | Plate mounted,drill body separated from power | ||
