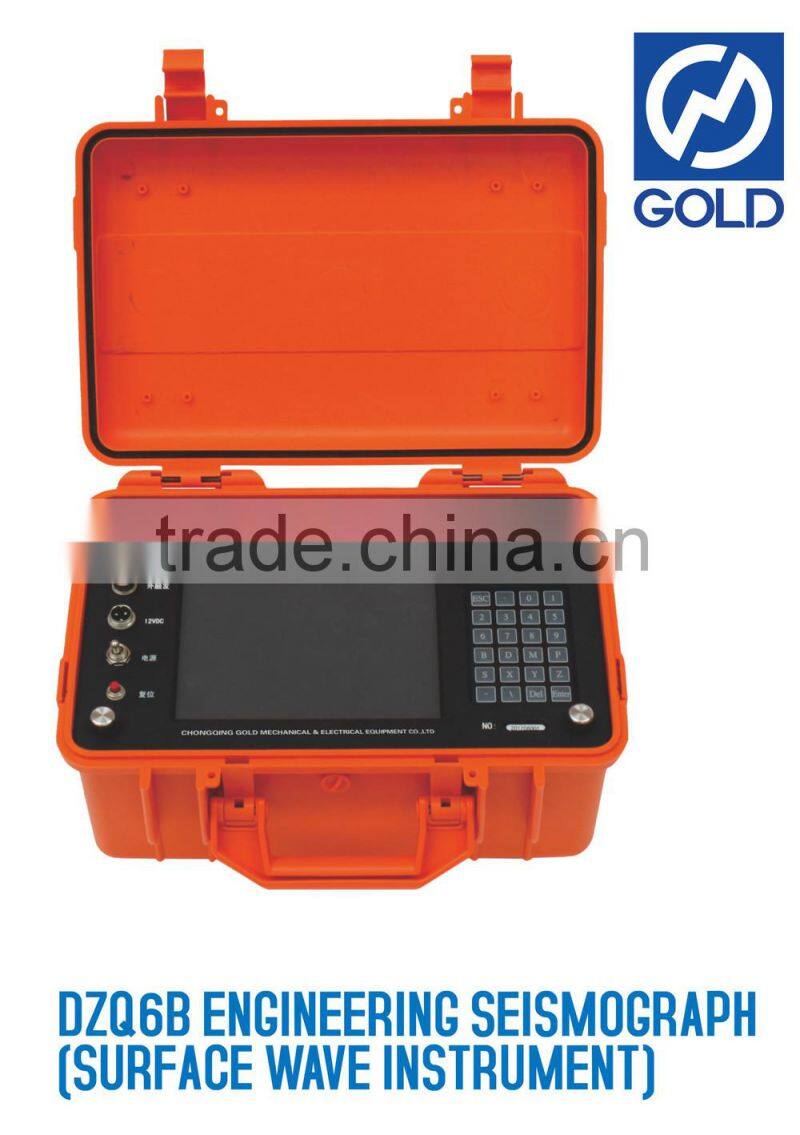

Hot sale Engineering Seismograph (Surface Wave Instrument) for geophysical surveying
DZQ6B
1.APPLICATION & FEATURES
- Realization of Various Seismic Methods; Surface wave, high-density seismic imaging, pulse measurement, refraction,shear wave measurement, city blasting vibration safety evaluation, pile foundation testing, etc.
- Working system based on Chinese Windows environment, powerful in functions, easy for operation.
- High dynamic range, high technical index, fully meet the demands of city geophysical exploration; also provide an alternative selection for field exploration.
- Humanized hand mouse, or touch panel directly manipulated. Realization of Various Seismic Methods; Surface wave, high-density seismic imaging, pulse measurement, refraction, shear wave measurement, city blasting vibration safety evaluation, pile foundation testing, etc.
- Computer Configuration: Military Grade PC104 Control Computer P4 (933MHz); Memory: 128MB; Hard Disk: no smaller than 40GB; Operating System: win-XP
- Display: 1024x768 dot matrix, high brightness TFT (true color) LED.
- Input Device: Equipped with suitable field-use membrane keyboard and touch screen; can also be connected with PS / 2 computer keyboard and mouse; provided with handwriting tablet.
- Interface: Dual USB interface, PS/2 keyboard, mouse interface, parallel port, Ethernet port, etc.
- Removable Storage: USB disk, or adopting mobile hard disk drive, USB mobile drive, etc.
- Frequency Response Range: 0.1Hz~4kHz
- Noise: smaller than 1 μV at full-frequency state
- Number of channels: 6 (optional 1,2,3 channels mode)
- Time Delay: 0~9999ms
- Amplitude conformity:less than 1%;
- Phase conformity: better than ±0.5ms
- Sampling Rate: 10μs/25μs/50μs/100μs/200μs/500μs/1 ms/2 ms/5 ms/10 ms/20ms, optionally
- Number of Sampling Points: 512, 1024, 2048, 4096, 8192, 16384 , optionally
- Preamplifier Gain: 100 times (40dB), 10 times (20dB), 1 times, optionally
- A/D Converter: floating point 24 bit A/D converter
- Supported Data Format: SEG-2
- Power Supply: 12V DC
- Service Environment: -10℃~ +55 ℃; Humidity 90%RH
- Volume: 390×270×190mm
- Weight: 9kg
GSY-1 Engineering Acoustic Instrument
DZS-1 Deep Digital Seismograph
DZQ12/24/48 High Resolution Seismograph (Shallow-Layer Seismograph)
-Plywood
-Woodencase
-Normal packing
