Efficient Resistivity Meter for Geological Prospecting and Mineral Exploration
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
GOLD
Model Number:
DDC-8
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Efficient CDJ Series Digital Seismic GeophonesUS$ 1 - 2MOQ: 1 Set -
DZD-6 Water and Mineral Detector, Multi-Function DC Resistivity & IP Instruments With ISO CertificatedUS$ 1 - 2MOQ: 1 Set
-
Geophsical Surveying Instrument CDJ Series Digital Seismic GeophonesUS$ 1 - 2MOQ: 1 Set
-
Multi-founctional CDJ Series Digital Seismic GeophonesUS$ 1 - 2MOQ: 1 Set
-
High Fidelity Oil and Gas Detector CDJ Series Digital Seismic GeophonesUS$ 1 - 2MOQ: 1 Set
Place of Origin
Chongqing, China
Brand Name
GOLD
Model Number
DDC-8
Display Type
Analogue and Digital
Measuring Range
±3000mV
Testing Voltage
700V
Accuracy Class
±1.5%
Operating Temperature
-10~50℃
Dimensions
244*154*237mm

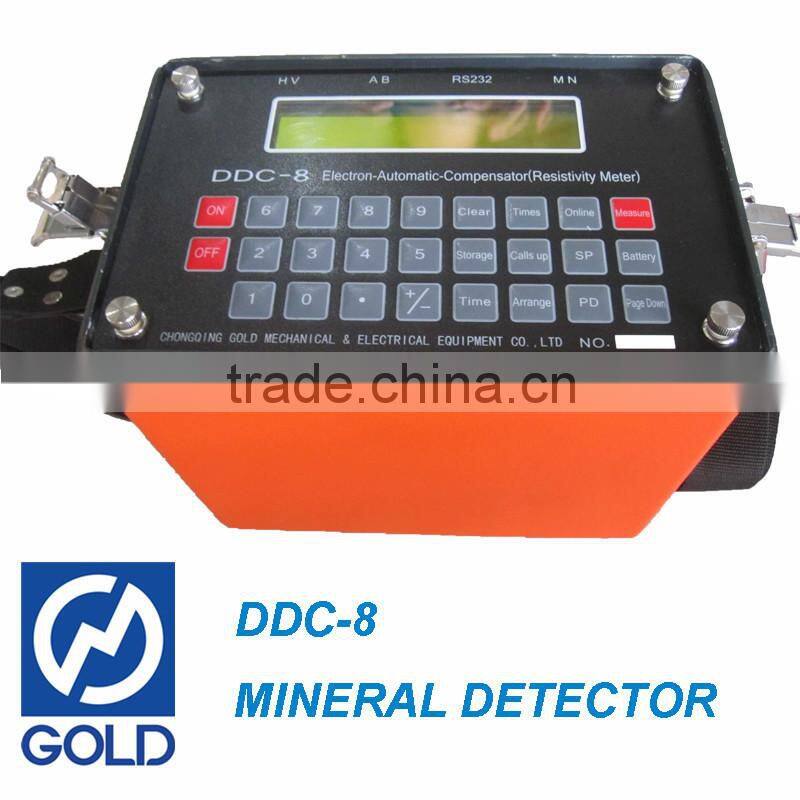

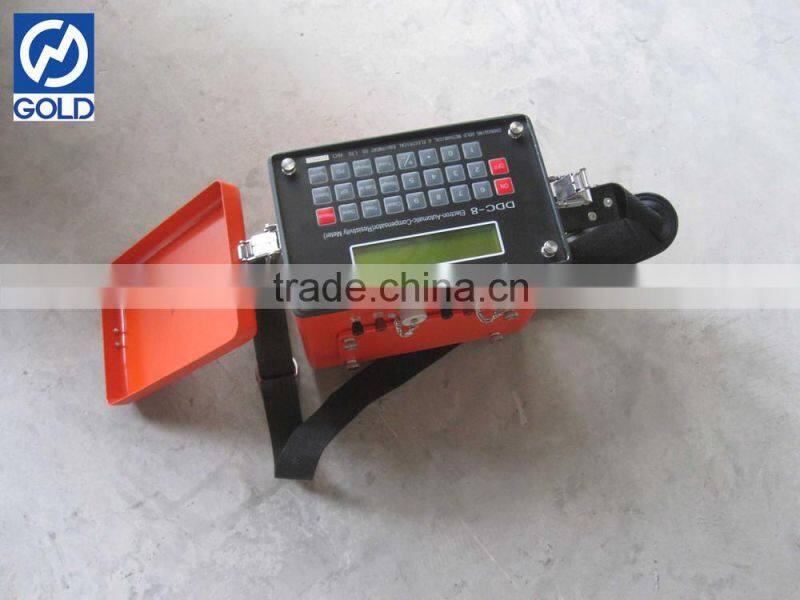

Efficient Resistivity Meter for geological prospecting and mineral exploration
Mineral Detector
DDC-8
Product Description
1.APPLICATION & FEATURES
- By utilizing the apparent resistivity parameters, it is widely used in hydrology, environmental protection, engineering geophysical exploration, metal and non-metal mineral resources exploration.
- Microcomputer controlled, direct-reading resistivity, various electrode arranging mode, data protection against power-failure
- This instrument applies to Electrical Prospecting such as Vertical Electrical Sounding, Electrical Profiling, Charging Method and Spontaneous Potential Method, etc. on ground and in trench.
2.SPECIFICATION
- Maximum Power Supply Voltage: 700V
- Maximum Power Supply Current: 3A
- Voltage Measuring Range: ±3000mV
- Voltage Measurement Accuracy: ±1.5%, ±0.1 mV
- Current Measuring Range: 0.1mA~3000mA
- Current Measurement Accuracy: ±1.5%, ±0.1mA
- SP Compensation Range: -1000mV ~ +1000mV
- Instrument Input Impedance: >30MΩ
- Working Temperature: -10℃~50℃
- Volume: 244*154*237mm
3.RELATED PRODUCTS
DDS-3 Very Low Frequency (VLF) Electromagnetic Instrument
GATEM-1 Engineering Transient Electromagnetic System
ATEM-4 Transient Electromagnetic System
DJF-2 5/10/15kw High Power DC IP Measuring System
DUK-2A Multi-Electrode Resistivity Survey System
DUK-2B Multi-Electrode Resistivity Survey System
DZD-6A Multi-Function DC Resistivity & IP Instruments

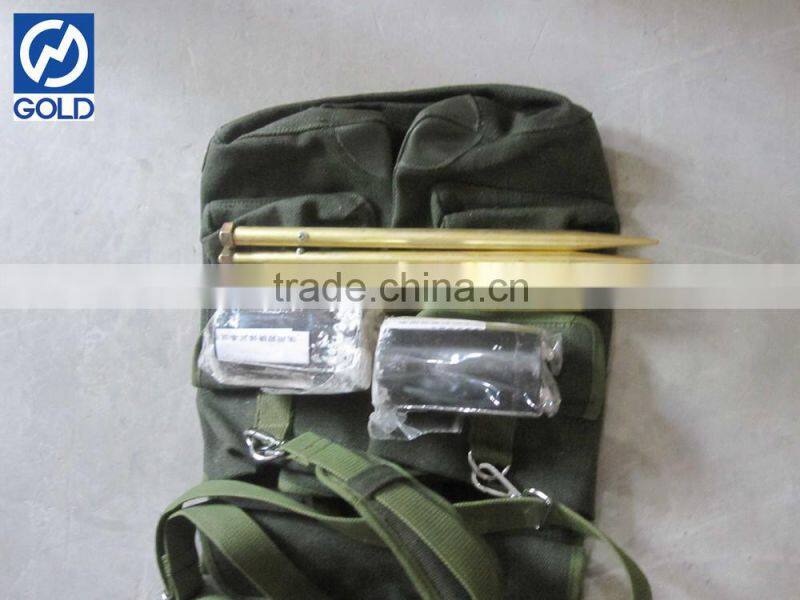

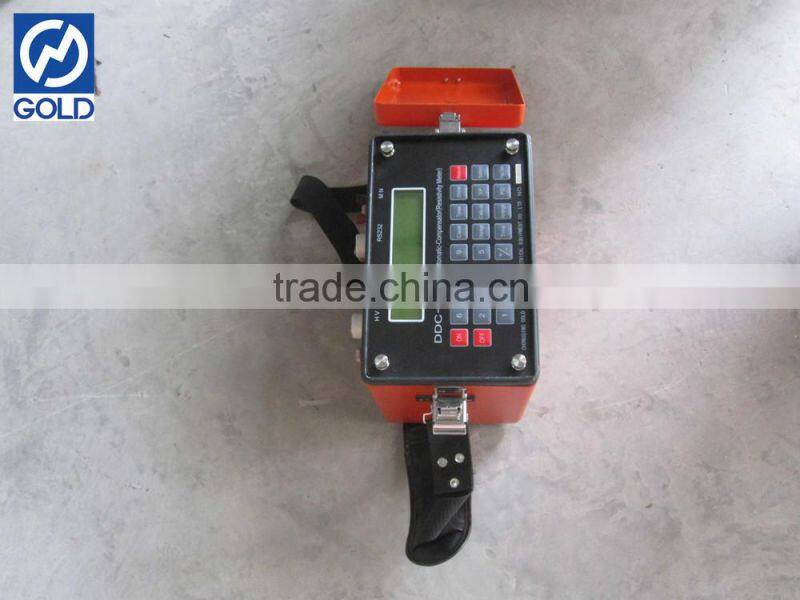

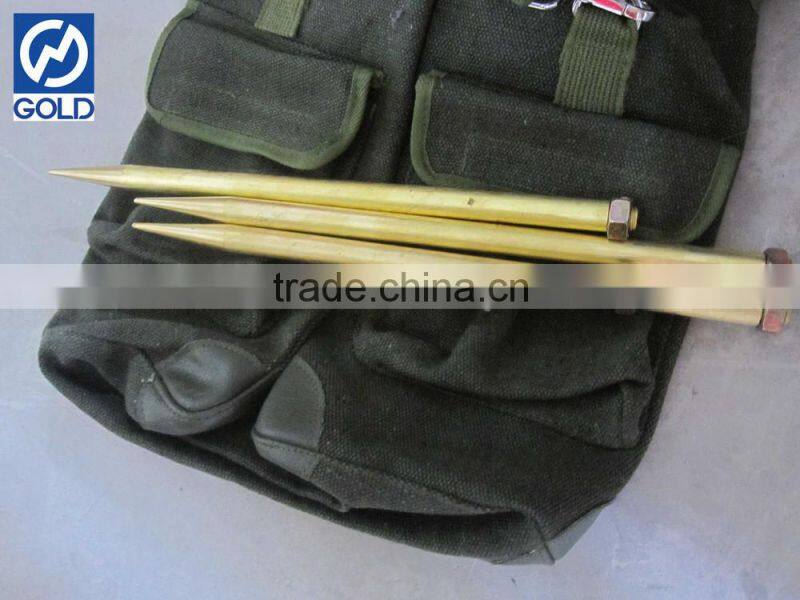

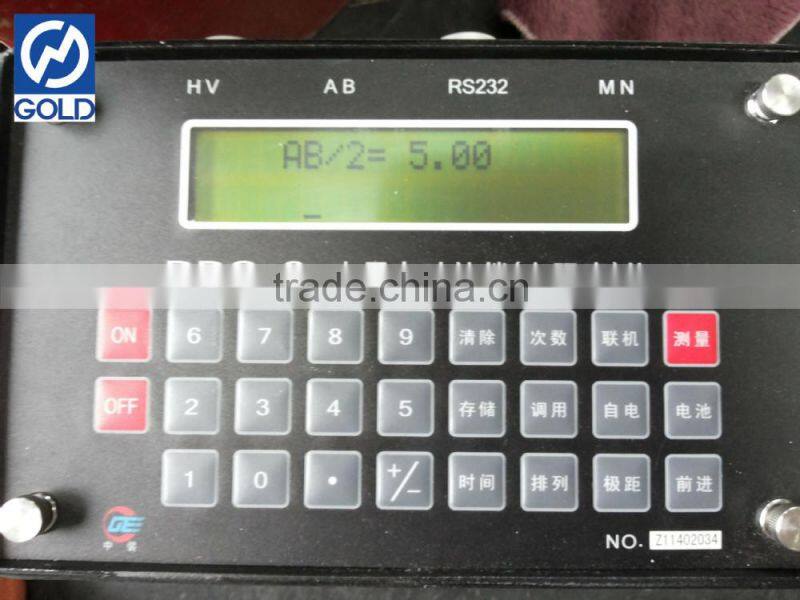

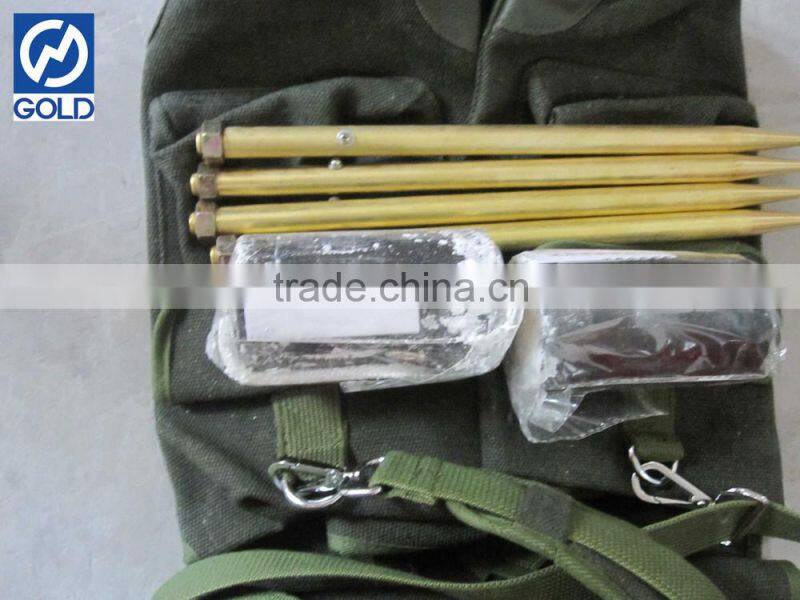

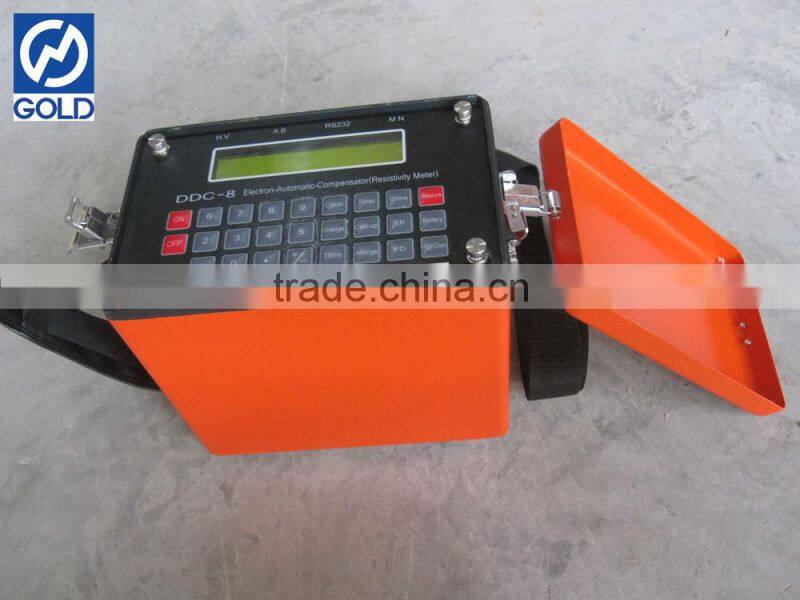

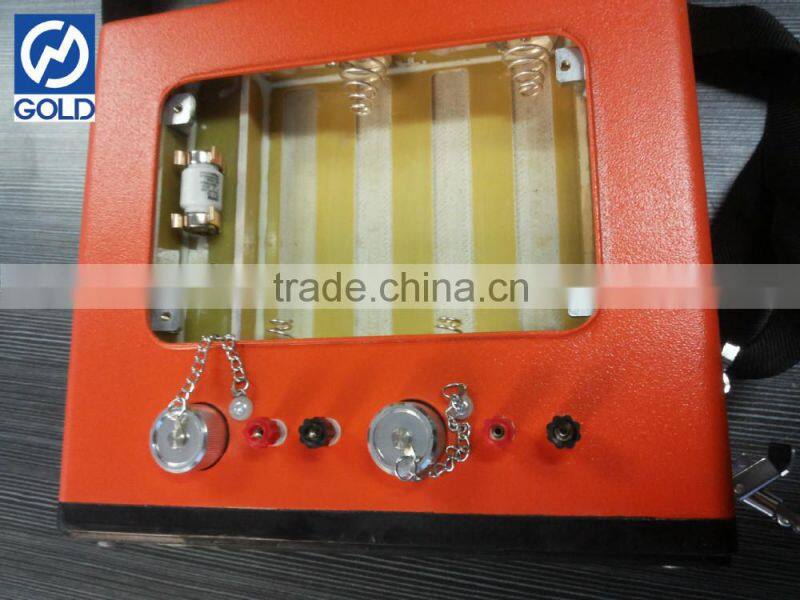

Pictures
