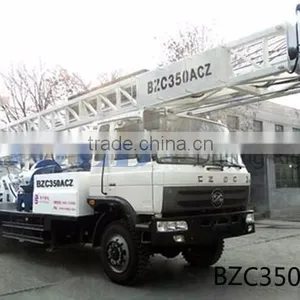

350m Depth Truck Mounted Water Well Drilling Rig BZC350ACZ
US$ 100,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BZC200CA Truck Mounted Drilling Rig for SaleUS$ 10,000 - 10,000MOQ: 1 Set -
ZT-1500 Big Drilling Rig Horizontal Directional Drilling RigUS$ 9,999 - 9,999MOQ: 1 Set
-
392 Kw Engine Horizontal Directional Drilling Rig HZ-1000US$ 1,000 - 1,000MOQ: 1 Set
-
XZ500 Full Hydraulic Horizontal Directional Drilling RigUS$ 5,888 - 5,888MOQ: 1 Set
-
Portable Horizontal Drilling Rig XZ320 320kN Thrusting and Back Pulling ForceUS$ 808 - 808MOQ: 1 Set
Condition
New
Type
Core Drilling Rig
Power Type
Diesel
Place of Origin
China
Brand Name
Gold
Model Number
BZC350ACZ
Usage
Other, Core drilling
Voltage
400
Power(W)
132
Dimension(L*W*H)
12044*2490*3740
Weight
19350
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

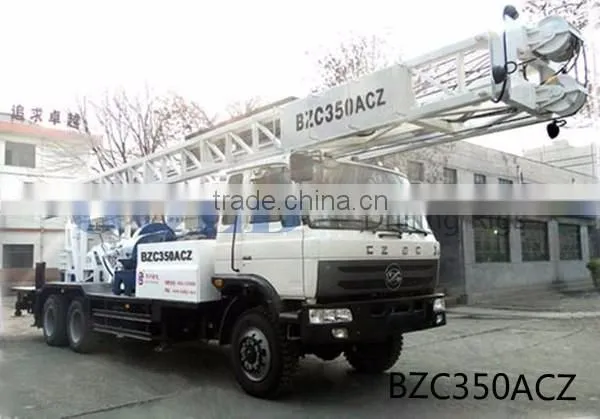

350m Depth truck mounted water well drilling rig BZC350ACZ
1.BZC350ACZ truck mounted drilling rig is designed by our engineers; it is adopt truck mounted and is a rotary drilling rig.
2.The truck chassis is adopt the 6×6 special chassis of brand CHANGZHENG TRUCK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump,mast are setup on the chassis.
3.This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/2A mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.
4.The power of drilling rig comes from the truck engine; the rig sets up distribute implement and hydraulic system.
5.We can set up the spare electric engine and clutch implement according to client's requirement, so that the rig can work with diesel engine or electric engine.
6.We can set up a generator (15kw) , so that it is convenient to illuminate or work at night.
7.The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.
8.The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.
9.The appearance of rig is pretty. It has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working. It is popular with domestic and foreign clients.
Technical parameter | ||||
Drilling depth(M) |
80 |
300 |
||
Drilling diameter(mm) |
1500 |
500 |
||
Speed of turntable(r/min) |
21.2;36;63.2;100.6;155;20.2(reverse) |
|||
Torque of turntable(KN.m) |
18;10.6;6;3.8;2.5;18.9(reverse) |
|||
Single rope lifting capacity of windlass(KN) |
30 |
|||
The capacity of main windlass(KN) |
180 |
|||
Single rope lifting capacity of hydraulic windlass(KN) |
40 |
|||
The capacity of hydraulic windlass(KN) |
160 |
|||
The lifting capacity of hook(KN) |
180 |
|||
Bearing capacity of mast (KN) |
180 |
|||
The height of mast (mm) |
11500 |
|||
Bearing capacity (t) |
25 |
|||
Pipe |
Kelly(mm) |
108×108×7500 |
||
Assistant pipe (mm) |
89×10×5500 |
|||
Hydraulic pump |
Model |
CBQL-F550/F532-CFHL |
||
Pump delivery (ml/r) |
50/32 |
|||
Rated speed (r/min) |
2000 |
|||
Rated pressure(MPa) |
20 |
|||
|
BW850/2A
plunger pump
|
Diameter of cylinder (mm) |
150 |
||
Stroke of piston (mm) |
180 |
|||
Theory of flow (L / min) |
600 850 |
|||
Rated pressure (Mpa) |
3 2 |
|||
Pounding times (min-1) |
58 82 |
|||
Diameter of suction tube (mm) |
127 |
|||
Diameter of drain pipe (mm) |
64 |
|||
Input speed (r / min) |
470 |
|||
Input power (kw) |
40 |
|||
Overall dimensions (mm) |
2000*1030*1400 |
|||
Weight (t) |
1.5 |
|||
Truck chassis |
Model |
CZ5210 |
||
Drive form |
6×6 |
|||
Engine |
Model |
CA6DF3-18E3 |
||
Rated power(KW) |
132 |
|||
Speed(r/min) |
2300 |
|||
Size (L*W*H)(mm) |
10230×2490×2870 |
|||
Electric generator |
Model |
MF |
||
Rated power (kw) |
15 |
|||
Rated voltage(v) |
400 |
|||
Rated current(A) |
27 |
|||
Speed (r/min) |
1500 |
|||
Frequency(Hz) |
50 |
|||
Protection level |
IP21 |
|||
Insulation Class |
H |
|||
The best working gear (or speed) |
5th gear(1000-1400r/min) |
|||
The highest speed(Km/h) |
70 |
|||
Weight(kg) |
19350 |
|||
Transport size(L*W*H)(mm) |
12044*2490*3740 |
|||
Working size(L*W*H)(mm) |
10106*2490*13128 |
|||
1,Are you trading company or manufacturer?
We are absolutely professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, piling rig, etc. We provide comprehensive solution to many fields like geological survey, mining industry, electric power etc.
Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate, and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 10 days.
