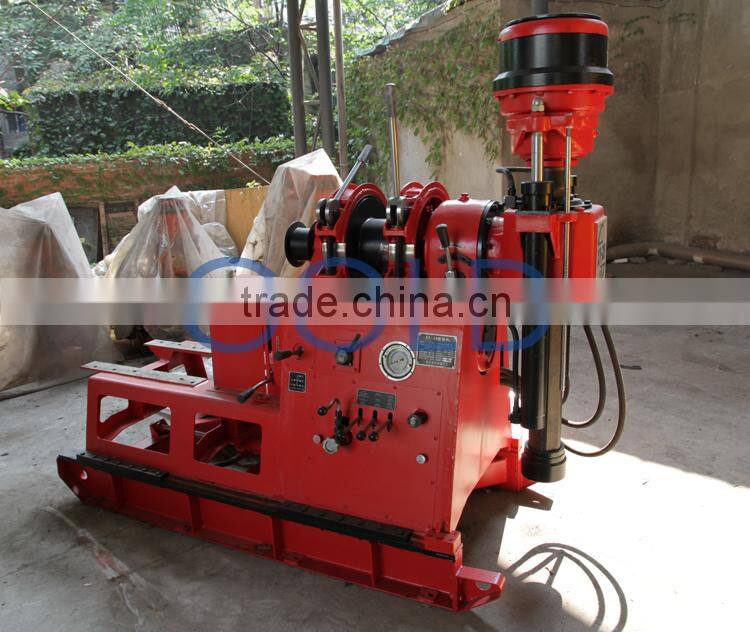

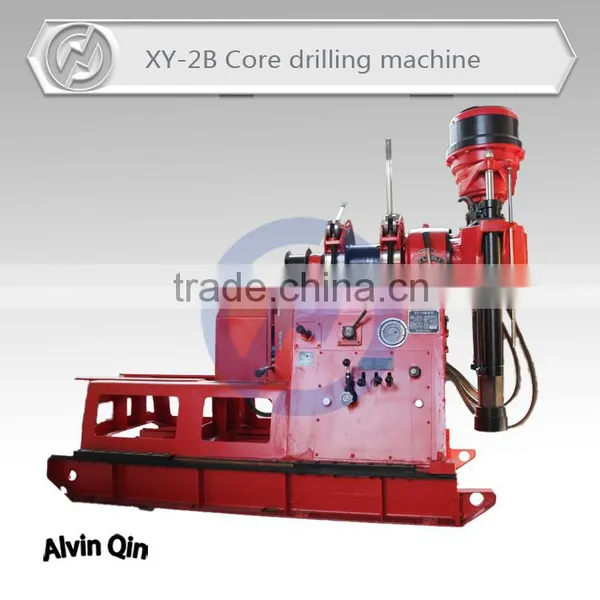

XY-2B drillrig derived from xy-2 drillrig, it not only keeps all performances of xy-2 drill, but also adds spindle inner hole diameter to 96mm. It is especially available for constructions of hydroelectric power station, highway, railroad and harbor etc. In common with xy-2 drill in all design but hydraulic chuck and rotary head modified.
| Drilling capacity (m) | Φ73 rod | 100 |
| Φ60 rod | 320 | |
| Φ50 rod | 380 | |
| Φ42 rod | 530 | |
| Spindle speed(r/min) | Forward | 57;99;157;217;270;470;742;1024 |
| Reverse | 45;212 | |
| Max torque(Nm) | 3330 | |
| Angle renge | 0-90° | |
| Spindle max pull force(KN) | 60 | |
| Spindle stroke (mm) | 560 | |
| Hoist max lift capacity with single rope (KN) | 30 | |
| Spindle inner dia (mm) | Φ96 | |
| Oil pump | CBK1020/8 twin-gear pump | |
| Power unit | Electric motor | Y180L-4,22kW |
| Diesel engine | 395K2,19.85kW | |
| Inner dia of spindle (mm) | 2220×900×1880 | |
| Drill weight(excluding power)(kg) | 1200 | |
Ⅰ.Warranty
The main machine has 12-month warranty, excluding the wearing parts, we offer these parts with the lowest price for our customer.
Ⅱ.Installation and Commissioning
A.We provide our customers foundation and layout drawings after payment.
B. If needed, we will send technical engineers to the Buyer’s site for supervision of erection and Commissioning. Expenses abroad should be paid by the buyer.
Ⅲ. Inspection:
A. Customer inspection in factory;
B. Supplier offer pictures for inspection;
C. The third party inspection appointed by Customers.
Package: Wooden Case or Plywood
Deliverey: Container ship
