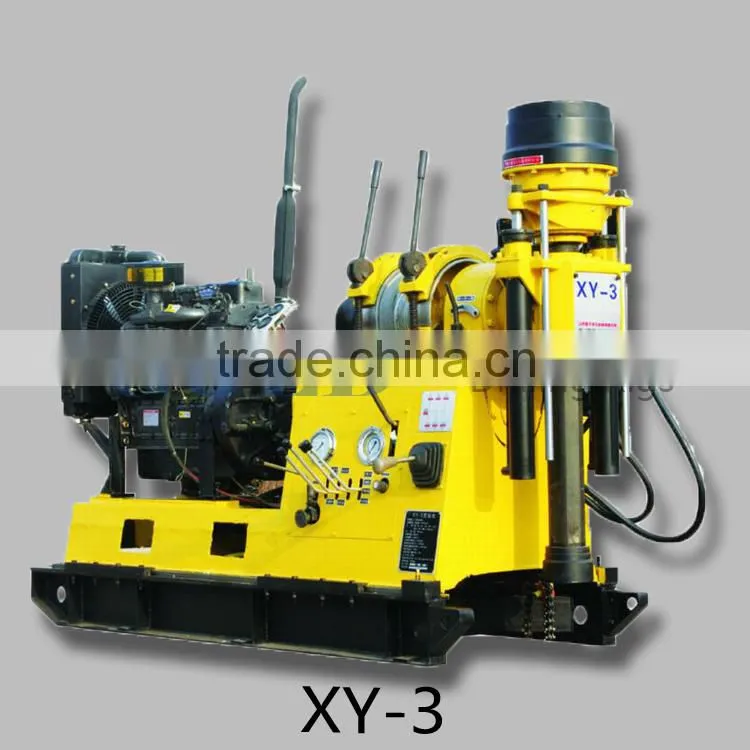

XY-3 directional drilling rig is mainly used for geological exploration, hydropower project, road and railway construction, buliding project and big diameter water well project
a. XY-3 drilling rig adopts CG140 model auto transmission, has 10 rotation speeds and easonable speed range, with eight forward roation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application.
b. Large engine power and two reverse rotation gears, can easily solve the drilling work accident.
c. The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.
d. Equipped with normally closed hydraulic chuck, operation is flexible and reliable
e. Spindle and hoist can be operated separately.
f. Spindle has big inner diameter, able to use big hexagonal drilling rod.
| Unity machine parameter | |
| Drilling depth | 600m |
| Max open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drilling Rod diameter | 60mm |
| Drilling angle | 90°~65° |
| Dimension | 2500 x 900 x 1800mm |
| Drill weight (without power) | 1600kg |
| Spindle | |
| spindle speed | Forward 30-1050r/min |
| Reverse 29 137r/min | |
| Spindle stroke | 600mm |
| Spindle inner diameter | 96mm |
| Lifting capacity | 6000kg |
| Hoist | |
| Max.Single line lifting capacity | 4000kg |
| Max.Single line lifting speed | 0.5-1.9m/s |
| Wirerope caliber | 12.5mm |
| Wirerope length | 50m |
| Reel diameter | 300mm |
| Hug folldgate belt width | 90mm |
| Mud pump | |
| Type | BW-250 |
| Displacement | 250 L/min |
| Work pressure | 80kg/cm² |
| Water inlet pipe diameter | 75 mm |
| Water outlet pipe diameter | 50 mm |
| Gear Oil pump | |
| Duplex gear oil pump | CBF-F63/25 |
| Front Displacement, pressure | 63 L/min 20Mpa |
| Behind Displacement, pressure | 25 L/min 20Mpa |
| Power | |
| Diesel engine | 4105 76HP |
| Electric motor | Y180L-4 59KW |
Package: Plastic sheeting
Delivery: Container ship, 10 days after receiving deposit
Mobile / Whatsapp: +86-13637882559
1,Are you trading company or manufacturer?
We are absolutely professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, piling rig, etc. We provide comprehensive solution to many fields like geological survey, mining industry, electric power etc.
Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate, and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 10 days.
