Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Mining Drilling Machine GX-50 Drill Accessories Available

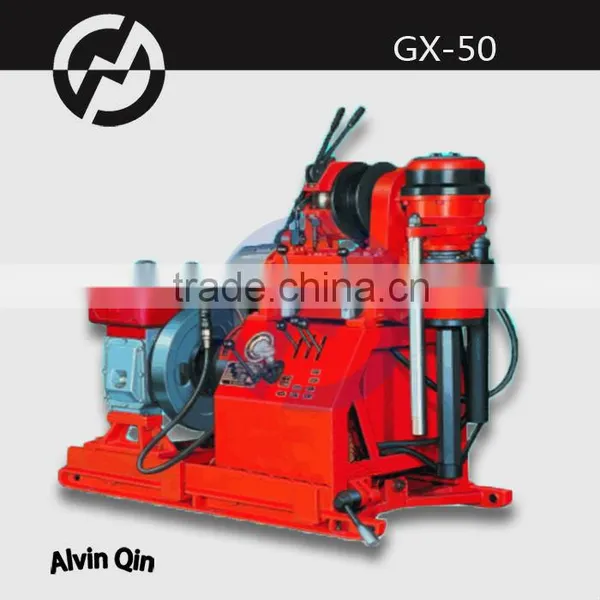

Mining Drilling Machine GX-50 Drill Accessories Available
US$ 4,500 - 4,600
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, diamond drilling machine
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Price Drilling Rig MGJ-50 Portable Horizontal Directional Anchor Drilling RigUS$ 1 - 1MOQ: 1 Set -
Large Diameter Water Well Drilling Rig XY-5NegotiableMOQ: 1 Set
-
Engineering Drilling Rig GQ-60 for ConstructionNegotiableMOQ: 1 Set
-
XY-3 Portable Water Well Drilling Rig Mounted on TruckUS$ 1 - 1MOQ: 1 Set
-
Construction Drill Rig GX-1TD Stone DrillerUS$ 9,998 - 9,998MOQ: 1 Set
Condition
New
Type
Other, diamond drilling machine
Power Type
Diesel
Place of Origin
China
Brand Name
Gold diamond drilling machine
Model Number
GX-50 diamond drilling machine
Usage
Other, diamond drilling machine
Power(W)
8.8kw
Dimension(L*W*H)
1360*620*1080
Weight
360KG
Certification
CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Application&Features
Mining drilling machine GX-50 Geological drilling for railroad, highway, bridge tunnel, foundations of power station, Civil and industrial buildings, also drilling anchoring hole and blasting hole etc.
- Spindle type mechanical transmission, hydraulic feed.
- Hydraulic retracting lets drill body away from the drilling hole.
- Hydraulic chuck, hand-powered chuck and hand-powered cylinder chuck, they are exchangeable.
- Friction hoist, percussion drilling, easy to pull and push casing if equipped with vibrator.
- Advanced design, reasonable arrangement, compact structure, beautiful looking.
- Light weight, good detachability, easy to operate.
- Equipped with special 6mA type derrick for user ordering.
Specification
| final hole dia (mm) | 150;130;110;91;75 | |
| drilling capacity (m) | 20;30;50;70;100 | |
| angle range | 0-90° | |
| spindle speeds (r/min) | 99;236;378 | |
| max torque (Nm) | 620 | |
| spindle max pull force (KN) | 15 | |
| spindle stroke (mm) | 400 | |
| max hoist lift force with single rope (KN) | 10 | |
| Oil pump | CB3-10-CFPL gear oil pump | |
| Power unit | diesel engine | Changchai diesel 195 2000r/min 8.8KW |
| electric motor | ||
| drill body weight(Excluding power) | 360 | |
| overal dim (L×W×H)(mm) | 1360×620×1080 | |

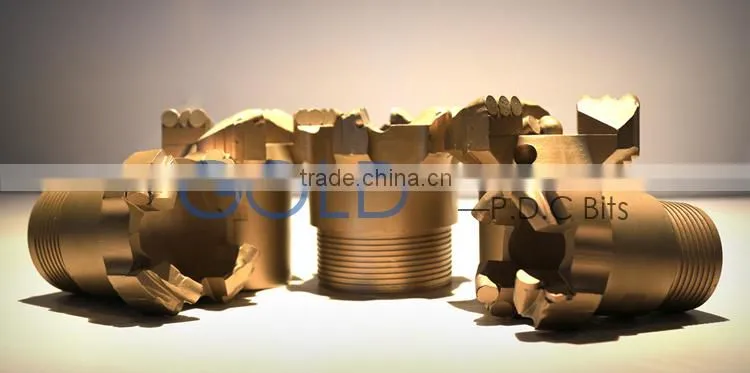

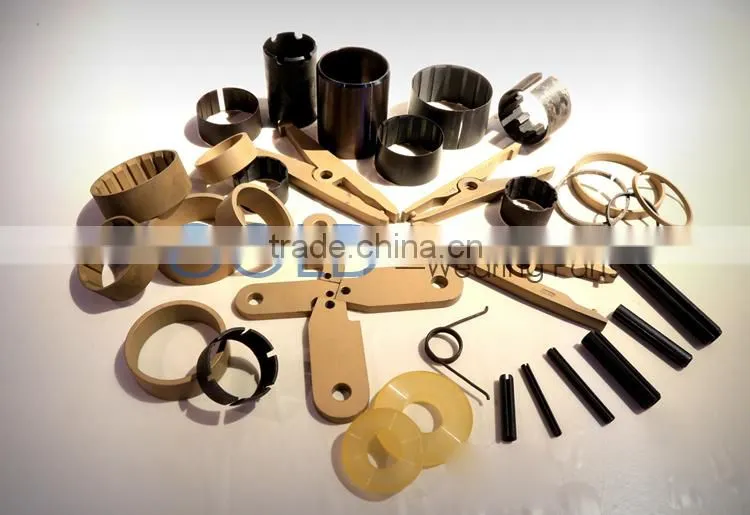

Accessories

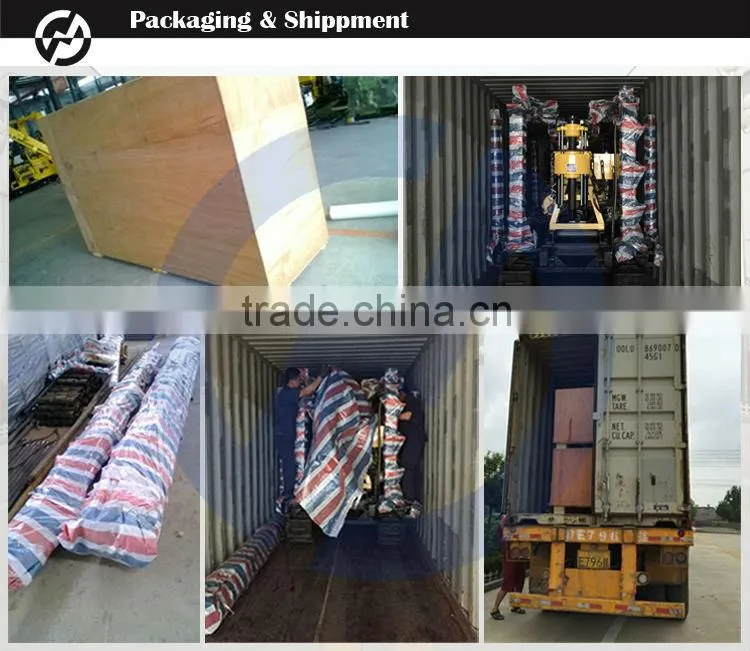

Packaging & Shipping
Our Company View

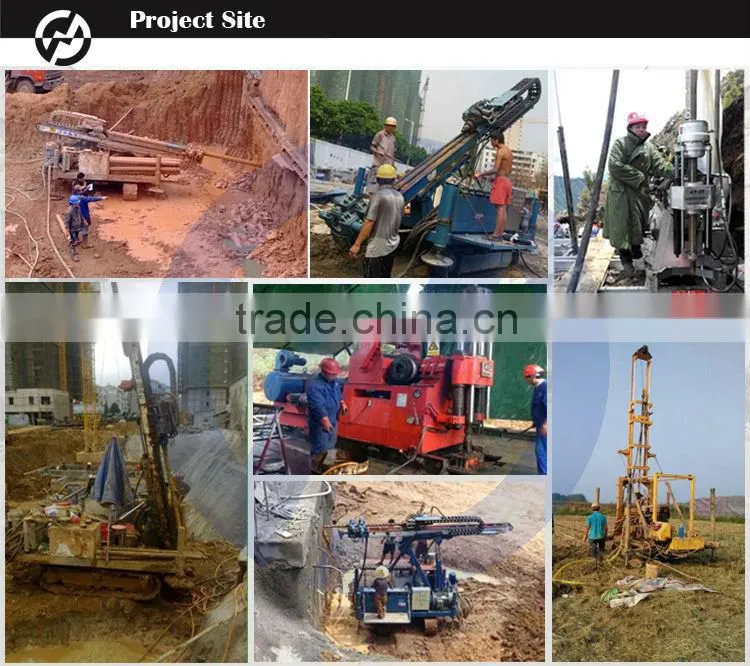

Project Site
Our Team
Contact Us
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Trading Company
Year Established
2015
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
