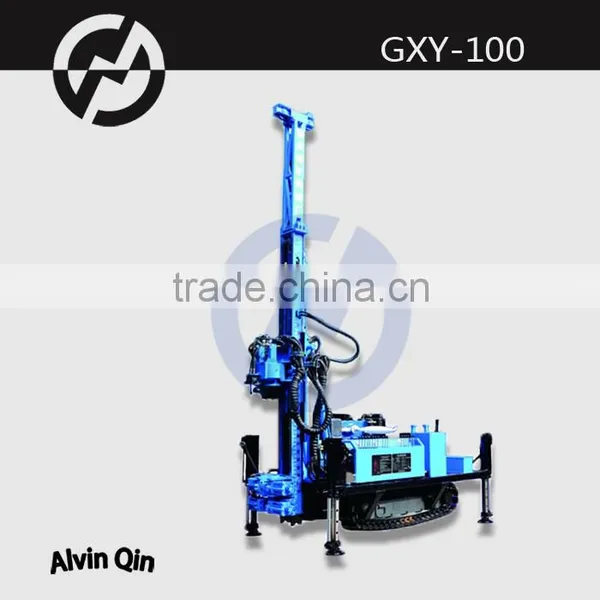

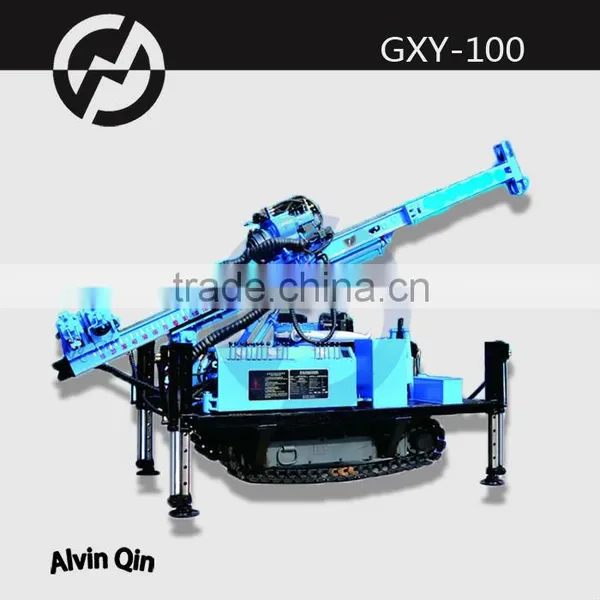

Diesel drilling rig GXY-100 stone drilling machine is mainly used for investigation of railway engineering, highway, water conservancy, and hydraulic control.The blasting hole construction of anchor cable, deep foundation pit hole, well construction, pipe roof construction and blasting engineering.
1. the GXY-100 stone drilling machine for sale has the advantages of compact structure, convenient move and position;adopts full hydraulic control, flexible operation,time saving.Suitable for positive, Reverse Circulation DTH hammer construction.
2. the GXY-100 stone drilling machine with low speed and high torque motor,so that the machine stable performance, reliable, long life.
3. the GXY-100 stone drilling machine is suitable for a wide range,drilling ability; power head is a through hole structure,high drilling efficiency.
4. the GXY-100 stone drilling machine angle range, 0° to 90° .
5. the GXY-100 stone drilling machine is suitable for various drilling methods, mainly for the positive,Reverse Circulation DTH hammer.
| hole diameter (mm): | 150 |
| drilling angle (°): | 0 ~ 90 |
| theoretical depth: | 30m~100m |
| power head push stroke: | 2500mm + chuck rear suspension of 1000mm |
| power head output speed (r/min): | 0 ~ 350r/min |
| power head output maximum torque (N · m): | 4500N.m |
| power head stroke (mm): | 1800 |
| the power chuck hole: | Φ 80mm |
| power head maximum feed force / pull force (kN): | 43/50 (0~44 continuously adjustable) |
| The rated pressure of hydraulic (Mpa): | 18 |
| diesel models: | 4100 diesel engine |
| hoisting capacity: | 3000Kg |
| host size (L*W*H) (mm): | 4200 x 2000 x 2000 |
1.Core Drilling Machine 2.Water Well Drilling Machine 3.Anchoring Drilling Rig
4.Down-the-hole Drilling Machine 5.Underground Drilling Rig 6.Horizontal Directional Drilling Rig
