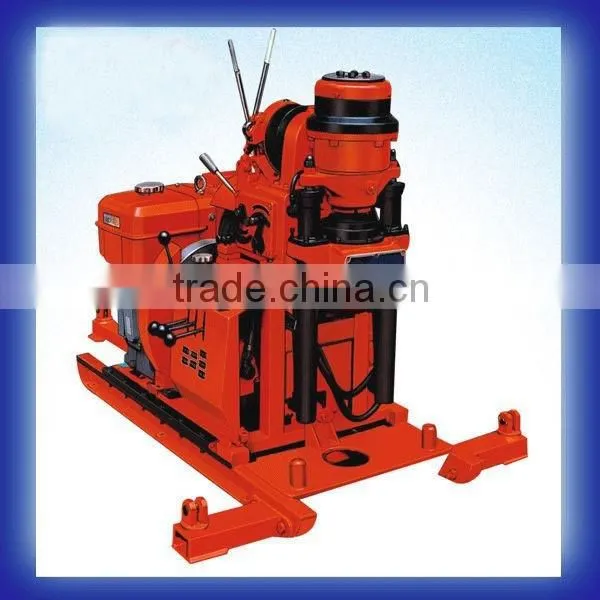

TPY-30 Shallow Hole Exploration Drilling Rig

TPY-30 Shallow Hole Exploration Drilling Rig thumbnail-1
TPY-30 Shallow Hole Exploration Drilling Rig thumbnail-2
TPY-30 Shallow Hole Exploration Drilling Rig photo-1

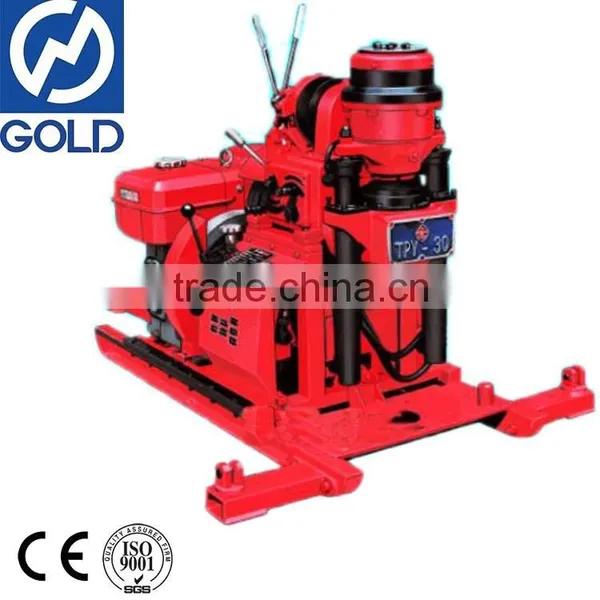

TPY-30 Shallow Hole Exploration Drilling Rig photo-2
US$ 1 - 18,888 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, shallow-hole drilling machine
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Chongqing Huobo Surveying Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, shallow-hole drilling machine
Power Type Diesel
Place of Origin Chongqing, China
Brand Name GOLD
Model Number TPY-30
Usage Other, core drilling machine
Voltage 380V
Power(W) 6.25KW
Dimension(L*W*H) 1270*624*890mm
Weight 240Kg
Certification ISO9001:2000
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas



Product Description





TPY-30 drilling machine is a type of shallow-hole drilling machine for exploration, it is suitable for drilling in soil, sand soil and medium harden rock drilling. It can be used not only in both explosion hole drilling for petroleum survey and core drilling for engineering geological exploration, but also in foundation exploration of industrial and civel buil dings, and grout hole drilling for reservoir and dam. .









 1. Light, good detachability, easy moving, suitable for mountainous area.Mechanical

  2. transmission, hydraulic feed, equipped with hydraulic chuck, increase drilling efficiency, reduce labour strengthness.Hydraulic retraction to let the drill body away from the hole, easy lifting and lowering the drilling tools.
  3. Perfect performances, simple and compact design, easy operation.
  4. Largely powered, reasonable speed range, suitable for various drilling methods.
  5. Equipped with light and detachable aluminium alloy derrick.





specifications



Drilling capacity
Hole dia
Φ75mm,Φ110mm
Depth
25m,30m

Rotation table speeds
110;234;332

Rotation table output torque
0.326
Max pull force
20
Feed stroke
350
Retraction stroke
220
Single rope max lift force
3.43
Hoisting speeds (the second layer)
0.58;1.15;1.78
Oil pump
CBW-F203-AFPL
Drill body Weight (excluding power unit) (kg)
240
Overal dimensions(L*W*H)
1270*624*890
Power unit
Diesel engine
Model
R185A
Power
6.25
Speed
2400

Electric motor
Model
Y132S1-2
Power
5.5
Speed
2900







Packaging & Shipping



Package: Wooden Case or Plywood

Shipping: within 10 working days after receival of deposit



Our Services

   Engineers available for overseas service of the machinery



Company Information

  Established in 2009.Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
