XY-2BLB Deephole Hammer Drill Rig

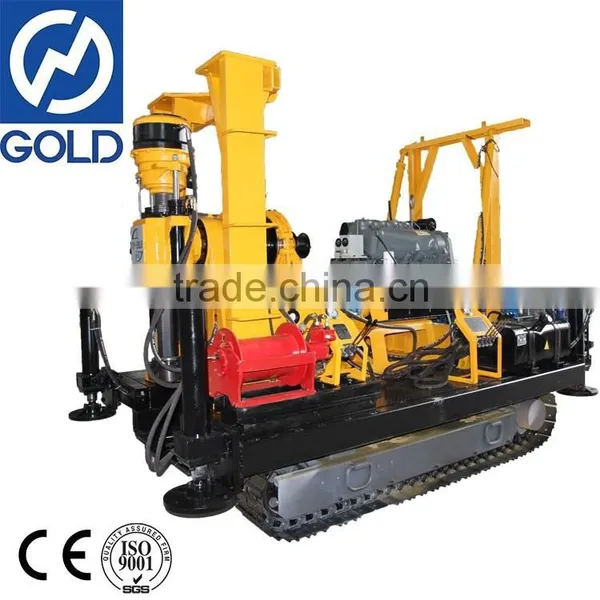

XY-2BLB Deephole Hammer Drill Rig thumbnail-1

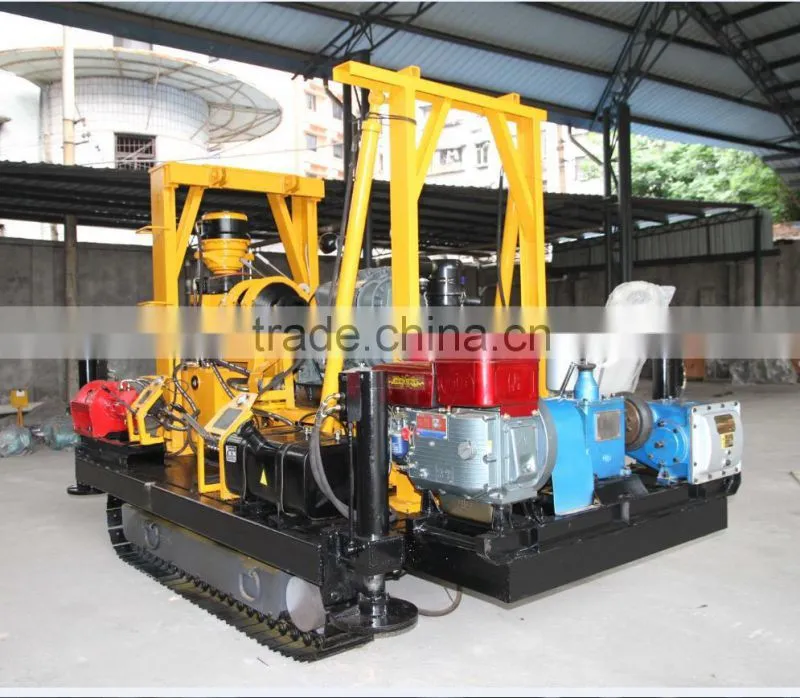

XY-2BLB Deephole Hammer Drill Rig photo-1
US$ 1 - 18,888 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Chongqing Huobo Surveying Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Chongqing, China
Brand Name GOLD
Model Number XY-2BLB
Usage Coal
Voltage 380V
Power(W) 30Kw
Dimension(L*W*H) 4450*2166*3080mm
Weight 5500 Kg
Certification ISO9001:2000
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas



Product Description

      XY-2BLB rig is developed based on our XY-2 core drilling rig , integrating drilling rig, crawler, mud pump, console rack and other devices into the integral one. It is mainly targeted at the shallow-medium  hole of geology core drilling, and where the mobility is important. It is modular and integral drilling rig.

  1. Crawler, the whole support rigs and tower with ups and downs are controlled by the hydraulic system of the rig, easy to operate and transport
  2. Rig has two reverse gear speeds, easy to deal with incidents;
  3. Rig has longer feed stroke as long as 600mm, will help improve drilling efficiency and reduce blocking drill, burning accidents



specifications



1 Drilling depth (NQ drill rod) Approximately 500m
2 Spindle speed Forward 57; 99; 157; 217; 270; 470; 742; 1024
Reverse 45; 212  r/min
3 Spindle Maximum torque 3200 N·m
4 Spindle max pulling force 60 KN
5 Spindle stroke 600 mm
6 Max. lifting force of the hoist with single rope 30 KN
7 Inner diameter of the spindle 96 mm
8 Retraction distance 305 mm
9 Retraction distance for the host drill rig 330 mm
10 Retraction distance for both drill rig and tower 160 mm
11 Oil pump SCB32/12 double gear pump
12 Power unit engine power 30 KW  1500 r/min
electric motor 22 KW  1470 r/min
13 Crawler maximum walking speed 1.2  km/h
14 Crawler Climbing capacity no more than 25 °
15 Tracked Ground pressure 0.042  MPa
16 Rig height 8 m
17 Hook load of the tower 29.4 kN
18 Max.static load of crown block beam 58.8 kN
19 Quantity of pulley 2
20 Angle range of tower ups and downs 0°~ 90°
21 Rig Dimensions ( tower horizontal position ) (L*W*H) 4450×2166×3080  mm
22 Total weight 5500 kg





Packaging & Shipping



Package: Wooden Case or Plywood

Shipping: within 10 working days after receival of deposit



Our Services

    Engineers available for overseas service of the machine



Company Information

  stablished in 2009.Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
