Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Wide Process Water Well Drilling Rig XY-2B

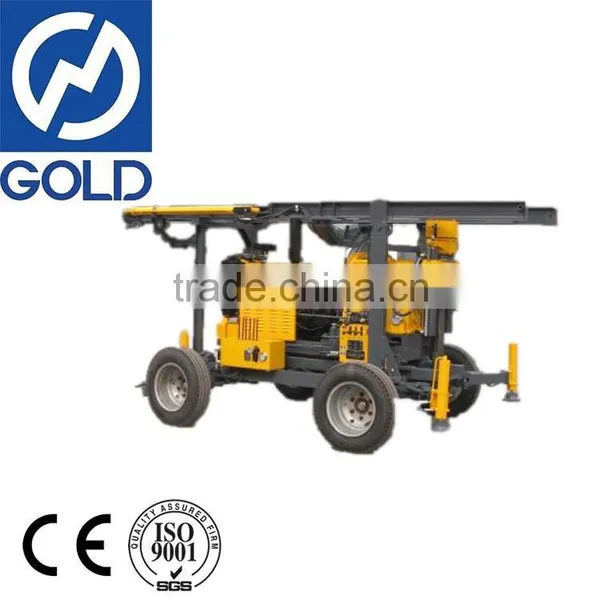

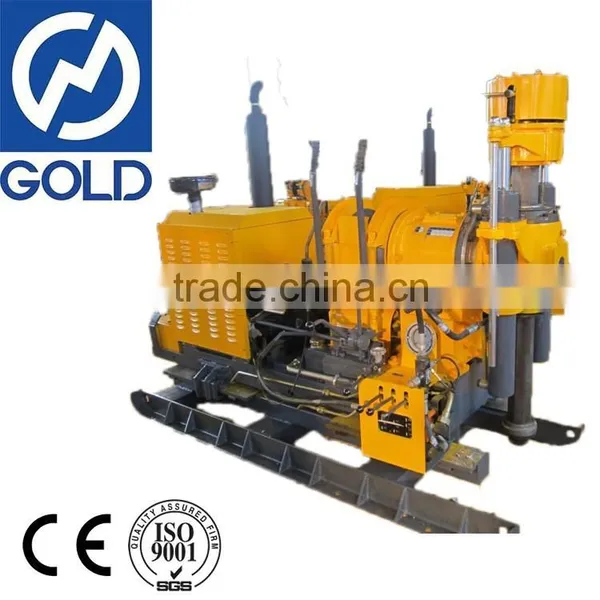

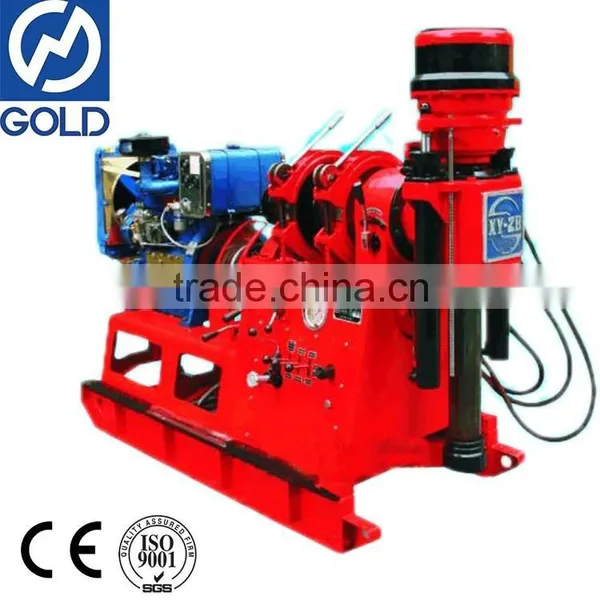

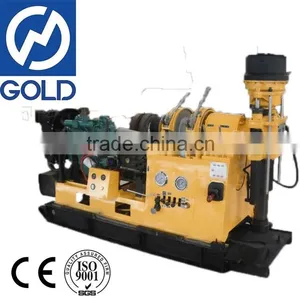

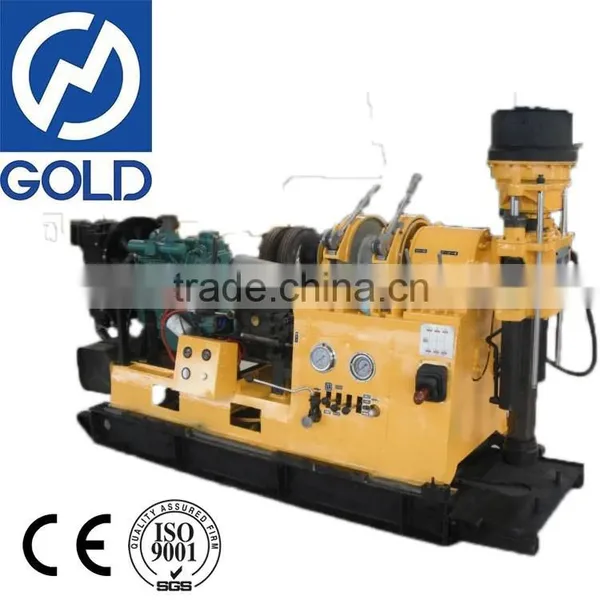

Wide Process Water Well Drilling Rig XY-2B

Wide Process Water Well Drilling Rig XY-2B thumbnail-1
Wide Process Water Well Drilling Rig XY-2B thumbnail-2
Wide Process Water Well Drilling Rig XY-2B thumbnail-3
Wide Process Water Well Drilling Rig XY-2B thumbnail-4
Wide Process Water Well Drilling Rig XY-2B photo-1
Wide Process Water Well Drilling Rig XY-2B photo-2
Wide Process Water Well Drilling Rig XY-2B photo-3
Wide Process Water Well Drilling Rig XY-2B photo-4
US$ 1 - 18,888 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Chongqing Huobo Surveying Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Chongqing, China
Brand Name GOLD
Model Number XY-2B
Usage Ore
Voltage 380V
Power(W) 30 kW
Dimension(L*W*H) 2220*900*1880 mm
Weight 1200 kg
Certification ISO9001:2000
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas



Product Description

    XY-2B drill rig derived from xy-2 drill rig, it not only keeps all performances of xy-2 drill, but also adds spindle inner hole diameter to 96mm. It is especially available for constructions of hydroelectric power station, highway, railroad and harbor etc. In common with xy-2 drill in all design but hydraulic chuck and rotary head modified.



specifications




Drilling capacity (m)

Φ73 rod

100

Φ60 rod

200

Φ50 rod

380

Φ42 rod

530

BQ rod

400-560

NQ rod

350-500

HQ rod

200-350


Spindle speed(r/min)

 Forward

57;99;157;217;270;470;742;1024

 Reverse

45;212


Max torque(Nm)

2760


Drilling angle renge

0-90°


Spindle max pull force(KN)

60


Spindle stroke (mm)

600


Hoist max lift capacity with single rope (KN)

30


Spindle inner dia (mm)

76


Oil pump

SCB32/12


Power unit


Electric motor

Y180L-4,22Kw


Diesel engine

395K2,19.85Kw


Inner dia of spindle (mm)

2150×900×1690


Drill weight(excluding power)(kg)

950





Packaging & Shipping



Package: Wooden Case or Plywood

Shipping: within 10 working days after receival of deposit



Our Services

   Engineers available for overseas service of the machinery



Company Information

  Established in 2009.Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
