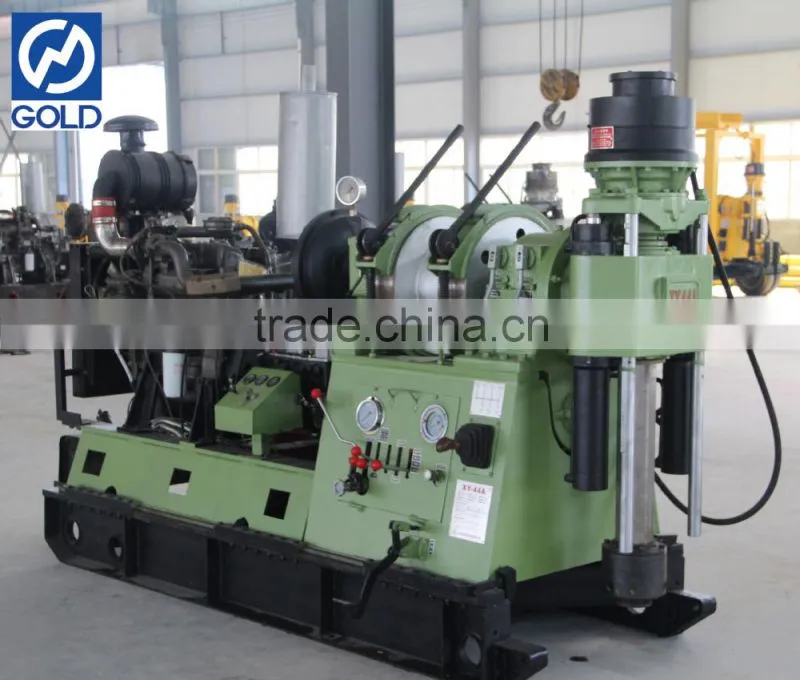

Drilling machinery, 1000m multi spindle core drilling machine for mineral exploration
Drilling machine equiped with water brake
Drilling machine depth- 600-1400m
Drilling machine hole diameter- 300-75mm
ISO & CE cetificated
1.APPLICATION
XY-44A Core drill, a new type of product with enhanced capacity, is a kind of hydraulic-driven, spindle, diamond-bit, samll-diameter core drill with fairly powerful drilling force. It is mainly suitable for metal or non-metal mineral resources exploration. It is widely applied in core drill with diamond bit or hard tungsten-carbide-tipped bit in the fields of geological, metallurgy, coal mine, hydrological and engineering drilling. It can also used in the fields of superficial-zone petroleum nad natural gas mining, mine workings wentiuse on and water discharge tunnel drilling as well as foundation pile drilling.
2.FEATURES
-8 speed grades, reasonable speed range and high torque while low speed. Max.torque-3200 Nm.
-Large spindle inner diameter 93mm, long stroke-600mm
-Powerful drilling capacity,drilling depth comes up to 1000m with 71mm wire line drill rod.
-Can be dismanted into 10 parts, easily moved in mountain area
-Equipped a water brake
3.SPECIFICATION
| Unity machine parameter | |
| Drilling depth | 600-1400m |
| Max open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drilling Rod diameter | 60mm |
| Drilling angle | 90°~65° |
| Drill rig moving stroke | 450mm |
| Spindle | |
| spindle speed ( Diesel Engine) | Forward 60 97 169 187 276 301 284 487 521 847 1180 1490r/min |
| Reverse 65 201r/min | |
| spindle speed ( Electric Motor) | Forward 50 81 141 155 230 251 320 406 434 706 984 1247r/min |
| Reverse 54 167r/min | |
| Spindle stroke | 600mm |
| Spindle max. pressure force | 90KN |
| Spindle inner diameter | 96mm |
| Lifting capacity | 120KN |
| Main Hoist | |
| Max.Single line lifting capacity | 45KN |
| Max.Single line lifting speed | 0-45m/s |
| Wirerope caliber | 17.5-18.5mm |
| Hoist capacity of wireline | 90-110m |
| Roller Diameter | 140mm |
| Wirerope Diameter | 6mm |
| Wirerope length | 450m |
| Mud pump | |
| Type | BW-250 |
| Displacement | 250 L/min |
| Work pressure | 80kg/cm² |
| Water inlet pipe diameter | 75 mm |
| Water outlet pipe diameter | 50 mm |
| Power | |
| Diesel engine | YC4E135-1 100KW |
| Electric motor | Y225S-4 37KW |
-Plywood
-Woodencase
-Normal packing
Delivery within 10 working days
Our company can provide overseas services!
We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!
Web:
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing oil treatment equipment. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil purifiers which are excellent in quality, capable of standing wear, complete in various styles. And its aviation, ship, railway, pharmacy and edible oil processing. Though highly acclaimed and favorably accepted by numerous customers and possessed of the right to import and export, to ensure the high quality of our products, we conduct our manufacturing in strict accordance with the standard JB/T5285-2001 by Ministry of Machine Building, standard DL/T521-2004 by Ministry of Power Industry.
