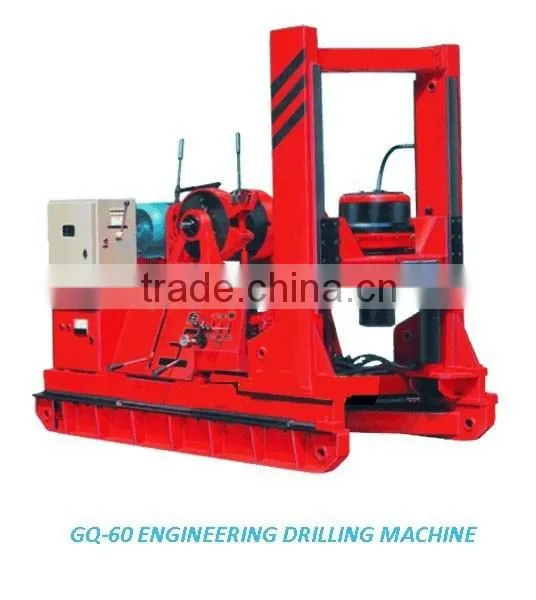

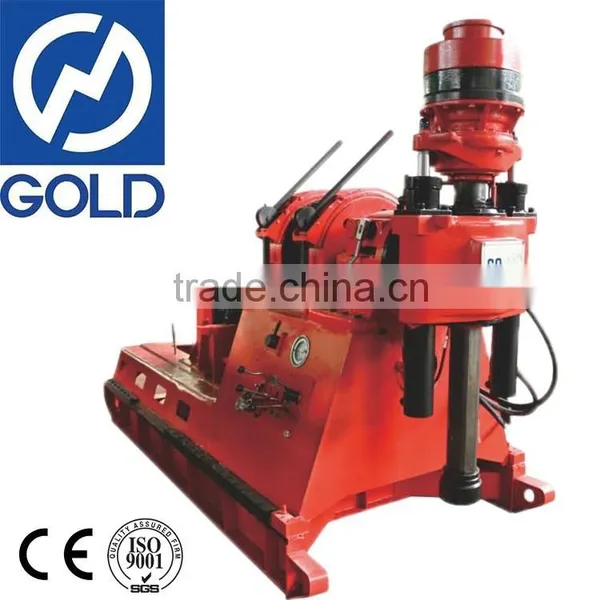

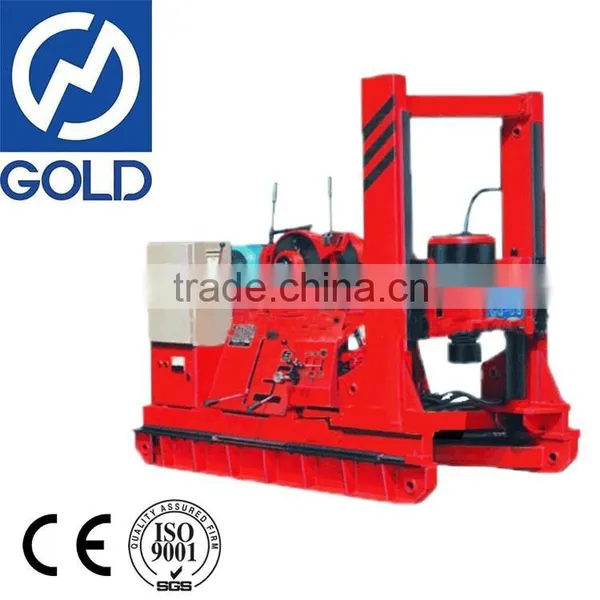

This drilling machine is newly designed and manufactured according to the requirement of foundation engineering, suitable for drilling medium mini-type groutig hole of building, skyscraper, dam and harbor and drilling water well.
- Mast structure, top-drive head can move down or up along with,strength and rigidity.
- Large torque, compact structure, easy to move.
- Top-drive head is equipped with hydraulic chuck,drilling efficiently.
- Reasonable arrangement, easy to operate, smooth and quick.
| hole dia (mm) | 600 | |
| drilling capacity (m) | 30 | |
| topdrive head speeds(r/min) | forward | 40;118;218;300 |
| reverse | 62 | |
| max torque (N.m) | 4500 | |
| topdrive head max pull force (KN) | 58.86 | |
| topdrive head max pulsh force (KN) | 44.15 | |
| top-drive head stroke (mm) | 700 | |
| hoist lift capacity with singlerope (KN) | 30 | |
| retracting stroke (mm) | 580 | |
| oil pump | CB32 oil gear pump | |
| power unit | electric motor for rotary | Y180L-4 22KW |
| electric motor for hoist | Y160M-4 11KW | |
| innerdia if spindle (mm) | 2200×1200×2050 | |
| drill body weight(kg) | 2500 | |
Package: Wooden Case or Plywood
Shipping: within 10 working days after receival of deposit
Engineers available for overseas service of the machinery
Established in 2009.Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
