Crawler-Mounted Water Well Drilling Rig For Water Eploration

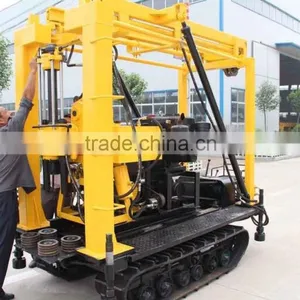

Crawler-Mounted Water Well Drilling Rig For Water Eploration thumbnail-1

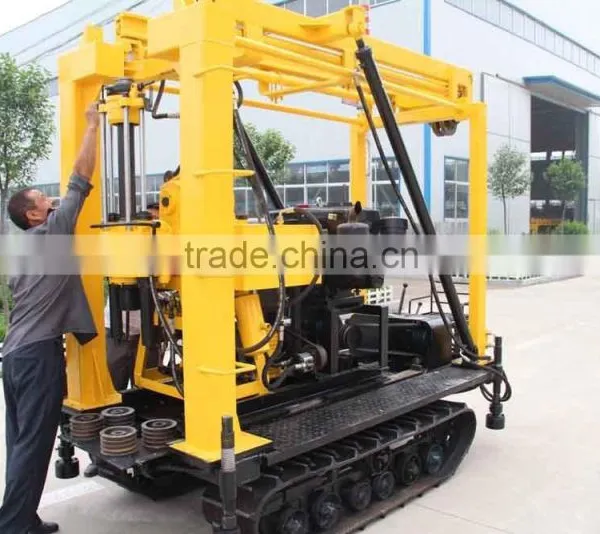

Crawler-Mounted Water Well Drilling Rig For Water Eploration photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Chongqing Huobo Surveying Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Chongqing, China
Brand Name GOLD
Model Number XYX-3
Usage Water Well
Power(W) 22KW
Dimension(L*W*H) 1*1.2*2.5
Weight 2000KG
Certification ISO
Warranty 12month
After-sales Service Provided Engineers available to service machinery overseas
Drilling depth
m
100
250
300
600
Drilling  DI
mm
300
200
150
75
Open hole DI
mm
300
End hole  DI
mm
75
Drilling rod
mm
Φ60
Drilling angle

90°-65°
Rotary Spindle
Spindle forward speed
r/min
30-1050
Spindle reverse speed
r/min
29-137
Spindle stroke
mm
560
Spindle inner diameter
mm
96
Spindle lifting capacity
KN
60
Main Winch  ( drive hydraulic system)
Single line lifting speed
m/min
0-45
Hug floodgate belt width
mm
90
Tightrope diameter
mm
14
Hoist single line lifting capacity
KN
40
Roller diameter
mm
200
Roller cubic measure
m
30
Minor Winch  ( drive hydraulic system)
Roller diameter
mm
140
Wire rope diameter
mm
6
Capacity roller
m
450
Mud pump
Horizontal Triplex BW-250 mud pump
Displacement
L/min
250
Work pressure
Mpa
7
Water inlet caliber
mm
75
Water to exit caliber
mm
50
Gear Oil pump
Duplex gear oil pump           CBF-F63/25
Front displacement,pressure

63mL/r    20Mpa
Behind displacement,pressure

 25mL/r    20Mpa
Drilling rig Power
Diesel engine
Hp
   R4105ZD    76HP
Electric motor
KW
   Y180L-4      22KW
Crawler chassis
moving speed
2Km/H
motor work pressure
20Mpa
Displacement
1634ml/rev
