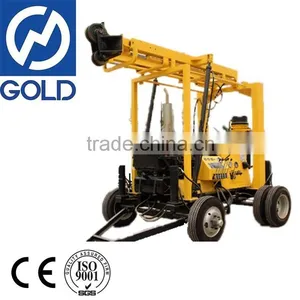

Help CenterXYX-3 Trailer Mounted Water Well Drilling Rig
Related Products
-
Good Quality Core Hydraulic Portable Drilling Rig MGJ-50NegotiableMOQ: 1 Set -
Drilling Machinery, XT-6R Track Mounted Hydraulic Geothermal Hole Drilling Rigs for SaleNegotiableMOQ: 1 Set
-
Small Portable Bore Well Drilling Machine FKW-12US$ 1 - 18,888MOQ: 1 Set
-
Hydraulic Anchoring Drilling Rig MGQ-30US$ 1 - 18,888MOQ: 1 Set
-
Hydraulic Drilling Rig GQ-60US$ 1 - 18,888MOQ: 1 Set
XYX-3 water well drilling machine is mainly used for geological exploration, hydropower project, road and railway construction, buliding project and big diameter water well project
a. Equipped with wheel undercarrigae device and hydraulic suppeot cylinder, it's very convenient for transport and adjusting the drilling rig level
b. Hydraulic oil pressure feed device, improves drilling efficiency
c. Equipped with normally closed hydraulic chuck, operation is flexible and reliable
d. Pressure gauge display the condition of the bottom of the drill hole
e. Drill mast controlled by hydraulic cyliner, improve the efficiency
f. Diesel engine adopt the electric starter, to reduce the labor itensity
| Unity machine parameter | |
| Drilling depth | 600m |
| Max open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drilling Rod diameter | 60mm |
| Drilling angle | 90°~65° |
| Spindle | |
| spindle speed | Forward 30-1050r/min |
| Reverse 29-137r/min | |
| Spindle stroke | 560mm |
| Spindle inner diameter | 96mm |
| Lifting capacity | 60KN |
| Main winch | |
| Max.Single line lifting capacity | 40KN |
| Max.Single line lifting speed | 0-45m/min |
| Wirerope caliber | 14mm |
| Wirerope length | 30m |
| Reel diameter | 300mm |
| Hug folldgate belt width | 90mm |
| Minor winch | |
| Reel diameter | 140mm |
| Wirerope caliber | 6mm |
| Wirerope length | 450m |
| Mud pump | |
| Type | Horizontal Triplex BW-250 mud pump |
| Displacement | 250 L/min |
| Work pressure | 7 Mpa |
| Water inlet pipe diameter | 75 mm |
| Water outlet pipe diameter | 50 mm |
| Gear Oil pump | |
| Duplex gear oil pump | CBF-F63/25 |
| Front Displacement, pressure | 63 L/min 20Mpa |
| Behind Displacement, pressure | 25 L/min 20Mpa |
| Power | |
| Diesel engine | 37KW |
| Wheel undercarriage | |
| Chassis loading | 3T |
| Chassis length | 2.6m |
| Chassis with | 2m |
| Max high crawler | 0.6m |
Package: Wooden Case or Plywood
Shipping: within 10 working days after receival of deposit
Engineers available for overseas service of the machinery
Established in 2009.Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
