Efficient Engineering Spindle Drilling Machine

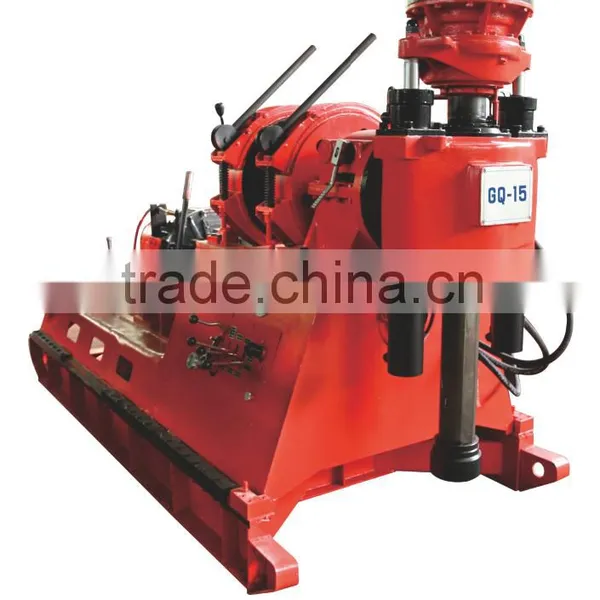

Efficient Engineering Spindle Drilling Machine thumbnail-1
Efficient Engineering Spindle Drilling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Chongqing Huobo Surveying Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Chongqing, China
Brand Name GOLD
Model Number GQ-15
Usage Other, pile drilling
Voltage 380V
Power(W) 37KW
Dimension(L*W*H) 3620*1880*2704
Weight 5900kg
Certification ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Efficient Engineering drilling rig with competitive price and good quality









Efficient engineering spindle drilling machine





1.APPLICATION

GQ-15 engineering drilling machine is newly designed special for large diameter pile hole drilling, can use forward-circulation and reverse circulation drilling methods mainly used in drilling large diameter pile for building, skyscraper, dam, harbor, bridge etc. and drilling large diameter well.



2.FEATURES

 -Big torque, lightweight and compact structure in compare with same kind machine.
 -Mast, top-drive head move down or up along with, strength and rigidity.

 -Top-drive head has large inner diameter (182×182mm).
 -Reverse-circulation drilling if equipped with necessary equipment as well as forward-circulation drilling.

 -Strength, five forward speeds and one reverse speed, suitable for drilling a variety of rock, easy to handle accidents happened in hole.
 -Top-drive head is equipped with hand-powered chuck, square driving stem, large stroke, drilling efficiently.

 -Hydraulic feed, big pull and push force easy to make pressure and depression drilling.

 -Hydraulic retracting stroke is 1150mm, easy to lower and hoist drilling tools.

 -Walking device, easy to move and find accurate hole position.

 -Reasonable arrangement, easy to operate, smooth.

 -Can be equipped with special derrick if user needs.



3.SPECIFICATION



hole dia (mm) 600-1500
drilling capacity (m) 100-50
top drive head speeds(r/min) forward 13.5;22.8;40.19;63.9;98.5
reverse 12.85
max torque (N.m) 22100
top drive head inner hole (mm) 182182
top drive head max pull force(KN) 27
top drive head max push force(KN) 98.3
top drive head stroke(mm) 1000
hoist lift capacity with singlerope(KN) 48
retracting distance(mm) 790
oil pump SCB32/12 twin-gear oil pump
power unit electric motor Y225S-4 37KW
diesel engine 2135AG 50Hp
overal dimensions(L*W*H)mm 3620×1880×2704
drill body weight(excluding power)kg 5900
