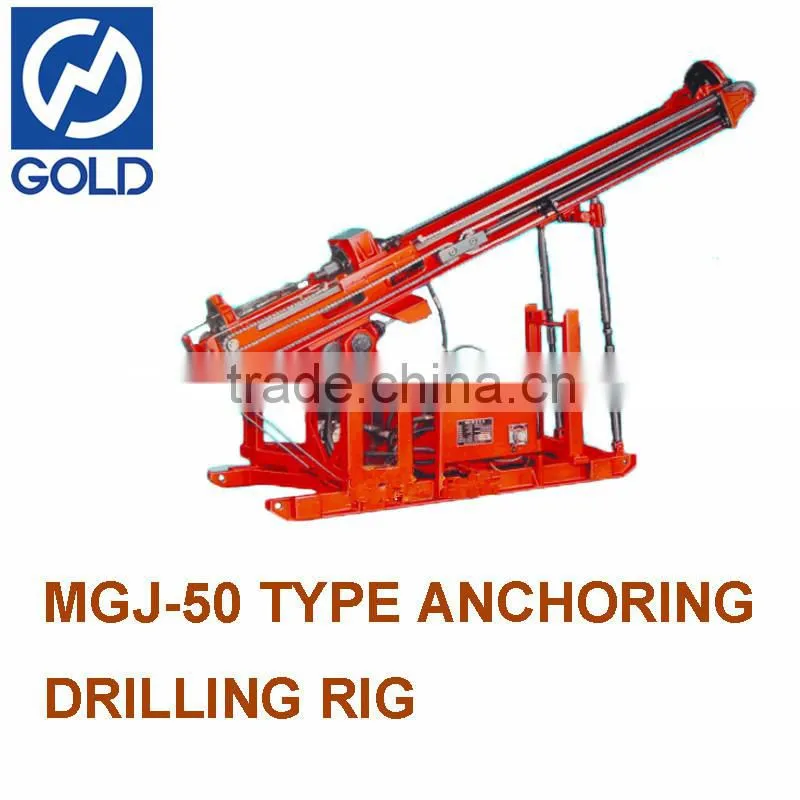

Hot sale, Efficient anchor drilling rig for consolidation
MGJ-50
1.APPLICATIONS
Mainly used for soil and rock anchoring, consolidating and strengthening foundation of highway and dam and retaining wall, preventing soil and rock from collapsing, supporting in deep foundation pit, pin timbering in underground engineering and handling the foundation of skyscraper.
2.FEATURES
Top head drive drill, mechanical transmission, hydraulic feed and drilling angle range(one plane): 180° for electric motor, 90°for diesel engine.
3.SPECIFICATIONS
| Hole dia (mm) | 110-180 | Drilling capacity (m) | 60-30 | |
| Angle range | Electric motor0-180°; diesel engine 0-90° | |||
| Top-drive head speeds (r/min) | Power type | Electric motor | Diesel engine | |
| Low series | Forward | 32;59;108;187 | 40;74;135;233 | |
| Reverse | 26 | 32 | ||
| High series | Forward | 59;110;200;343 | 74;138;250;429 | |
| Reverse | 48; | 60 | ||
| Max torque(Nm) | 2800 | |||
| Top-drive head travel(mm) | Normal mast | 2300(single rod length 2000) | ||
| Shorter mast | 1500(single rod length 1200) | |||
| Shortest mast | 1200(single rod length 800) | |||
| Pull force(KN) | 14.6,22 for elevation(90°-180°) | |||
| Push force(KN) | 14.6,22 for elevation(90°-180°) | |||
| Hoist speeds(m/s) | 0.259,0.393 for elevation(90°-180°) | |||
| Oil pump | SCB32/12 double gear oil pump | |||
| Power uint | Electric motor Y160M;diesel engine S1100;11KW(Anchoring drilling) | |||
|
Overal dimensions(L*W*H)(mm) |
Type | Transportation | Weight(kg) | |
| Normal mast | 3525*1000*1225 | 850 | ||
| Shorter mast | 2725*1000*1225 | 780 | ||
| Shortest mast | 2425*1000*1225 | 720 | ||
Our company can provide overseas services!
We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing oil treatment equipment. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil purifiers which are excellent in quality, capable of standing wear, complete in various styles. And its aviation, ship, railway, pharmacy and edible oil processing. Though highly acclaimed and favorably accepted by numerous customers and possessed of the right to import and export, to ensure the high quality of our products, we conduct our manufacturing in strict accordance with the standard JB/T5285-2001 by Ministry of Machine Building, standard DL/T521-2004 by Ministry of Power Industry.
