Help CenterEasy Operation MGY-90 Hydraulic DTH Hammer Tunnel Boring Rig
Related Products
-
ZLJ-2900 Drilling Machine in Coal Mine DrillingUS$ 1 - 2MOQ: 1 Set -
Large Torque Easy Operation MGY-80 Hydraulic Anchoring Drilling Rig With Drilling BitUS$ 1 - 18,888MOQ: 1 Set
-
XY-44A High Performance Diamond Core Drilling RigNegotiableMOQ: 1 Set
-
Powerful HZ-130Y Water Well Drilling RigUS$ 1 - 18,888MOQ: 1 Set
-
Borehole Drilling, Water Well Drilling Rig XY-2BUS$ 1 - 18,888MOQ: 1 Set
The hydraulic drilling rig is mainly used in railway, highway, water conservancy,hydropower station, the anchorage hole landslide and dangerous rock anchorage engineering drainage hole, grouting hole, and also used in blasting engineeringblasting holes and tunnel pipe roof construction of retaining hole.
1. The rig structure compact, light weight and detachable, convenient move andposition; adopts full hydraulic control, flexible operation Time saving, labor saving, and remote operation.
2. The use of low speed and high torque motor, so that the machine stable performance, reliable, long life.
3. Power head and the guide rail adopts a new wear-resistant plate, guide railabrasion.
No. |
Project name |
Unit |
Numerical |
1 |
Drilling capacity |
mm |
150 – 250 |
| 2 | Drilling hole dia. |
m |
100-50 |
3 |
Angle reange |
|
0°~ 360° |
| 4 | Dynamic output speed |
r/min |
46 |
| 5 | Dynamic output torque |
N.m |
3700 |
6 |
Power head max. feeding force |
kN |
44 |
7 |
Spindle max. pull force |
kN |
63 |
| 8 | Power head max. stroke |
mm |
1800 |
| 9 |
Power head rotary hydraulic system
|
|
Quantitative gear pump + quantitative oil motor |
| 10 | Feeding hydraulic system |
|
Quantitative gear pump+Cylinder chain speed mechanism 5 |
11 |
The rated pressure of hydraulic system |
Mpa |
20 |
| 12 | Electric power Y180L-4 |
kW |
22 |
| 13 | Overal diamensions (l×b×h) |
mm |
2900×1000×1320 |
| 14 | Drilling weight |
kg |
950 |

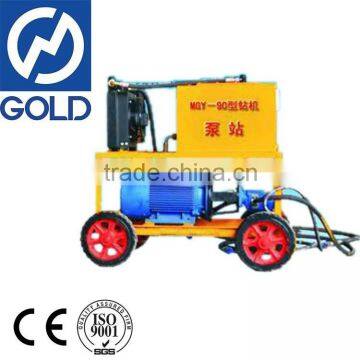

| 15 | Power diamensions (l×b×h) |
mm |
1340×880×1256 |
| 16 | Power weight(kg) |
kg |
450 |
| 17 | Operation panel diamensions(l×b×h) |
mm |
550×500×600 |
18 |
Operation panel weight |
kg |
60 |
Package: Wooden Case or Plywood
Shipping: within 10 working days after receival of deposit
Engineers available for overseas service of the machinery
Established in 2009.Chongqing Gold Mechanical & Electrical Equipment Co,. Ltd is a high-tech enterprise specializing in R&D design, manufacture and sale of geological instruments, oil instruments and other precise instruments and equipments.
