ZLJ-2900 Drilling machine in coal mine drilling
- 100 Set / Sets per Month
- Shanghai
- T/T Credit Card
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Electric |
Place of Origin: | Chongqing, China | Brand Name: | GOLD | Model Number: | ZLJ-2900 |
Usage: | Coal | Voltage: | 380V | Power(W): | 22kw |
Dimension(L*W*H): | 2150*900*1690mm | Weight: | 950kg | Certification: | ISO |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

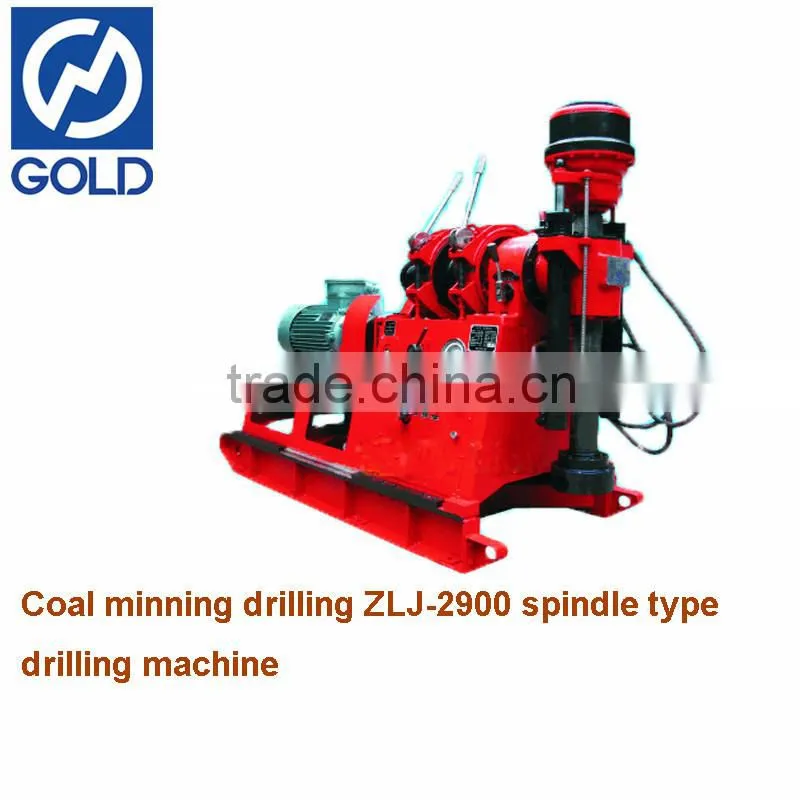

ZLJ-2900 Drilling machine in coal mine drilling
Drilling machine for coal mine exploration
Drilling machine for core drilling
Drilling machine with diamond bit, tungsten carbide bit
ISO & CE certificated
1.APPLICATIONS & FEATURES
ZLJ-2900 tunnel drilling machine for coal mining is developed based on XY-2 drilling rig of spindle type core drilling,it is suitable for tunnel engineering drilling with diamond bit,tungsten carbide bit in coal mining and underground exploration drilling for coal field.
It is light in weight,better quality,larger powered,wide performance and good interchangeavility.
2.SPECIFICATION
Name | Unit | Number | |
| r/min | 63/108/172/238/ | |
Rated output torque of rotation table shaft | N·m | 2900/1660/1030/ | |
Max.push force of spindle | kN | 44 | |
Max.pull force of spindle | kN | 60 | |
Max.feed speed of spindle | m/min | 0~6 | |
Max.feed stroke < | mm | 600 | |
Max.pull force of hoist with single | kN | 30 | |
Drum dia. | mm | Φ200 | |
Wire rope dia. | mm | Φ14 | |
Drum capacity | m | 45 | |
Drilling depth in theory | m |
| |
Type | 42mm/rod | 530 | |
50mm/rod |
| 385 | |
60mm/rod |
| 320 | |
AW/rod |
| 530 | |
BW/rod |
| 420 | |
NW/rod |
| 320 | |
Drilling angle range | º | -90~+90 | |
Rated pressure of hydraulic system | Mpa | 8 | |
Power of electric motor | kW | 22 | |
Overal dimension | mm | 2150×900×1690 | |
Weight(excluding power unit and rod) | kg | ≈950 | |
Max.weight of detached part | kg | 140 |
-Plywood
-Woodencase
-Normal packing
-Delivery within 10 working days
