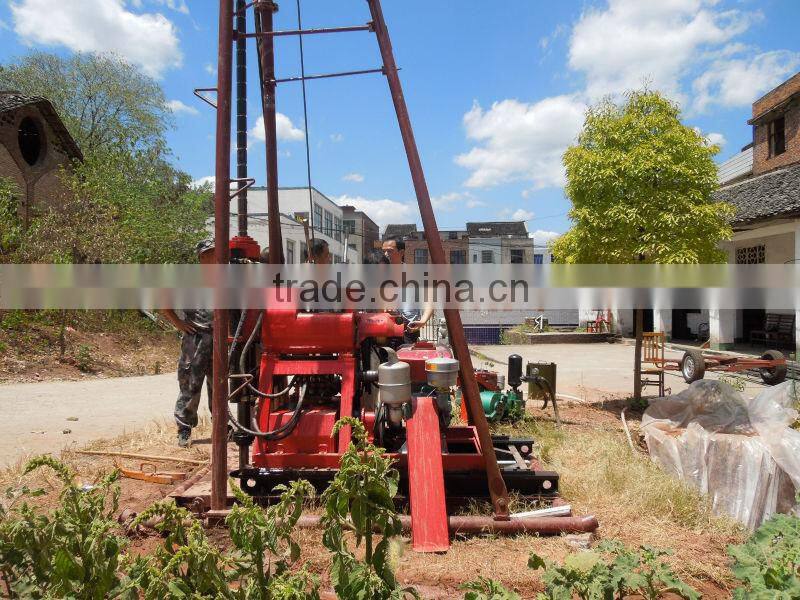

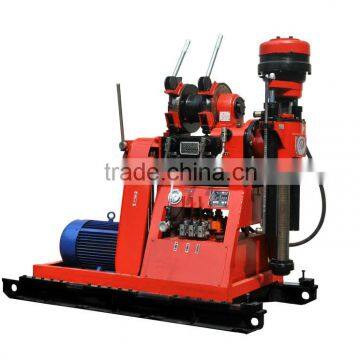

Help CenterHGY-200 Borehole Well Drilling Machine, Bore Well Drilling Machine
Related Products
-
Mini Portable Water Drilling Machine for SaleUS$ 1 - 2MOQ: 1 Set -
Small Portable Water Drilling Machine for SaleUS$ 1 - 2MOQ: 1 Set
-
100, 200m Home Use Water Well Drilling of HomeNegotiableMOQ: 1 Set
-
Small Water Well Drilling Rigs for SaleUS$ 1 - 2MOQ: 1 Set
-
0-200m Water Well Drilling Rig for SaleUS$ 1 - 2MOQ: 1 Set
bore well drilling machine
Brief introduction:
1.50 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Two patents for bore well drilling machine
Utility patent for transmission case.
Design patent for appearance.
| |||

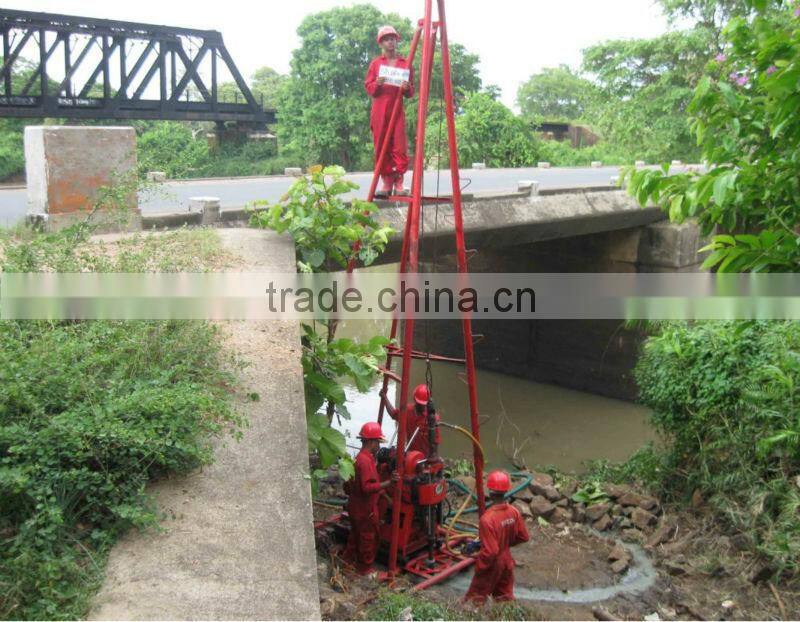

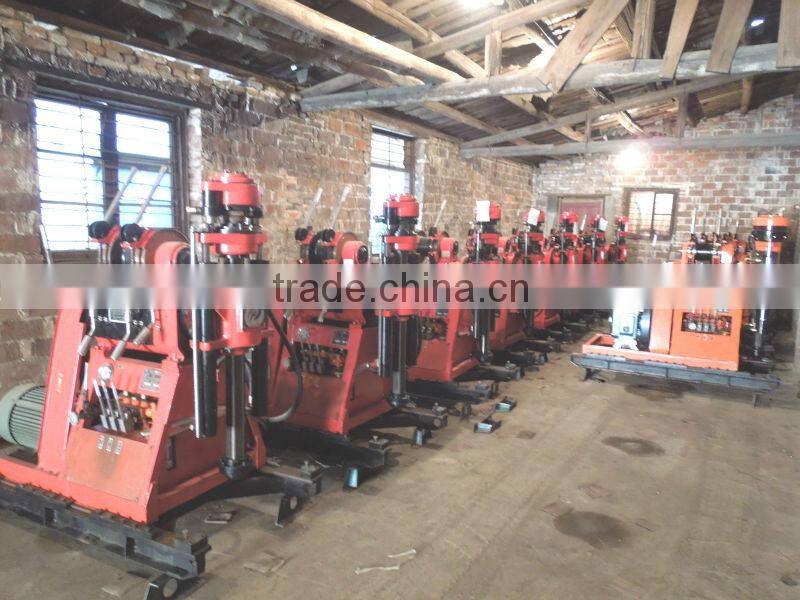

| Our factory | our team of foreign trade | In 1992, 100m drill in Antarctica in the world | Go to drilling site to train drilling knowledge |
Drilling Ability of bore well drilling machine rig
Drilling depth: 200m
Drill hole diameter: 75mm(46~250mm)
Max successful drilling depth: 427m, 478m with 75mm hole diameter
Features of bore well drilling machine
1) Good stability and high reliability.
2) Multilevel positive and reverse rotate speed.

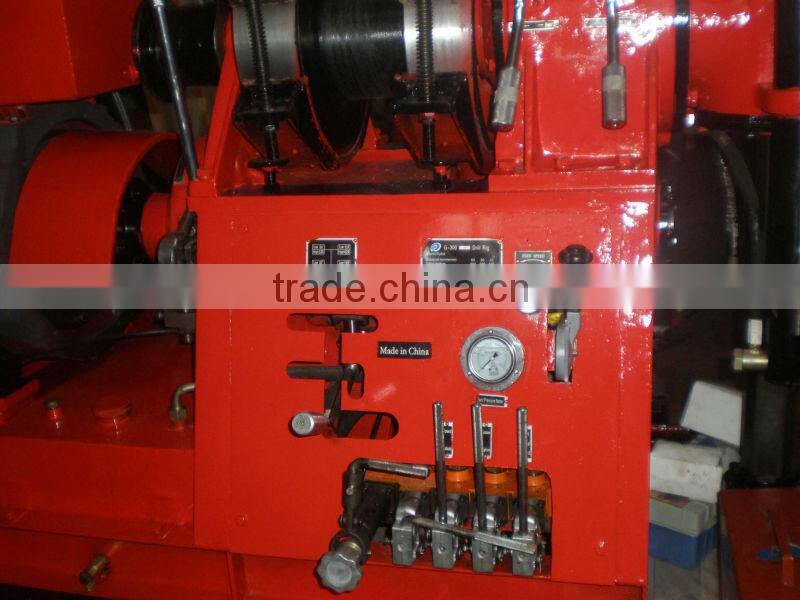

3) The complete hydraulic chuck and vertical spindle.
4) Convenient to transport with the small volume and light weight.
5 )Perfect frame's rigidity ,low center of gravity and good stability.
Technological Data of bore hole water drilling rig
Model |
Drilling Rig(HGY-200) |
Drilling depth( m) |
200 |
Drilling rod diameter.(mm) |
Φ50 |
Head angle range |
360 |
Movable cylinder stroke (mm) |
360 |
Spindle speed( r/min) |
Positive rotation rate:60 150 240 340 550 830 Reverse rotation rate: 35 85 135 195 330 480 |
Spindle hole diameter( mm) |
Φ65 |
Spindle output torque max(N.M) |
2140 |
Spindle stroke(mm) |
500 |
Lifting power max( KN) |
50 |
Driving force max(KN) |
37 |
Lifting speed( m/s) |
0.6 2.3 3.4 |
Lifting capacity(single) max(KN) |
20 |
Steel wire rope diameter (mm) |
11 |
Mode of chuck |
Full-hydraulic chuck or ball-type chuck |
Weight(power unit excepted)(Kg) |
750 |
Overall dimensions(mm) |
1860*800*1400 |
Diesel engine model |
Zs1110 ( 14.7KW) |
Electromotor model |
Y160L-4 ( 15KW)
|

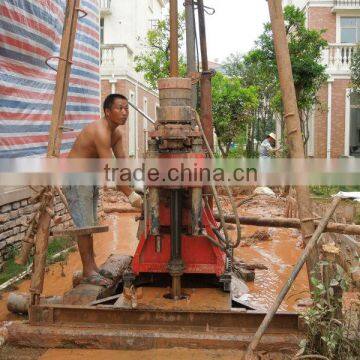

Use of bore hole water drilling rig : for geotechnical investigation,exploring, prospecting, water well drilling;Widely used in the construction of the projects e.g. prospectiong, railway, road, port, bridge, water conservancy and hydropower,tunnel,well, industrial and civil construcion, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
For water well, you also need drill tools as flow:
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
