Specifications
mini portable water drilling machine for saleDrilling depth:200m
Drilling Dia.:100~200mm
water well drilling,
soil, rock,

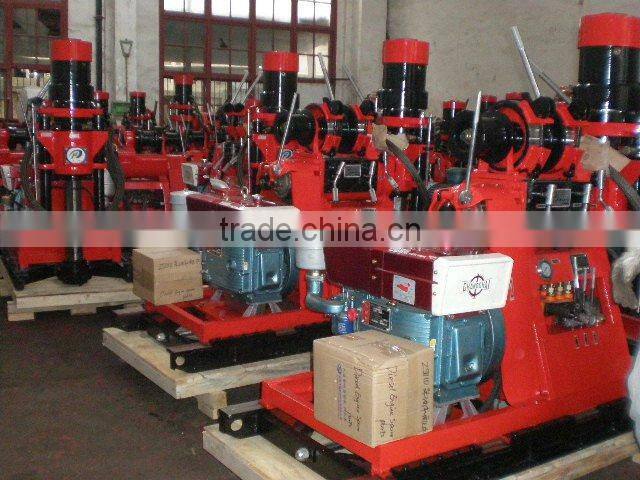

mini portable water drilling machine for sale
Two patents for mini portable water drilling machine for sale
Utility patent for transmission case.
Design patent for appearance.
Drilling Ability of mini portable water drilling machine for sale
Drilling depth: 200m
Drill hole diameter: 100~200mm(46~250mm)
Successful drilling depth: 427m, 478m with 75mm hole diameter
Features of mini portable water drilling machine for sale
1) Good stability and high reliability.
2) Multilevel positive and reverse rotate speed.
3) The complete hydraulic chuck and vertical spindle.
4) Convenient to transport with the small volume and light weight.
5 )Perfect frame's rigidity ,low center of gravity and good stability.
Technological Data of mini portable water drilling machine for sale
| Technological Data of Drilling Rigs | |
| Type | HGY-200 |
| Drilling depth(m) | 200 |
| Drilling rod diameter(mm) | 42 50 |
| Head angle range | 360° |
| Cylinder stroke (mm) | 360 |
| Spindle speed(r/min) |
Positive rotative velocity: 60 150 240 340 550 830 reverse rotative velocity: 35 85 135 195 330 480 |
| spindle hole diameter (mm) | 65 |
| Spindle output torque (N.M) | 2140 |
| Spindle stroke (mm) | 500 |
| Spindle driving force max. (KN) | 37 |
| Spindle lifting power max. (KN) | 50 |
| Lifting speed (m/s) | 0.6 2.3 3.4 |
| Single rope lifting power (KN) | 20 |
| Steel wire rope diameter (mm) | 11 |
| Mode of chuck | Full Hydraulic chuck |
| Weight (power unit excepted)(kg) | 750 |
| (L*W*H)(mm) | 1860×800×1400 |
| Diesel engine | Zs1110 (14.7KW) |
| Electromotor | Y160L-4(15KW) |
Application of mini portable water drilling machine for sale
1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Coal mining exploration, Ore exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
For water well, you also need drill tools as flow:
Brief introduction of water drilling machine for sale
1.50 years professional manufacture
2. Certificate: ISO9001:2000 and ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
| |||

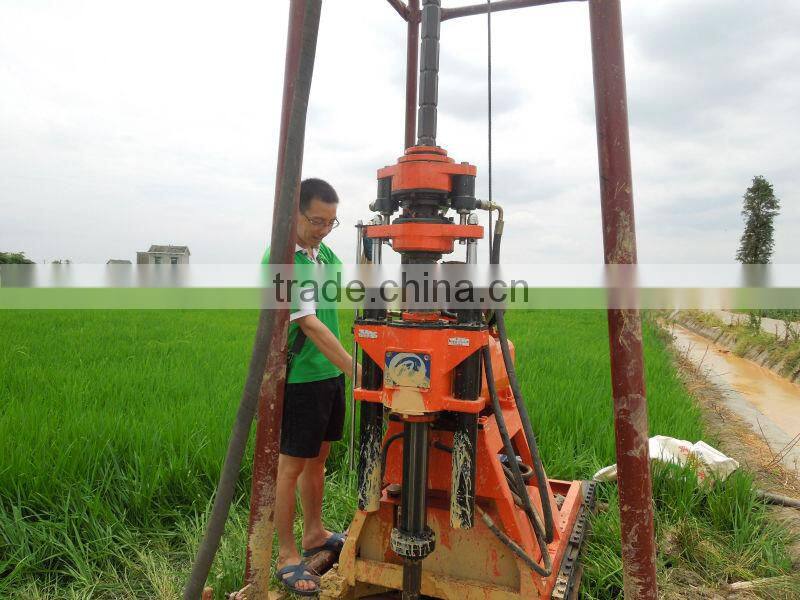

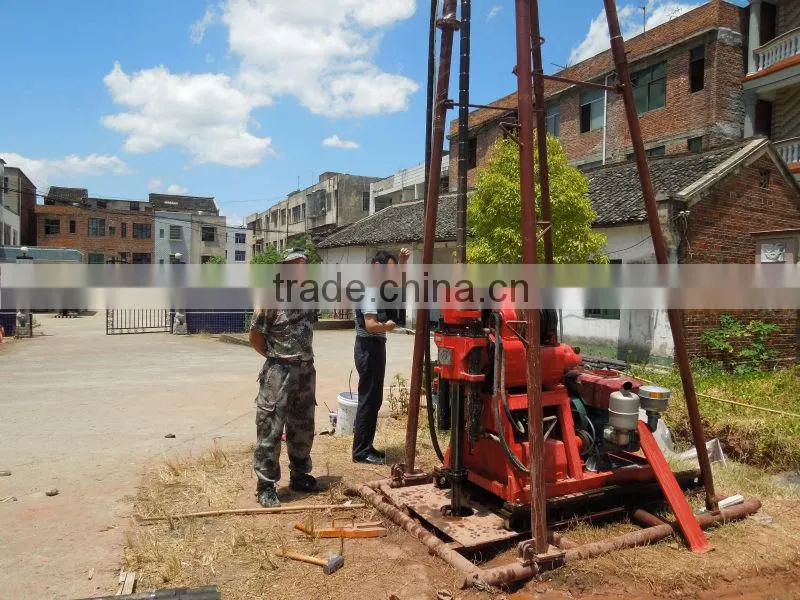

| Our factory | our team of foreign trade | In 1992, 100m drill in Antarctica in the world | Go to drilling site to train drilling knowledge |
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
