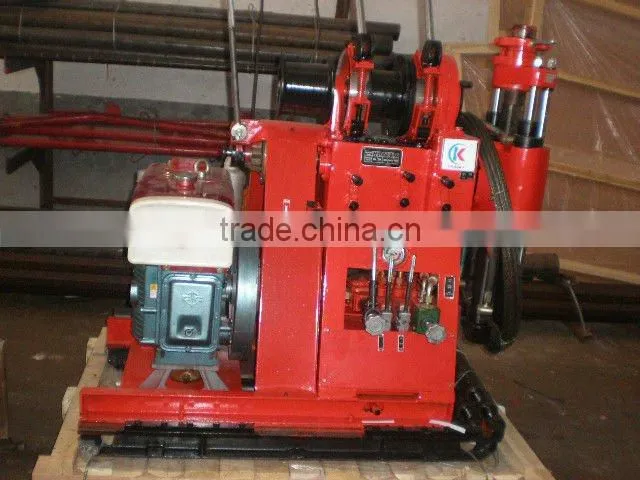

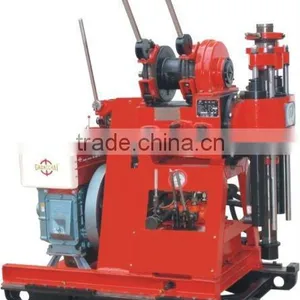

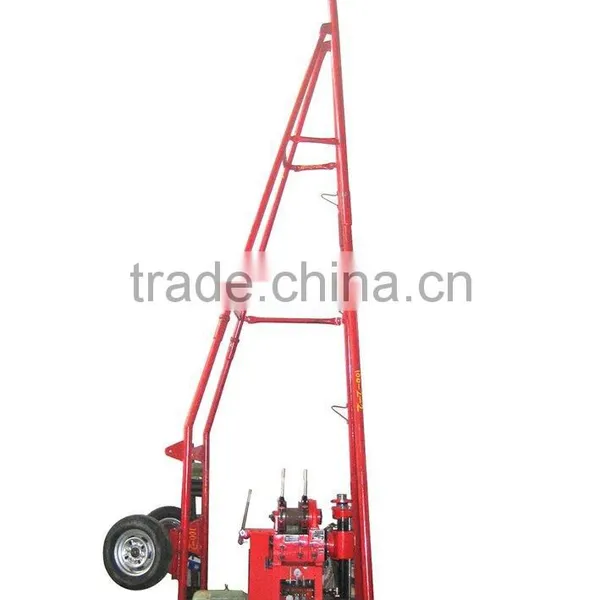

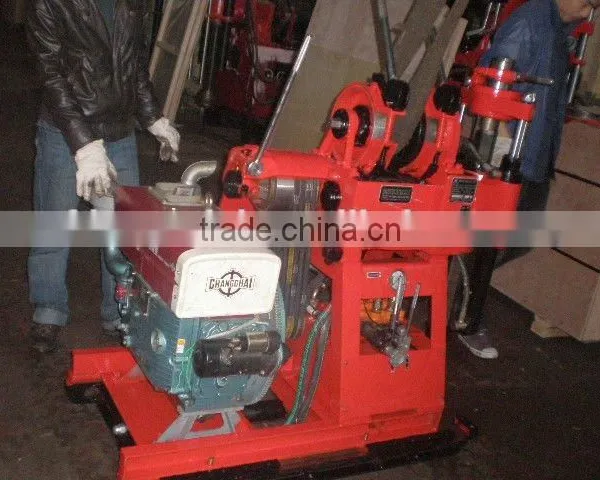

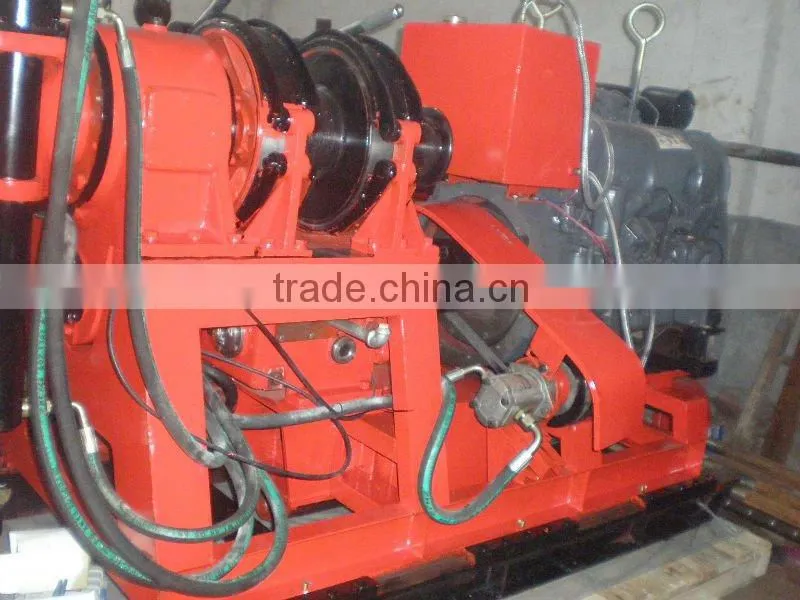

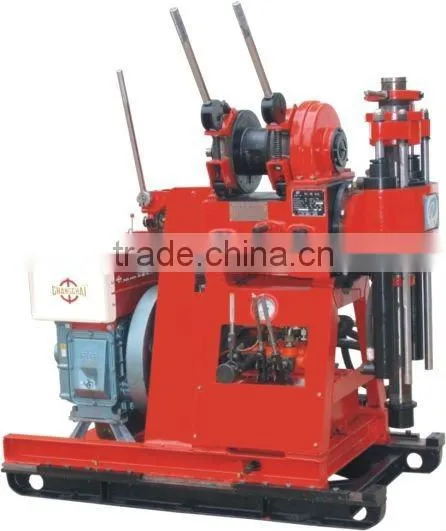

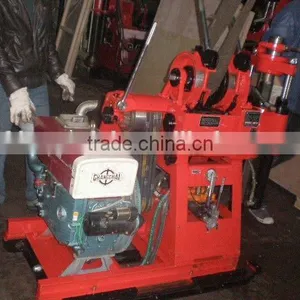

Help CenterXY-1 Water Well Drilling Rig and Machine
Related Products
water well drilling rig and machine
Company introduction
1. 50 years professional manufacturer
2. National-control Group company with 4 part factories
Main products: drilling rig and drill bit, others: diamond, PDC, bush
3. Certificate: ISO9001:2008
4. Main market: South America, Africa, the Middle East, Aisa
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc
Historical view of water well drilling rig and machine
1) 1992 the first drill rig for the sample boring from the deep stratum of antarctica in the world used by the Chinese Academy of science.
2) Best Quality Awards belonging to China National Nuclear Ministry Hunan province.
| |||
| Our factory | our team of foreign trade | In 1992, 100m drill in Antarctica in the world | Go to drilling site to train drilling knowledge |
Drilling Ability of water well drilling rig and machine
Drilling depth :100m
Drilling diameter: 75mm(46~200mm)
Features of water well drilling rig and machine
2) Excellent design and easy operation.
3) Alternative-designed unit constructions.
4) Accessories in common use.
Technological Data of water well drilling and rig machine
Model |
Diamond Core Drilling Rig(XUL-100) |
Drilling depth( m) |
100 |
Drilling rod diameter.(mm) |
Φ42 |
Head angle range |
360 |
Movable cylinder stroke (mm) |
300 |
Spindle speed( r/min) |
144 264 590 1083 |
Spindle hole diameter( mm) |
Φ54 |
Spindle output torque max(N.M) |
800 |
Spindle stroke(mm) |
370 |
Lifting power max( KN) |
30 |
Driving force max(KN) |
23 |
Lifting speed( m/s) |
0.36 0.7 1.49 2.9 |
Lifting capacity(single) max(KN) |
10 |
Steel wire rope diameter (mm) |
11 |
Mode of chuck |
Hand lever chuck |
Weight(power unit excepted)(Kg) |
550 |
Overall dimensions(mm) |
1200*650*1300 |
Diesel engine model |
Zs1100 ( 12.1KW) |
Electromotor model |
Y160M-4 ( 11KW)
|
Application of water well drilling rig and machine :
1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Coal mining exploration, Ore exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
For water well, you also need drill tools as flow:
|
|
|
|
| Max. Depth:1000m | Max. Depth:1500m | Max. Depth:200m | Max. Depth:100m |
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
