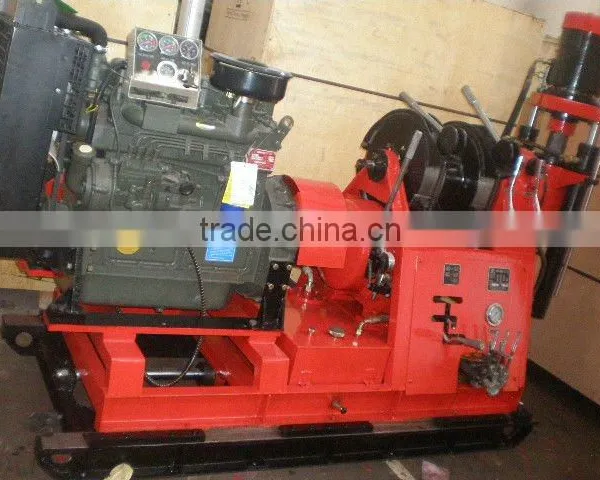

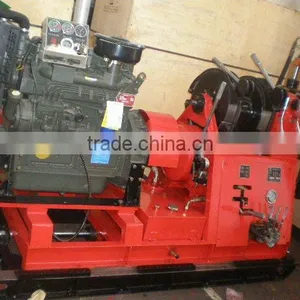

HGY-300 Mining Exploration Drilling Rig
This machine is widely used in construction work such as exploration, railway, highway, port, bridge, hydropower, tunnel, water well, building, engineering geological prospecting, heavy caliber drilled pile and minor-caliber diamond core drilling.
Features of HGY-300 Mining Exploration Drilling Rig
1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.
Technological Data of HGY-300 Mining Exploration Drilling Rig
Model |
Mining Exploration Drilling Rig(HGY-300) |
Drilling depth( m) |
300 |
Drilling rod diameter.(mm) |
Φ50 |
Head angle range |
0~360 |
Movable cylinder stroke (mm) |
400 |
Spindle speed( r/min) |
Positive rotation rate:34 67 115 189 238 156 307 531 868 1094 Reverse rotation rate: 38 173 |
Spindle hole diameter( mm) |
Φ65 |
Spindle output torque max(N.M) |
3100 |
Spindle stroke(mm) |
530 |
Lifting power max( KN) |
60 |
Driving force max(KN) |
40 |
Lifting speed( m/s) |
0.30 0.59 1.01 1.66 2.09 |
Lifting capacity(single) max(KN) |
30 |
Steel wire rope diameter (mm) |
13 |
Mode of chuck |
Full-hydraulic chuck or ball-type chuck |
Weight(power unit excepted)(Kg) |
1200 |
Overall dimensions(mm) |
2000*900*1600 |
Diesel engine model |
495D( 26.5KW) |
Electromotor model |
Y180L-4( 22KW) |
Drill tools for Mining exploration wireline
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
|
|
|
|
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
